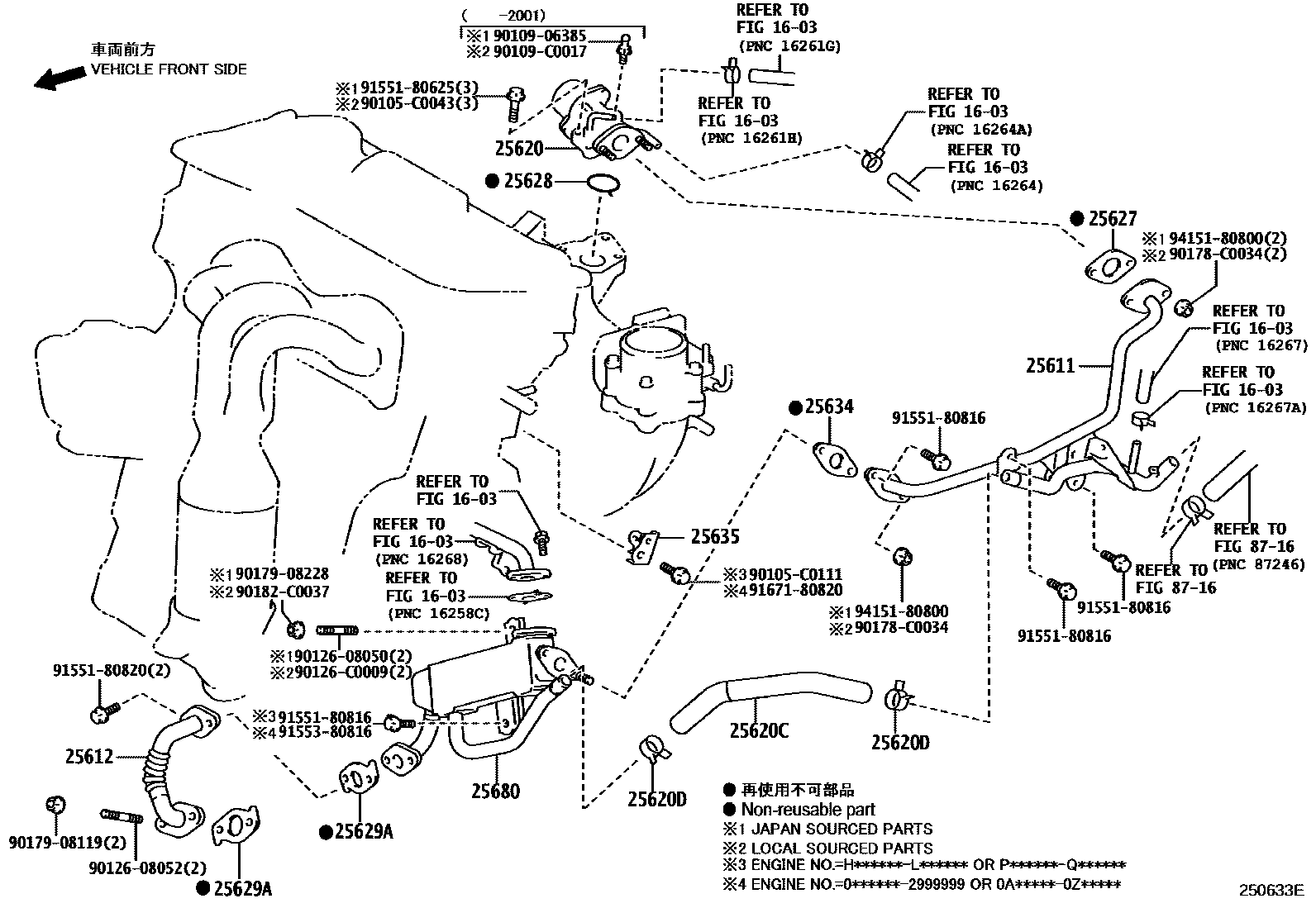

Toyota ALPHARD/VELLFIRE/HV — EXHAUST GAS RECIRCULATION SYSTEM
1603RADIATOR & WATER OUTLET
25611CONNECTOR, EGR PIPE
*524
*524
25612PIPE, EGR, NO.2
*347
25620VALVE ASSY, EGR
*347
25620CHOSE, WATER BY-PASS, NO.1
*347
25620DCLIP(FOR WATER BY-PASS HOSE, NO.1)
25627GASKET, EGR VALVE
*524
25628GASKET, EGR INLET
25629AGASKET, EGR PIPE, NO.2
*524
*524
25634GASKET, EGR PIPE
*347
*524
25635BRACKET, EGR PIPE, NO.1
*347
25680COOLER ASSY, EGR
*347
8716HEATING & AIR CONDITIONING - WATER PIPING
90105C0043
main90105-C0043
90105C0111
main90105-C0111
9010906385
main90109-06385
90109C0017
main90109-C0017
9012608050
main90126-08050
9012608052
main90126-08052
90126C0009
main90126-C0009
90178C0034
main90178-C0034
9017908119
main90179-08119
9017908228
main90179-08228
90182C0037
main90182-C0037
9155180625
main91551-80625
9155180816
main91551-80816
9155180820
main91551-80820
9155380816
main91553-80816
9167180820
main91671-80820
9415180800
main94151-80800
30 parts on this diagram · 2 diagrams in section
EXHAUST GAS RECIRCULATION SYSTEM for Toyota ALPHARD/VELLFIRE/HV
This section contains 34 genuine Toyota parts for the EXHAUST GAS RECIRCULATION SYSTEM system of the Toyota ALPHARD/VELLFIRE/HV. Key components include: RADIATOR & WATER OUTLET, CONNECTOR, EGR PIPE, PIPE, EGR, NO.2, PIPE, EGR, NO.3, VALVE ASSY, EGR.
