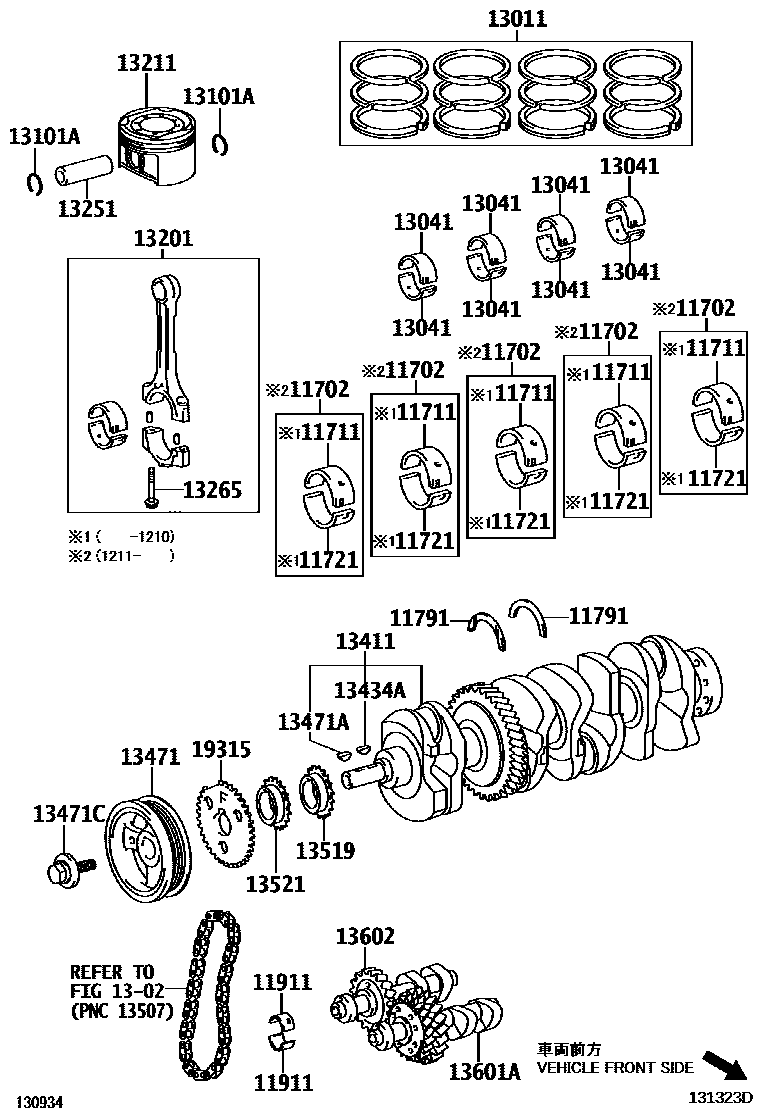

11702BEARING SET, CRANKSHAFT

main11701-28010-01×4i201211

2AZ-FE CHINA,MARK 1,*195:REFER R/M; MARK 1,*195:REFER R/M; MARK 1,NO.2,3,4,5 REFER R/M

main11701-28010-02×4i201211

2AZ-FE CHINA,MARK 2,*195:REFER R/M; MARK 2,*195:REFER R/M; MARK 2,NO.2,3,4,5 REFER R/M

main11701-28010-03×4i201211

2AZ-FE CHINA,MARK 3,*195:REFER R/M; MARK 3,*195:REFER R/M; MARK 3,NO.2,3,4,5 REFER R/M

main11701-28010-04×5i201211

2AZ-FE CHINA,MARK 4,*195:REFER R/M; MARK 4,*195:REFER R/M; MARK 4,NO.2,3,4,5 REFER R/M

main11701-28020-01i201211

MARK 1,NO.1,REFER R/M

main11701-28020-02i201211

MARK 2,NO.1,REFER R/M

main11701-28020-03i201211

MARK 3,NO.1,REFER R/M

main11701-28020-04i201211

MARK 4,NO.1,REFER R/M

11711BEARING, CRANKSHAFT

main11071-0P030-01×2i200804-200906

MARK1,NO.2,(L):REFER R/M

main11071-0P030-02×2i200804-200906

MARK2,NO.2,(L):REFER R/M

main11071-0P030-03×2i200804-200906

MARK3,NO.2,(L):REFER R/M

main11071-0P030-04×2i200804-200906

MARK4,NO.2,(L):REFER R/M

main11071-0P030-05×2i200804-200906

MARK5,NO.2,(L):REFER R/M

main11071-31031-01×2i200804-200906

MARK1,NO.2,(J):REFER R/M

main11071-31031-02×2i200906-201110

MARK2,NO.2,REFER R/M

main11071-31031-03×2i200906-201110

MARK3,NO.2,REFER R/M

main11071-31031-04×2i200906-201110

MARK4,NO.2,REFER R/M

main11071-31031-05×2i201110-201501

MARK5,NO.2,REFER R/M

main11701-0P030-01×2i200804-200906

MARK1,NO.1,(L):REFER R/M

main11701-0P030-02×2i200804-200906

MARK2,NO.1,(L):REFER R/M

main11701-0P030-03×2i200804-200906

MARK3,NO.1,(L):REFER R/M

main11701-0P030-04×2i200804-200906

MARK4,NO.1,(L):REFER R/M

main11701-0P030-05×2i200804-200906

MARK5,NO.1,(L):REFER R/M

main11701-31061-01×2i200804-200902

MARK1,NO.1,(J):REFER R/M

main11701-31061-02×2i200804-200902

MARK2,NO.1,(J):REFER R/M

main11701-31061-03×2i200804-200902

MARK3,NO.1,(J):REFER R/M

main11701-31061-04×2i200804-200902

MARK4,NO.1,(J):REFER R/M

main11701-31061-05×2i200804-200902

MARK5,NO.1,(J):REFER R/M

main11701-31090-01×2i200902-200906

MARK 1,NO.1,(J):REFER R/M

main11701-31090-02×2i201110-201501

MARK 2,NO.1,REFER R/M

main11701-31090-03×2i200906-201110

MARK 3,NO.1,REFER R/M

main11701-31090-04×2i201110-201501

MARK 4,NO.1,REFER R/M

main11701-31090-05×2i200902-200906

MARK 5,NO.1,(J):REFER R/M

main11711-28021-01×4i201112-201210

MARK 1,NO.2,3,4,5 REFER R/M

main11711-28021-02×5i200906-201110

MARK 2,*195:REFER R/M

main11711-28021-03×4i201112-201210

MARK 3,NO.2,3,4,5 REFER R/M

main11711-28021-04×5i200906-201110

MARK 4,*195:REFER R/M

main11731-28020-01i201112-201210

MARK1,NO.1,REFER R/M

main11731-28020-02i201112-201210

MARK2,NO.1,REFER R/M

main11731-28020-03i201112-201210

MARK3,NO.1,REFER R/M

main11731-28020-04i201112-201210

MARK4,NO.1,REFER R/M

main11711-0H040-01×5i200906-200907

MARK1,*194:REFER R/M

main11711-0H040-02×5i200906-200907

MARK2,*194:REFER R/M

main11711-0H040-03×5i200906-200907

MARK3,*194:REFER R/M

main11711-0H040-04×5i200906-200907

MARK4,*194:REFER R/M

main11711-0H041-01×5i200907-201110

MARK 1,*194:REFER R/M

main11711-0H041-02×5i201110-201208

2AZ-FE CHINA,MARK 2,*194:REFER R/M

main11711-0H041-03×5i201110-201208

2AZ-FE CHINA,MARK 3,*194:REFER R/M

main11711-0H041-04×5i201110-201208

2AZ-FE CHINA,MARK 4,*194:REFER R/M

11721BEARING, CRANKSHAFT, NO.2

main11721-28021-01×5i201110-201210

MARK 1,*195:REFER R/M

main11721-28021-02×5i200906-201110

MARK 2,*195:REFER R/M

main11721-28021-03×5i200906-201110

MARK 3,*195:REFER R/M

main11721-28021-04×5i200906-201110

MARK 4,*195:REFER R/M

main11721-0H040-01×5i200906-200907

MARK1,*194:REFER R/M

main11721-0H040-02×5i200906-200907

MARK2,*194:REFER R/M

main11721-0H040-03×5i200906-200907

MARK3,*194:REFER R/M

main11721-0H040-04×5i200906-200907

MARK4,*194:REFER R/M

main11721-0H041-01×5i200907-201110

MARK 1,*194:REFER R/M

main11721-0H041-02×5i201110-201208

2AZ-FE CHINA,MARK 2,*194:REFER R/M

main11721-0H041-03×5i201110-201208

2AZ-FE CHINA,MARK 3,*194:REFER R/M

main11721-0H041-04×5i201110-201208

2AZ-FE CHINA,MARK 4,*194:REFER R/M

11791WASHER, CRANKSHAFT THRUST, UPPER

main11791-28020×2i201110

STD,*195; STD,2AZ-FE CHINA,*195

main11791-0H030×2i200906-201110

STD,*194

11911BEARING, BALANCESHAFT, NO.1

main11911-28011-01×8i200906-201110

MARK 1,*194:REFER R/M; MARK 1,*195:REFER R/M

main11911-28011-02×8i200906-201110

MARK 2,*194:REFER R/M; MARK 2,*195:REFER R/M

main11911-28011-03×8i200906-201110

MARK 3,*194:REFER R/M; MARK 3,*195:REFER R/M

13011RING SET, PISTON

main13011-28161i200912-201110

STD,*194; STD,*195

main13011-28260i201409-201501

STD,*195

main13011-31130i200804-200812

STD

main13011-31150i201110-201411

STD

main13011-31151i201412-201501

STD

main13011-28160supersedes 13011-28260i200906-200912

STD,*194; STD,*195

main13011-28240supersedes 13011-28260i201304-201308

STD,*195; STD,2AZ-FE CHINA,*195

main13011-28250supersedes 13011-28260i201308-201407

STD,*195; STD,2AZ-FE CHINA,*195

1302CAMSHAFT & VALVE

→ Go to FIG 13-02

13041BEARING, CONNECTING ROD

main13041-0P040-01×6i200804-200906

MARK1,(L):REFER R/M

main13041-0P040-02×6i200804-200906

MARK2,(L):REFER R/M

main13041-0P040-03×6i200804-200906

MARK3,(L):REFER R/M

main13041-0P040-04×6i200804-200906

MARK4,(L):REFER R/M

main13041-31070-01×6i201110-201501

MARK 1,REFER R/M

main13041-31070-02×6i200906-201110

MARK 2,REFER R/M

main13041-31070-03×6i200906-201110

MARK 3,REFER R/M

main13041-31070-04×6i200804-200906

MARK 4,(J):REFER R/M

main13281-28011-01×8i200906-201110

MARK 1,*195:REFER R/M

main13281-28011-02×8i200906-201110

MARK 2,*195:REFER R/M

main13281-28011-03×8i200906-201110

MARK 3,*195:REFER R/M

main13281-0H040-01×8i200906-200907

MARK1,*194:REFER R/M

main13281-0H040-02×8i200906-200907

MARK2,*194:REFER R/M

main13281-0H040-03×8i200906-200907

MARK3,*194:REFER R/M

main13281-0H041-01×8i201110-201208

2AZ-FE CHINA,MARK 1,*194:REFER R/M

main13281-0H041-02×8i200907-201110

MARK 2,*194:REFER R/M

main13281-0H041-03×8i201110-201208

2AZ-FE CHINA,MARK 3,*194:REFER R/M

13101PISTON SUB-ASSY, W/PIN

main13101-31091×6i200804-200906

STD

main13101-31092-A0×6i200906-201110

STD,MARK A,REFER REPAIR MANUAL

main13101-31092-B0×6i200906-201110

STD,MARK B,REFER REPAIR MANUAL

main13101-31092-C0×6i201110

STD,MARK C,REFER REPAIR MANUAL

13101ARING, HOLE SNAP(FOR PISTON PIN)

main90520-22025×8i200906-201110

*194; *195

13201ROD SUB-ASSY, CONNECTING

main13201-09791-A0×4i200908-201110

MARK A,*195,(L):REFER R/M

main13201-09791-B0×4i201110-201204

2AZ-FE CHINA,MARK B,*195,(L):REFER R/M; MARK B,*195,(L):REFER R/M

main13201-09791-C0×4i201110-201204

2AZ-FE CHINA,MARK C,*195,(L):REFER R/M; MARK C,*195,(L):REFER R/M

main13201-29686-A0×4i201110-201204

MARK A,*195,(J):REFER R/M

main13201-29686-B0×4i201110-201204

MARK B,*195,(J):REFER R/M

main13201-29686-C0×4i200906-201110

MARK C,*194,(J):REFER R/M; MARK C,*195,(J):REFER R/M

main13201-39135×6i200804-201005

main13201-39135-A0×6i201005-201110

MARK A

main13201-39135-B0×6i201005-201110

MARK B

main13201-39135-C0×6i201005-201110

MARK C

main13201-09781-A0×4supersedes 13201-09790-C0i201110-201208

2AZ-FE CHINA,MARK A,*194,(L):REFER R/M

main13201-09781-B0×4supersedes 13201-09790-C0i201110-201208

2AZ-FE CHINA,MARK B,*194,(L):REFER R/M

main13201-09781-C0×4supersedes 13201-09790-C0i200906-201110

MARK C,*194,(L):REFER R/M

main13201-09790-A0×4supersedes 13201-09790-C0i200906-200908

MARK A,*195,(L):REFER R/M; MARK A,*195:REFER R/M

main13201-09790-B0×4supersedes 13201-09790-C0i200906-200908

MARK B,*195,(L):REFER R/M; MARK B,*195:REFER R/M

main13201-09790-C0×4i200906-200908

MARK C,*195,(L):REFER R/M; MARK C,*195:REFER R/M

13211PISTON

main13211-28112-A0×4i200911-201110

MARK A,*195:REFER R/M

main13211-28112-B0×4i200911-201110

MARK B,*195:REFER R/M

main13211-28112-C0×4i201110-201501

MARK C,*195:REFER R/M

main13211-28121-A0×4i201112-201409

MARK A,MARK 28120,*RRM

main13211-28121-B0×4i201112-201409

MARK B,MARK 28120,*RRM

main13211-28121-C0×4i201112-201409

MARK C,MARK 28120,*RRM

main13211-28141-A0×4i201407-201501

2AZ-FE CHINA,MARK A,*195:REFER R/M; MARK A,*195:REFER R/M

main13211-28141-B0×4i201407-201501

2AZ-FE CHINA,MARK B,*195:REFER R/M; MARK B,*195:REFER R/M

main13211-28141-C0×4i201407-201501

2AZ-FE CHINA,MARK C,*195:REFER R/M; MARK C,*195:REFER R/M

main13211-28150-A0×4i201409-201501

MARK A,MARK 28150,*RRM

main13211-28150-B0×4i201409-201501

MARK B,MARK 28150,*RRM

main13211-28150-C0×4i201409-201501

MARK C,MARK 28150,*RRM

main13211-0H051-A0×4supersedes 13211-28140-C0i200906-200911

MARK A,*194:REFER R/M

main13211-0H051-B0×4supersedes 13211-28140-C0i200906-200911

MARK B,*194:REFER R/M

main13211-0H051-C0×4supersedes 13211-28140-C0i200906-200911

MARK C,*194:REFER R/M

main13211-0H052-A0×4supersedes 13211-28140-C0i200911-201110

MARK A,*194:REFER R/M

main13211-0H052-B0×4supersedes 13211-28140-C0i200911-201110

MARK B,*194:REFER R/M

main13211-0H052-C0×4supersedes 13211-28140-C0i200911-201110

MARK C,*194:REFER R/M

main13211-28111-A0×4supersedes 13211-28140-C0i200906-200911

MARK A,*195:REFER R/M

main13211-28111-B0×4supersedes 13211-28140-C0i200906-200911

MARK B,*195:REFER R/M

main13211-28111-C0×4supersedes 13211-28140-C0i200906-200911

MARK C,*195:REFER R/M

main13211-28140-A0×4supersedes 13211-28140-C0i201304-201406

2AZ-FE CHINA,MARK A,*195:REFER R/M; MARK A,*195:REFER R/M

main13211-28140-B0×4supersedes 13211-28140-C0i201304-201406

2AZ-FE CHINA,MARK B,*195:REFER R/M; MARK B,*195:REFER R/M

main13211-28140-C0×4i201304-201406

2AZ-FE CHINA,MARK C,*195:REFER R/M; MARK C,*195:REFER R/M

13251PIN, PISTON

main13251-28020-A0×4i201110-201501

2AZ-FE CHINA,MARK A,*195:REFER R/M; MARK A,*195:REFER R/M

main13251-28020-B0×4i201112-201501

MARK B,REFER REPAIR MANUAL

main13251-28020-C0×4i200906-201110

MARK C,*194,(J):REFER R/M; MARK C,*195:REFER R/M

main13251-0H040-A0×4i201110-201208

2AZ-FE CHINA,MARK A,*194,(L):REFER R/M

main13251-0H040-B0×4i200910-201110

MARK B,*194,(L):REFER R/M

main13251-0H040-C0×4i201110-201208

2AZ-FE CHINA,MARK C,*194,(L):REFER R/M

13265BOLT, CONNECTING ROD

main13265-28010×8i200906-201110

*194; *195

13411CRANKSHAFT

main13401-0H010i201110-201204

(L),*195; 2AZ-FE CHINA,(L),*195

main13401-28010i200906-201110

(J),*194; (J),*195

main13401-31040i201110-201409

main13401-31041i201410-201501

main13401-0H020i200906-201110

(L),*194

13434AKEY(FOR OIL PUMP DRIVE SPLINE)

main95161-30416i200906-201110

*194; *195

13471PULLEY, CRANKSHAFT

main13470-28020i200906-201110

(J),*194; *195

main13470-28040i201112

main13470-31030i200804-201110

main13470-0H030i201110-201208

2AZ-FE CHINA,*194

13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)

main95161-30416i200906-201110

*194; *195

13471CBOLT(FOR CRANKSHAFT PULLEY SET)

main90119-14106i200906-201110

*195

main90119-16004i201110-201412

main90119-C0124i200906-201110

*194

13519GEAR, OIL PUMP DRIVE

main13519-28010i200906-201110

(J),*194; *195

main13519-0H050i200906-201110

(L),*194

13521GEAR OR SPROCKET, CRANKSHAFT TIMING

main13521-28030i200906-201110

(J),*194; *195

main13521-31041i201110

main13521-0H050i201110-201208

2AZ-FE CHINA,*194

13601ABALANCESHAFT SUB-ASSY, NO.1

main13601-28020i200906-201110

(J),*194; *195

main13601-28021i201402

*195; 2AZ-FE CHINA,*195

main13601-0H030i200906-201110

(L),*194

13602BALANCESHAFT SUB-ASSY, NO.2

main13602-28020i201110

*195; 2AZ-FE CHINA,*195

main13602-0H030i201110-201208

2AZ-FE CHINA,*194

19315PLATE, CRANK ANGLE SENSOR, NO.1

main19315-28010i200906-201110

*194; *195

Toyota ALPHARD/VELLFIRE/HV — CRANKSHAFT & PISTON

CRANKSHAFT & PISTON for Toyota ALPHARD/VELLFIRE/HV
