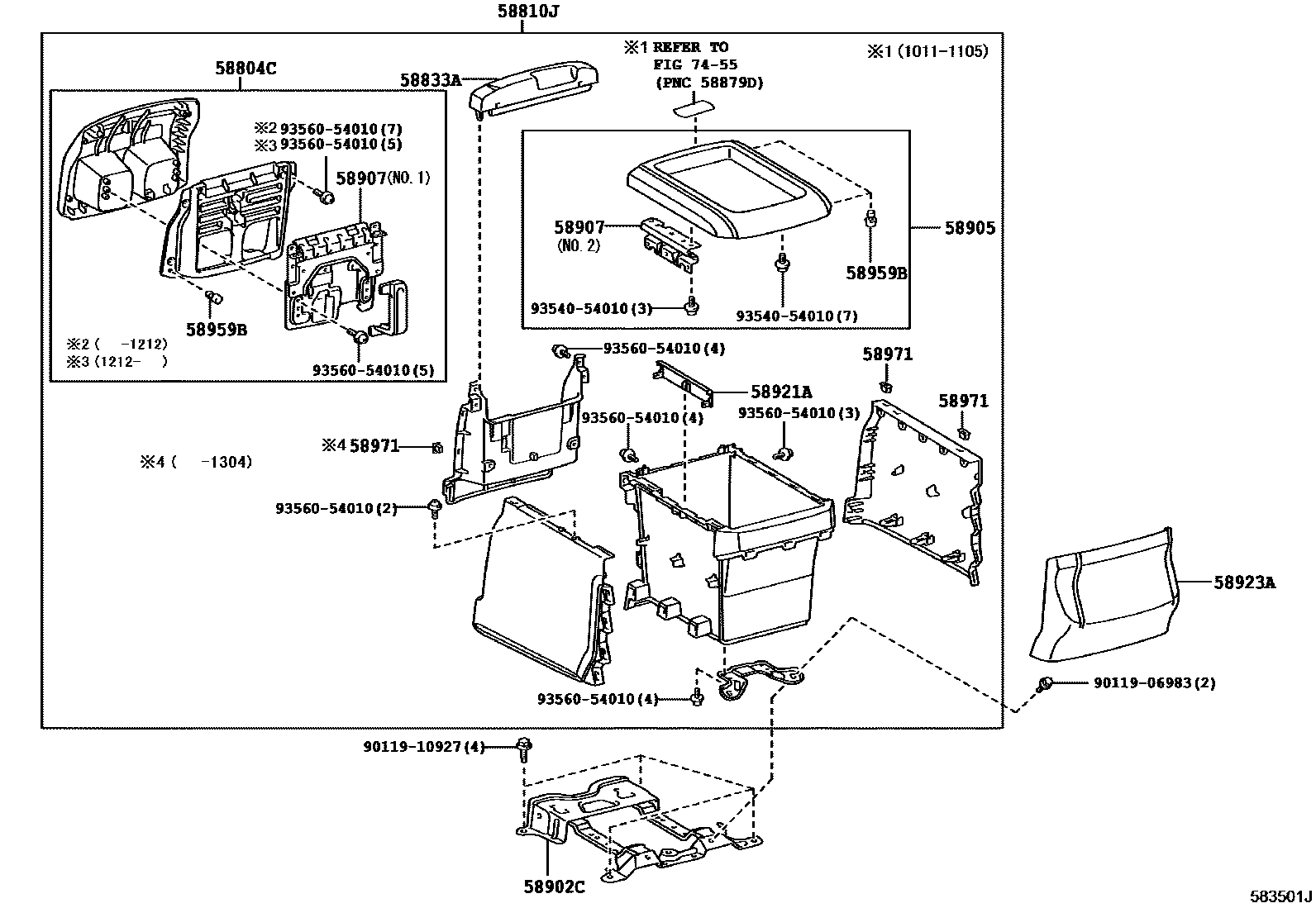

Toyota ALPHARD/VELLFIRE/HV — CONSOLE BOX & BRACKET

58804CINSERT SUB-ASSY, CONSOLE BOX, FRONT

main58804-58120-A0i201110-201501

SHELL,TRIM0#

main58804-58120-B0i200906-201110

DK.GRAY,TRIM1#

58810JBOX ASSY, CONSOLE

main58810-58090-A0supersedes 58810-58140-A0i200906-201110

SHELL,TRIM0#; THAILAND SPEC,SHELL,TRIM0#

main58810-58130-B0i200804-201004

DK.GRAY,TRIM1#

main58810-58140-A0i200810-201110

SHELL,TRIM0#

main58810-58140-B0i200906-201110

DK.GRAY,TRIM1#

main58810-58170-A0i201006-201110

SHELL,TRIM0#

main58810-58180-B0i201004-201110

DK.GRAY,TRIM1#

main58810-58200-A0i201112-201209

SHELL,TRIM0#

main58810-58230-A0supersedes 58810-58220-A0i201110-201501

"L EDITION"*(L) OR "L PACKAGE"*(L),SHELL,TRIM0#; SHELL,TRIM0#; THAILAND SPEC,SHELL,TRIM0#

main58810-58230-B0i201110-201501

DK.GRAY,TRIM1#

main58810-58240-A0i201209-201501

SHELL,TRIM0#

main58810-58220-A0i201110-201209

SHELL,TRIM0#

58833ACOVER, CONSOLE, UPPER

main58833-58060-A0i201110-201501

SHELL,TRIM0#

main58833-58060-B0i201110-201501

DK.GRAY,TRIM1#

58902CBRACKET SUB-ASSY, CONSOLE BOX MOUNTING

main58902-58030i201110

main58902-58040i201110

58905DOOR SUB-ASSY, CONSOLE COMPARTMENT

main58905-58100-A0i200810-201110

SHELL,TRIM0#

main58905-58100-B0i201110-201501

DK.GRAY,TRIM1#

58907HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58907-58050i200810-201110

NO.1

main58907-58051i201212-201501

NO.1

main58907-58060i200810-201110

NO.2

58921APANEL, REAR CONSOLE, UPPER

main58921-58030-A0i200810-200906

SHELL,TRIM0#

main58921-58030-B0i200906-201110

DK.GRAY,TRIM1#

58923APANEL, CONSOLE REAR END

main58923-58060-A0i200810-201110

SHELL,TRIM0#

main58923-58060-B0i200906-201110

DK.GRAY,TRIM1#

main58923-58090-A0supersedes 58923-58140-A0i200906-201110

SHELL,TRIM0#; THAILAND SPEC,SHELL,TRIM0#

main58923-58090-B0i200804-201110

DK.GRAY,TRIM1#

main58923-58130-A0i201110-201501

"PREMIUM SEAT PACKAGE/EDEITION"*(P),SHELL,TRIM0#; SHELL,TRIM0#

main58923-58140-B0i201110-201501

DK.GRAY,TRIM1#

main58923-58150-A0i201110-201501

"PREMIUM SEAT PACKAGE/EDEITION"*(P),SHELL,TRIM0#; SHELL,TRIM0#; THAILAND SPEC,SHELL,TRIM0#

main58923-58150-B0i201110-201501

DK.GRAY,TRIM1#

58959BCUSHION, CONSOLE COMPARTMENT DOOR

main58959-60060×4i200810-200906

58971LOCK, CONSOLE COMPARTMENT DOOR

main58971-26010×3i200810-200906

main58971-58060×3i201011-201110

7455CAUTION PLATE

→ Go to FIG 74-55

9011906983

main90119-06983

9011910927

main90119-10927

9354054010

main93540-54010

9356054010

main93560-54010

15 parts on this diagram · 4 diagrams in section

CONSOLE BOX & BRACKET for Toyota ALPHARD/VELLFIRE/HV

This section contains 54 genuine Toyota parts for the CONSOLE BOX & BRACKET system of the Toyota ALPHARD/VELLFIRE/HV. Key components include: BASE, SWITCH, COVER, SPARE SWITCH HOLE, SUPPORT, INSTRUMENT PANEL CUP HOLDER, NO.1.
