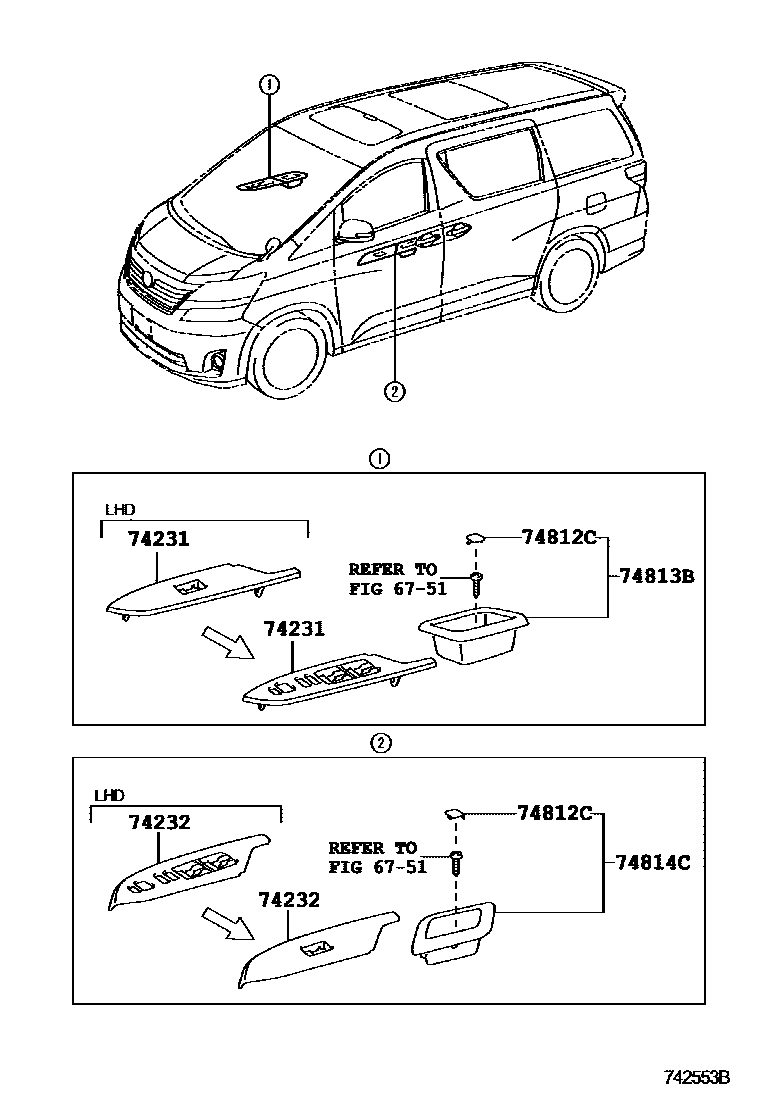

Toyota ALPHARD/VELLFIRE/HV — ARMREST & VISOR

6751FRONT DOOR PANEL & GLASS

→ Go to FIG 67-51

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-58030-E0i200810-201012

DK. BROWN,TRIM0#

main74231-58080i200804-201004

main74231-58120supersedes 74231-58200i200804-201110

main74231-58170i201006-201110

main74231-58190i201004-201110

main74231-58230i201110-201501

"L EDITION"*(L) OR "L PACKAGE"*(L)&MOON ROOF-WITH(TWIN); THAILAND SPEC&MOON ROOF-WITH(TWIN)

main74231-58250i201110-201501

main74231-58040-B0supersedes 74231-58031-B0i200906-201012

MOON ROOF-WITH(TWIN),DK.GRAY,TRIM1#

main74231-58040-E0supersedes 74231-58031-E0i200906-201012

MOON ROOF-WITH(TWIN),DK. BROWN,TRIM0#

main74231-58041-B0supersedes 74231-58031-B0i201110-201501

MOON ROOF-WITH(TWIN),DK.GRAY,TRIM1#

main74231-58041-E0supersedes 74231-58031-E0i201101-201110

MOON ROOF-WITH(TWIN),DK. BROWN,TRIM0#

main74231-58220supersedes 74231-58200i201110-201501

MOON ROOF-WITH(TWIN)

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-58020-B0i200906-201012

DK.GRAY,TRIM1#

main74232-58020-E0i200810-200906

DK. BROWN,TRIM0#

main74232-58021-B0i201101-201110

DK.GRAY,TRIM1#

main74232-58021-E0i201110-201501

DK. BROWN,TRIM0#

main74232-58030i200804-201004

main74232-58040i200906-201110

THAILAND SPEC&MOON ROOF-WITH(TWIN)

main74232-58080i201004-201110

main74232-58110supersedes 74232-58100i201110-201501

"L EDITION"*(L) OR "L PACKAGE"*(L)&MOON ROOF-WITH(TWIN); THAILAND SPEC&MOON ROOF-WITH(TWIN)

main74232-58140i201110-201501

main74232-58060supersedes 74232-58070i201006-201110

PHILIPPINES SPEC&&MOON ROOF-WITHOUT; TAIWAN SPEC&&MOON ROOF-WITHOUT

main74232-58070supersedes 74232-58060i201006-201110

MOON ROOF-WITH(TWIN)

main74232-58150i201209-201501

RUSSIA SPEC

74812CCOVER, DOOR PULL HANDLE

main74812-58010-B0×2supersedes 74812-58010-E0i201110-201501

DK.GRAY,TRIM0#; DK.GRAY,TRIM0#,1#; DK.GRAY,TRIM1#; THAILAND SPEC,DK.GRAY,TRIM0#

74813BHANDLE, FRONT DOOR PULL, RH

main74813-58010i200810-200906

main74813-58010-B1i200906-201110

DK.GRAY,TRIM1#

main74813-58020-B0supersedes 74813-58010-E1i200804-201110

DK.GRAY,TRIM0#; DK.GRAY,TRIM1#

main74813-58030-B0i201006-201110

DK.GRAY,TRIM0#

74814CHANDLE, FRONT DOOR PULL, LH

main74814-58010i200810-200906

main74814-58010-B1i200906-201110

DK.GRAY,TRIM1#

main74814-58020-B0supersedes 74814-58010-E1i200804-201110

DK.GRAY,TRIM0#; DK.GRAY,TRIM1#

main74814-58030-B0i201006-201110

DK.GRAY,TRIM0#

6 parts on this diagram · 2 diagrams in section

ARMREST & VISOR for Toyota ALPHARD/VELLFIRE/HV

This section contains 23 genuine Toyota parts for the ARMREST & VISOR system of the Toyota ALPHARD/VELLFIRE/HV. Key components include: FRONT DOOR PANEL & GLASS, PANEL, FRONT ARMREST BASE, UPPER RH, PANEL, FRONT ARMREST BASE, UPPER LH, VISOR ASSY, RH, COVER, VISOR BRACKET, RH.
