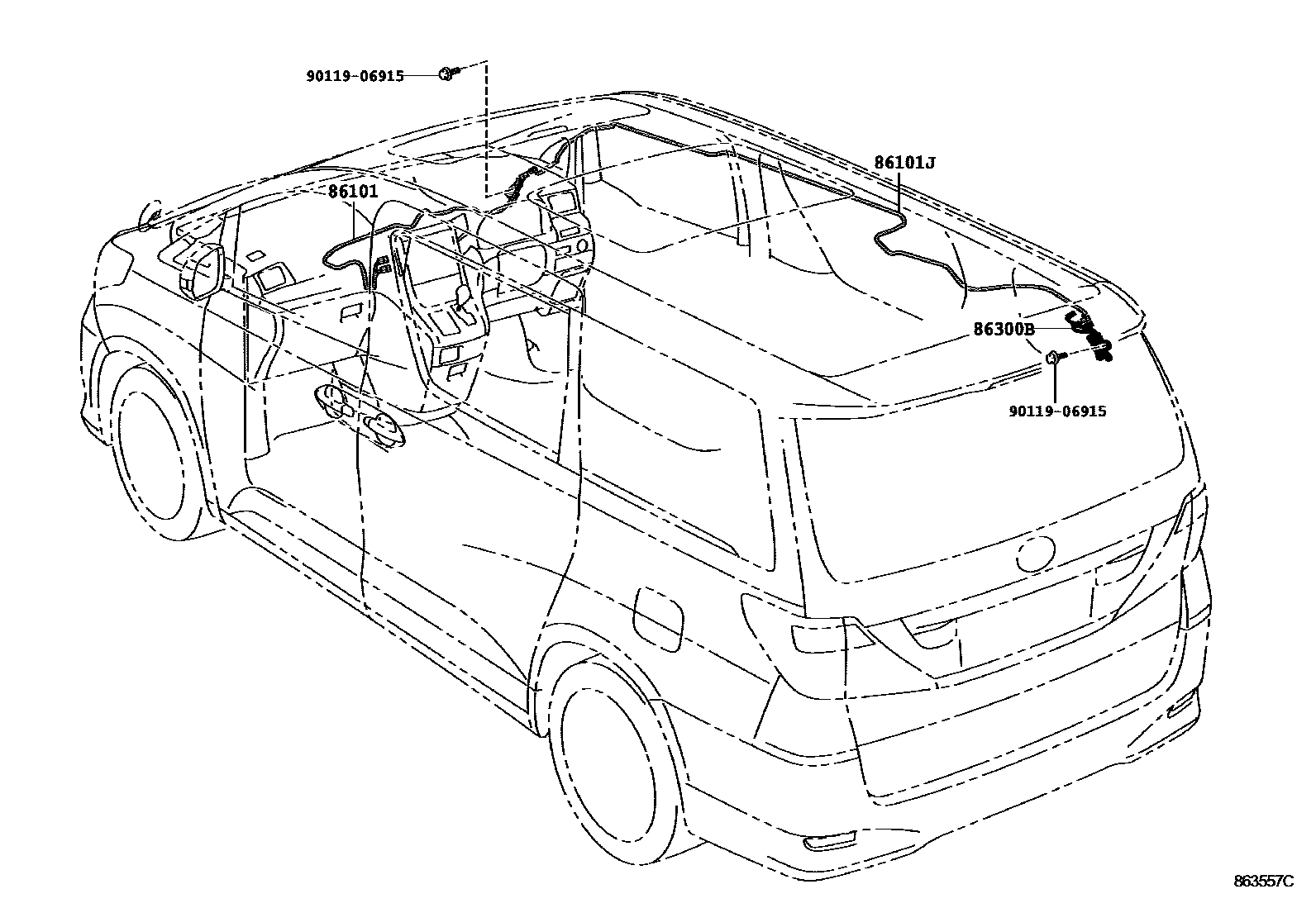

Toyota ALPHARD/VELLFIRE/HV — ANTENNA

86101CORD SUB-ASSY, ANTENNA

main86101-58070i200804-201110

main86101-58190i201209

BRUNEI SPEC&AUDIO-RADIO LESS 8SPEAKER; INDONESIA SPEC&AUDIO-RADIO LESS 8SPEAKER; THAILAND SPEC&AUDIO-RADIO LESS 8SPEAKER

main86101-58200i201209

AUDIO-AM/FM CD USB 8SPEAKER; AUDIO-AM/FM CD-CHANGER 8SPEAKER; AUDIO-RADIO LESS 8SPEAKER; TAIWAN SPEC

main86101-58210i201209

AUDIO-AVN 8SPEAKER

main86101-58240supersedes 86101-58270i201006-201110

main86101-58270i201110-201209

main86101-58280i201205-201209

main86101-58310i201209

86101JCORD SUB-ASSY, ANTENNA, NO.2

main86101-58080supersedes 86101-58120i200810-201110

main86101-58120supersedes 86101-58080i201110-201205

main86101-58140i201205-201209

main86101-58340supersedes 86101-58320i201209-201501

AUDIO-RADIO LESS 8SPEAKER; MOON ROOF-WITH(TWIN); RUSSIA SPEC&"PREMIUM SEAT PACKAGE/EDEITION"*(P)

main86101-58350i201209-201501

main86101-58250supersedes 86101-58260i201006-201110

MOON ROOF-WITHOUT

main86101-58260supersedes 86101-58250i201110-201205

MOON ROOF-WITH(TWIN)

main86101-58320i201209-201501

RUSSIA SPEC

86300BANTENNA ASSY, AMPLIFIER, NO.1

main86300-58060i200804-201110

main86300-58080i201209

9011906915

main90119-06915

4 parts on this diagram · 2 diagrams in section

ANTENNA for Toyota ALPHARD/VELLFIRE/HV

This section contains 4 genuine Toyota parts for the ANTENNA system of the Toyota ALPHARD/VELLFIRE/HV. Key components include: CORD SUB-ASSY, ANTENNA, CORD SUB-ASSY, ANTENNA, NO.2, ANTENNA ASSY, AMPLIFIER, NO.1.
