Toyota ALPHARD/VELLFIRE/HV — ABS & VSC

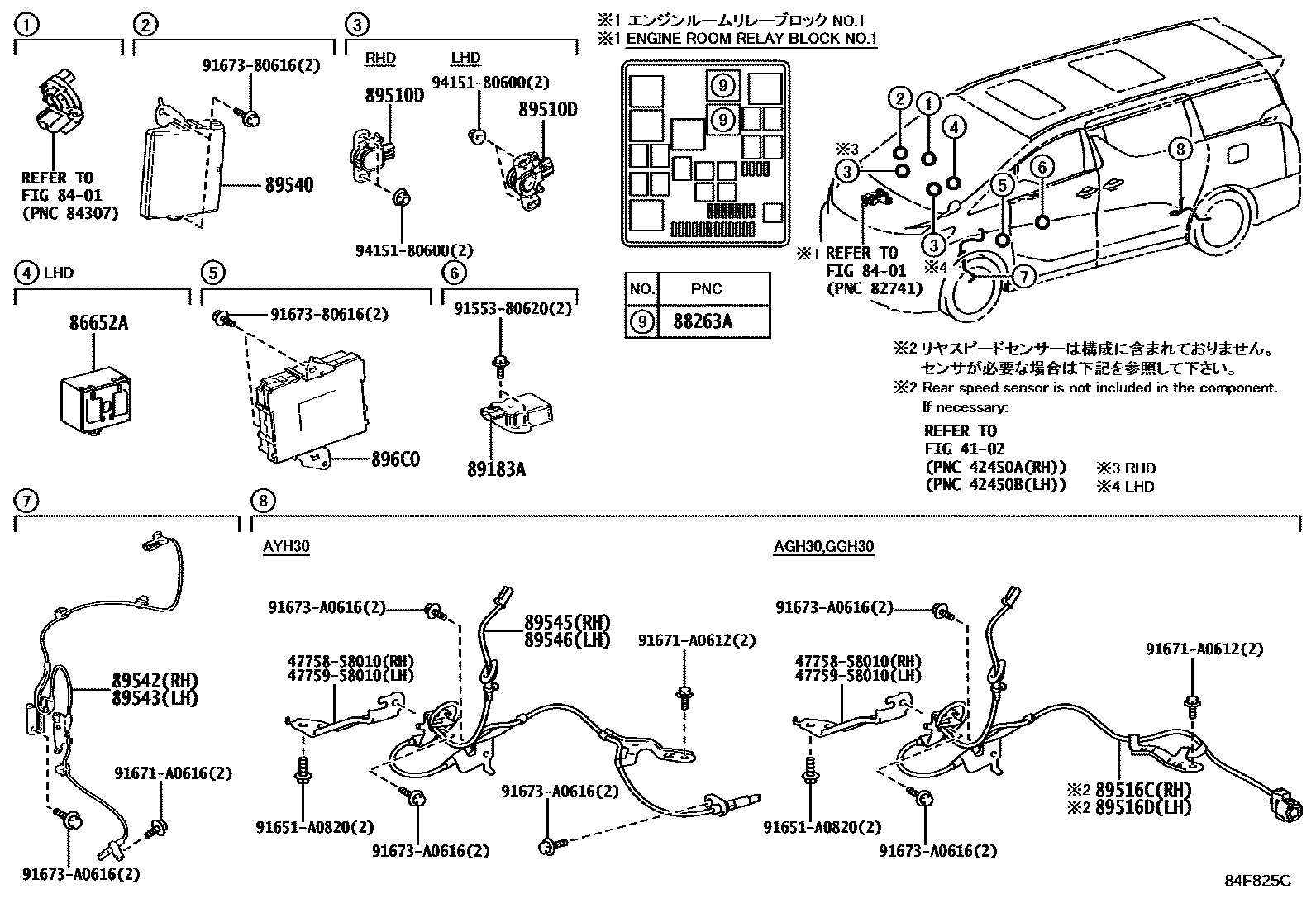

Parts diagram

4102REAR AXLE SHAFT & HUB

→ Go to FIG 41-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

86652ABUZZER ASSY, SKID CONTROL

main86652-50010i202001

88263ARELAY, SKID CONTROL

main88263-21010×2i201501-201801

89183ASENSOR, YAWRATE

main89183-48020i201501-201801

89510DSENSOR ASSY, BRAKE PEDAL STROKE

main89510-33020i201905-202001

main89510-33030i202001

89516CWIRE, SKID CONTROL SENSOR, RH

main89516-58060i201501-201801

89516DWIRE, SKID CONTROL SENSOR, LH

main89516-58070i201501-201801

89540COMPUTER ASSY, SKID CONTROL

main89540-58070i201501-201801

main89540-58080i201801-202001

main89540-58090i201905-202001

main89540-58120i202001-202105

main89540-58121i202105

main89540-58130i202001-202105

main89540-58131i202105-202111

main89540-58132i202111

main89540-58140i202008-202105

TAIWAN SPEC

main89540-58141i202105

TAIWAN SPEC

89542SENSOR, SPEED, FRONT RH

main89542-58020i201501-201801

89543SENSOR, SPEED, FRONT LH

main89543-58020i201801-201907

89545SENSOR, SPEED, REAR RH

main89545-58040i201501-201801

89546SENSOR, SPEED, REAR LH

main89546-58030i201501-201801

896C0SUPPLY ASSY, BRAKE CONTROL POWER W/BRACKET

main896C0-58010i201501-201801

4775858010BRACKET, WIRE CLAMP, RH NO.1

main47758-58010

4775958010BRACKET, WIRE CLAMP, LH NO.1

main47759-58010

9155380620

main91553-80620

91651A0820

main91651-A0820

91671A0612

main91671-A0612

91671A0616

main91671-A0616

9167380616

main91673-80616

91673A0616

main91673-A0616

9415180600

main94151-80600

23 parts on this diagram · 1 diagram in section

ABS & VSC for Toyota ALPHARD/VELLFIRE/HV

This section contains 23 genuine Toyota parts for the ABS & VSC system of the Toyota ALPHARD/VELLFIRE/HV. Key components include: REAR AXLE SHAFT & HUB, SWITCH & RELAY & COMPUTER, BUZZER ASSY, SKID CONTROL, RELAY, SKID CONTROL, SENSOR, YAWRATE.
