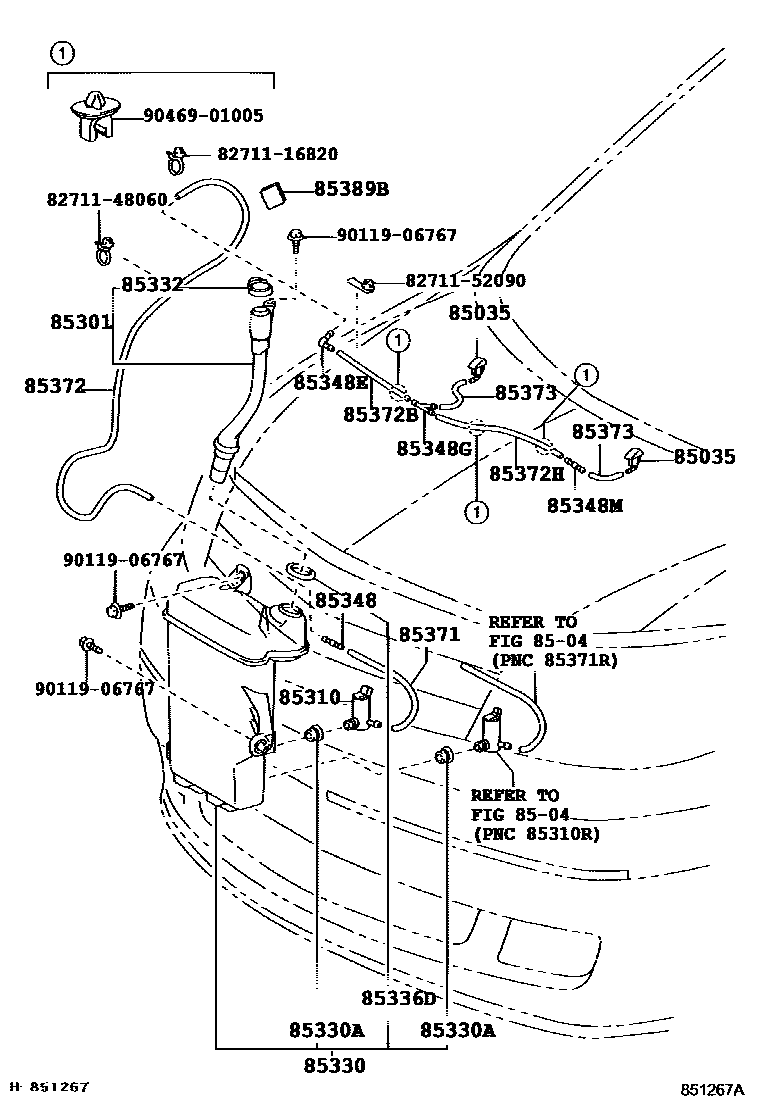

Toyota ALPHARD HV — WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85381-58020-A0×2i200307-200804

WHITE PM.,042

main85381-58020-A1×2i200706-200804

WHITE PEARL CS.,070

main85381-58020-B0×2i200307-200804

SILVER ME.,1C0

main85381-58020-B3×2i200504-200804

SILVER ME.,1F7

main85381-58020-C0×2i200307-200804

BLACK MC.,209

main85381-58020-G1×2i200504-200804

LT.OLIVE M.M.,6T1

main85381-58020-J0×2i200307-200804

PALE BLUE M.M.,8R0

main85381-58020-K0×2i200307-200804

LT.PURPLE ME.,942

8504REAR WASHER

→ Go to FIG 85-04

85301INLET SUB-ASSY, WASHER

main85301-58010i200307

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-10280i200307

85330JAR ASSY, WINDSHIELD WASHER

main85315-58010i200307

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089×2i200307

85332CAP, WINDSHIELD WASHER JAR

main85316-16070i200307-200804

85336DPACKING, WINDSHIELD WASHER JAR

main85336-30160i200307

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85349-89122i200307-200804

85348EJOINT, WINDSHIELD WASHER ELBOW, NO.2

main85355-20200i200307

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85348-12250i200307

85348MJOINT, WINDSHIELD WASHER HOSE, NO.3

main85349-89122i200307-200804

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-33080i200307-200804

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33299i200307-200804

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90446-07001i200307-200804

85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3

main90099-59024i200307

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33080×2i200307

85389BPROTECTOR, WINDSHIELD WASHER

main85389-28130i200307

8271116820WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-16820

8271148060WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-48060

8271152090WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-52090

9011906767

main90119-06767

9046901005

main90469-01005

23 parts on this diagram · 1 diagram in section

WINDSHIELD WASHER for Toyota ALPHARD HV

This section contains 23 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota ALPHARD HV. Key components include: NOZZLE SUB-ASSY, WASHER, REAR WASHER, INLET SUB-ASSY, WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER, JAR ASSY, WINDSHIELD WASHER.
