Toyota ALPHARD HV — WATER PUMP

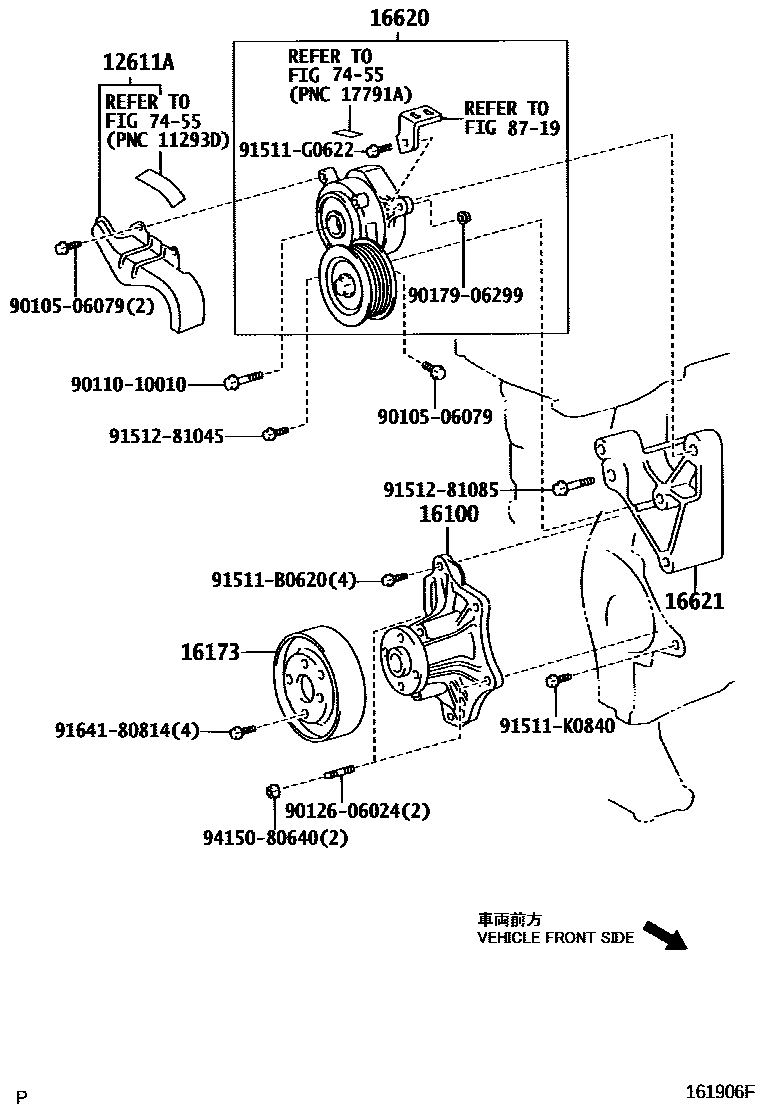

Parts diagram

12611ACOVER, ENGINE, NO.1

main12601-28060i200307

16100PUMP ASSY, ENGINE WATER

main16100-28050i200307-200701

main16100-28051i200701

16173PULLEY, WATER PUMP

main16173-28030i200307

16620TENSIONER ASSY, V-RIBBED BELT

main16620-28030i200307-200701

main16620-28031i200701

16621BRACKET, V-RIBBED BELT TENSIONER

main16621-28010i200307

7455CAUTION PLATE

→ Go to FIG 74-55

8719HEATING & AIR CONDITIONING - COMPRESSOR

→ Go to FIG 87-19

9010506079

main90105-06079

9011010010

main90110-10010

9012606024

main90126-06024

9017906299

main90179-06299

91511B0620

main91511-B0620

91511G0622

main91511-G0622

91511K0840

main91511-K0840

9151281045

main91512-81045

9151281085

main91512-81085

9164180814

main91641-80814

9415080640

main94150-80640

18 parts on this diagram · 1 diagram in section

WATER PUMP for Toyota ALPHARD HV

This section contains 18 genuine Toyota parts for the WATER PUMP system of the Toyota ALPHARD HV. Key components include: COVER, ENGINE, NO.1, PUMP ASSY, ENGINE WATER, PULLEY, WATER PUMP, TENSIONER ASSY, V-RIBBED BELT, BRACKET, V-RIBBED BELT TENSIONER.
