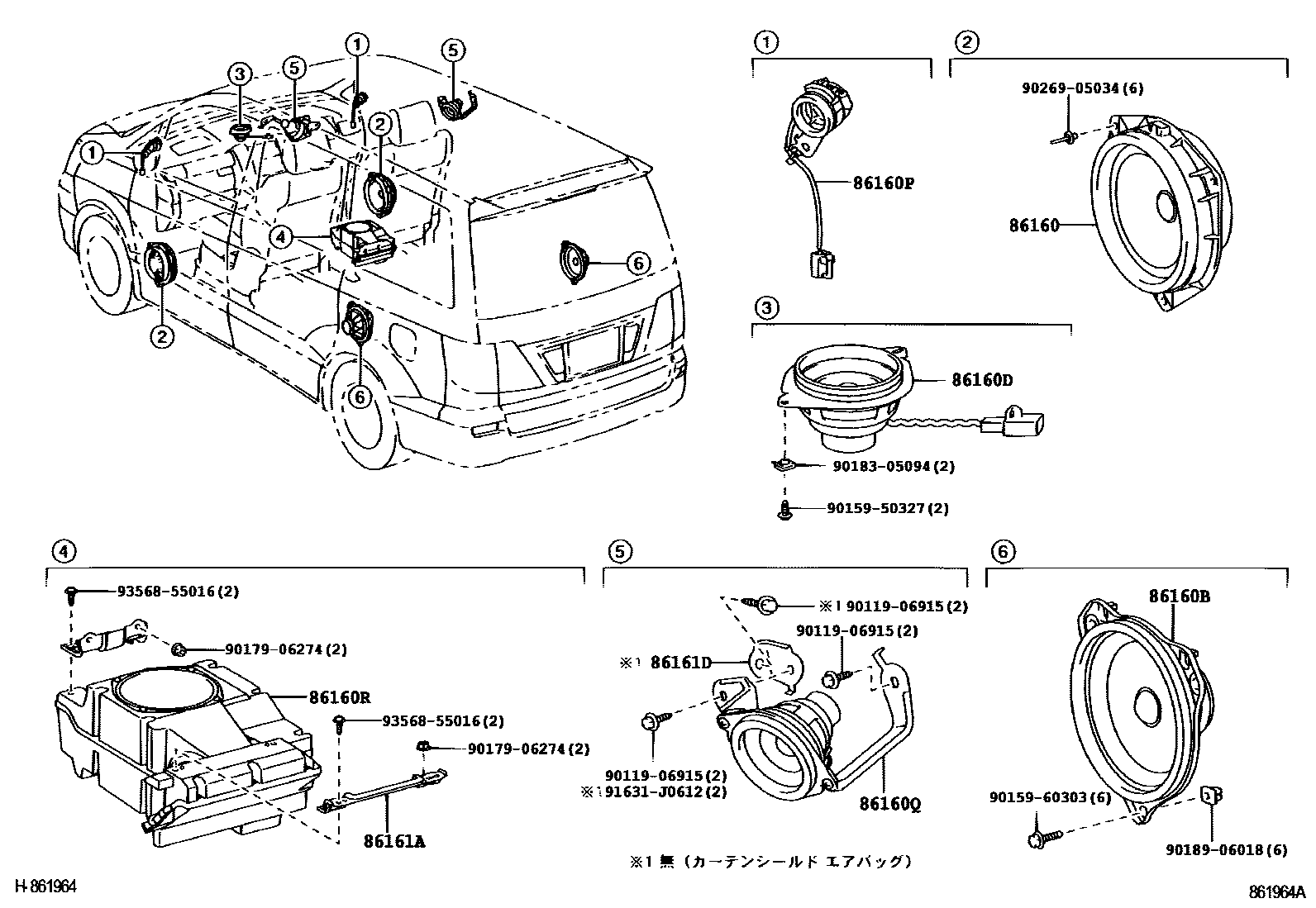

Toyota ALPHARD HV — SPEAKER
86160SPEAKER ASSY, FRONT NO.1
86160BSPEAKER ASSY, REAR
86160DSPEAKER ASSY, STEREO COMPONENT, FRONT
86160PSPEAKER ASSY, FRONT NO.2
86160QSPEAKER ASSY, ROOF
86160RSPEAKER ASSY, STEREO COMPONENT
86161DBRACKET, SPEAKER MOUNTING, NO.1
9011906915
main90119-06915
9015950327
main90159-50327
9015960303
main90159-60303
9017906274
main90179-06274
9018305094
main90183-05094
9018906018
main90189-06018
9026905034
main90269-05034
91631J0612
main91631-J0612
9356855016
main93568-55016
17 parts on this diagram · 1 diagram in section
SPEAKER for Toyota ALPHARD HV
This section contains 17 genuine Toyota parts for the SPEAKER system of the Toyota ALPHARD HV. Key components include: SPEAKER ASSY, FRONT NO.1, SPEAKER ASSY, REAR, SPEAKER ASSY, STEREO COMPONENT, FRONT, SPEAKER ASSY, FRONT NO.2, SPEAKER ASSY, ROOF.
