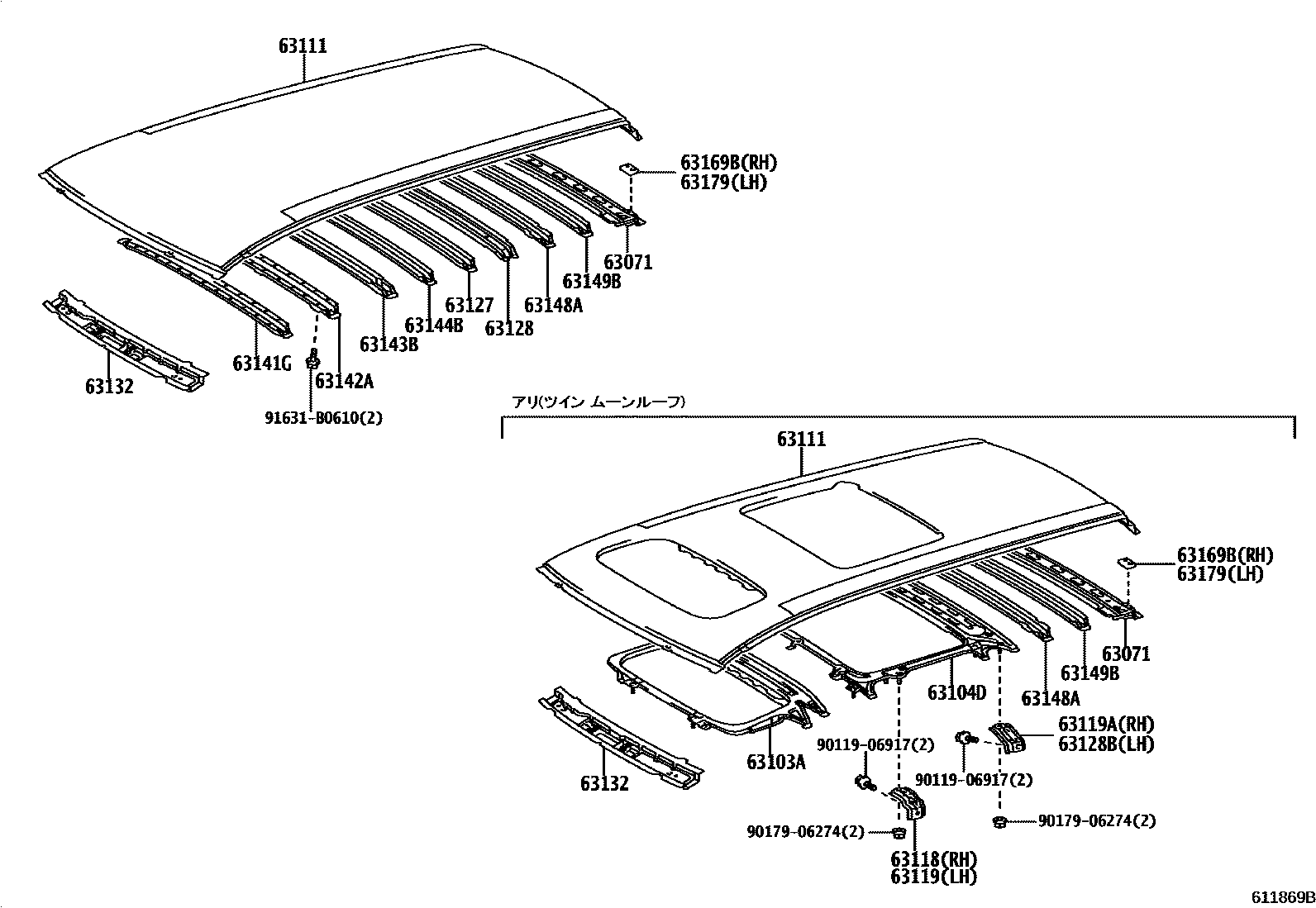

Toyota ALPHARD HV — ROOF PANEL & BACK PANEL

0001 1�-� ���� 0002 1��� �-��-�

63071FRAME SUB-ASSY, BACK DOOR OPENING, UPPER

main63071-58010iATH10200307

63103AREINFORCEMENT SUB-ASSY, ROOF PANEL

main63103-58010iATH10200307-200804

63104DREINFORCEMENT SUB-ASSY, ROOF PANEL, NO.2

main63104-58010iATH10200307-200804

63111PANEL, ROOF

main63111-58020supersedes 63111-58010iATH10200307-200804

63118SUPPORT, ROOF PANEL, RH

main63118-58010iATH10200307

63119SUPPORT, ROOF PANEL, LH

main63118-58010iATH10200307

63119ASUPPORT, ROOF PANEL, REAR RH

main63118-58020iATH10200307

63127REINFORCEMENT, ROOF PANEL, NO.5

main63127-58010iATH10200307

63128REINFORCEMENT, ROOF PANEL, NO.6

main63128-58010iATH10200307

63128BSUPPORT, ROOF PANEL, REAR LH

main63118-58020iATH10200307

63132PANEL, WINDSHIELD HEADER, INNER

main63132-58010iATH10200307

63141GREINFORCEMENT, ROOF PANEL, NO.1

main63141-58010iATH10200307

63142AREINFORCEMENT, ROOF PANEL, NO.2

main63142-58010iATH10200307

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-58010iATH10200307

63144BREINFORCEMENT, ROOF PANEL, NO.4

main63144-58010iATH10200307

63148AREINFORCEMENT, ROOF PANEL, NO.7

main63148-58010iATH10200307

63149BREINFORCEMENT, ROOF PANEL, NO.1 REAR

main63149-58010iATH10200307

63169BPLATE, ROOF PANEL REINFORCEMENT, RH

main63169-58010iATH10200307

63179PLATE, ROOF PANEL REINFORCEMENT, LH

main63179-58010iATH10200307

9011906917

main90119-06917

9017906274

main90179-06274

91631B0610

main91631-B0610

22 parts on this diagram · 2 diagrams in section
