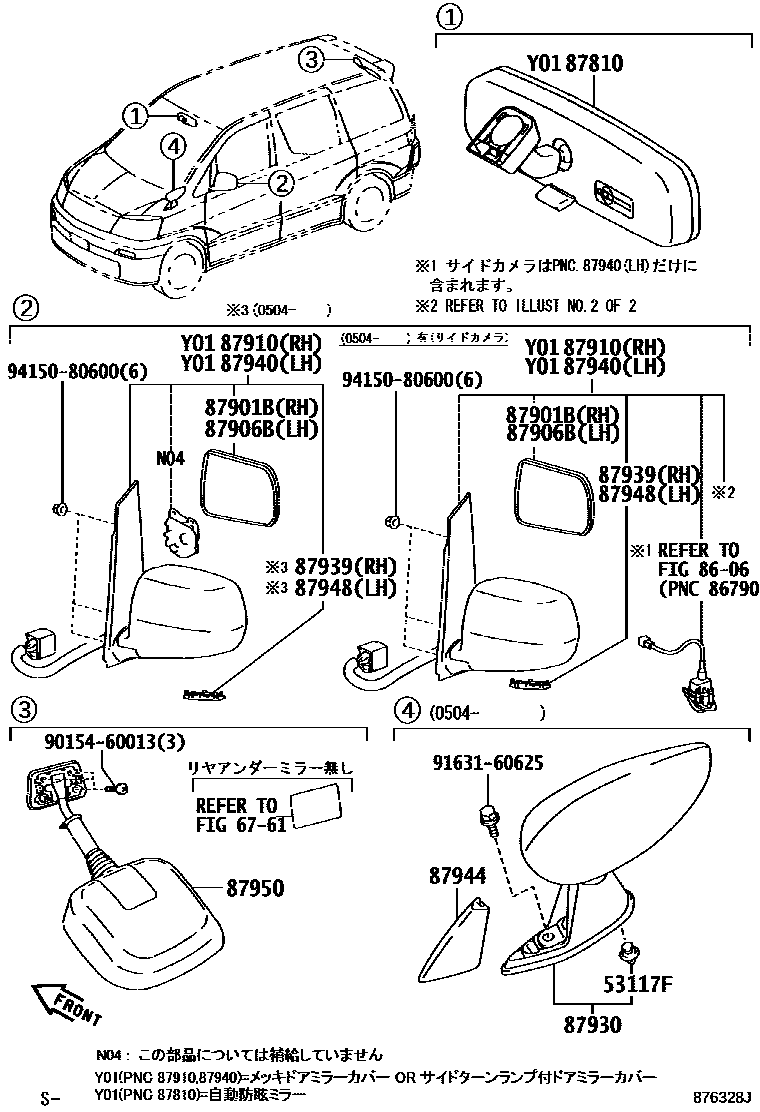

Toyota ALPHARD HV — MIRROR

53117FRETAINER, FRONT FENDER SIDE VIEW DEVICE

main53117-42010i200504-200804

6761BACK DOOR PANEL & GLASS

→ Go to FIG 67-61

8606CAMERA & REAR MONITOR DISPLAY

→ Go to FIG 86-06

87810MIRROR ASSY, INNER REAR VIEW

main87810-52040i200307-200612

main87810-52041i200701-200804

87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH

main87931-58021supersedes 87931-58011i200307-200504

main87931-58040supersedes 87931-58030i200504

87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH

main87961-58021supersedes 87961-58011i200307-200504

main87961-58040supersedes 87961-58030i200504

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-58021-A0supersedes 87910-58011-A0i200307-200504

main87910-58021-B0supersedes 87910-58011-B0i200307-200504

main87910-58021-C1supersedes 87910-58011-C1i200307-200504

main87910-58021-J0supersedes 87910-58011-J0i200307-200504

main87910-58021-K0supersedes 87910-58011-K0i200307-200504

main87910-58040-A0supersedes 87910-58030-A0i200504-200706

main87910-58040-A1supersedes 87910-58030-A1i200706-200804

main87910-58040-B2supersedes 87910-58030-B2i200504-200804

main87910-58040-C0supersedes 87910-58030-C0i200504-200804

main87910-58040-G0supersedes 87910-58030-G0i200504-200804

main87910-58040-J0supersedes 87910-58030-J0i200504-200804

87930DEVICE ASSY, FRONT FENDER SIDE VIEW, LH

main87930-58010-A0i200504-200706

WHITE PM.,042

main87930-58010-A1i200706-200804

WHITE PEARL CS.,070

main87930-58010-B1i200504-200804

SILVER ME.,1F7

main87930-58010-C0i200504-200804

BLACK MC.,209

main87930-58010-G0i200504-200804

LT.OLIVE M.M.,6T1

main87930-58010-J1i200504-200804

PALE BLUE M.M.,8R0

87939COVER, OUTER MIRROR HOLE, RH

main87939-58030i200504-200804

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-58021-A0supersedes 87940-58011-A0i200307-200504

main87940-58021-B0supersedes 87940-58011-B0i200307-200504

main87940-58021-C1supersedes 87940-58011-C1i200307-200504

main87940-58021-J0supersedes 87940-58011-J0i200307-200504

main87940-58021-K0supersedes 87940-58011-K0i200307-200504

main87940-58040-A0supersedes 87940-58030-A0i200504-200706

main87940-58040-A1supersedes 87940-58030-A1i200706-200804

main87940-58040-B2supersedes 87940-58030-B2i200504-200804

main87940-58040-C0supersedes 87940-58030-C0i200504-200804

main87940-58040-G0supersedes 87940-58030-G0i200504-200804

main87940-58040-J0supersedes 87940-58030-J0i200504-200804

main87940-58050-A0supersedes 87940-58030-A0i200504-200706

main87940-58050-A1supersedes 87940-58030-A1i200706-200804

main87940-58050-B1supersedes 87940-58030-B2i200504-200804

main87940-58050-C0supersedes 87940-58030-C0i200504-200804

main87940-58050-G0supersedes 87940-58030-G0i200504-200804

main87940-58050-J0supersedes 87940-58030-J0i200504-200804

main87940-58060-A0supersedes 87940-58030-A0i200504-200706

main87940-58060-A1supersedes 87940-58030-A1i200706-200804

main87940-58060-B1supersedes 87940-58030-B2i200504-200804

main87940-58060-C0supersedes 87940-58030-C0i200504-200804

main87940-58060-G0supersedes 87940-58030-G0i200504-200804

main87940-58060-J0supersedes 87940-58030-J0i200504-200804

87944COVER, FRONT FENDER SIDE VIEW DEVICE, LH

main87944-58010-A0i200504-200706

WHITE PM.,042

main87944-58010-A1i200706-200804

WHITE PEARL CS.,070

main87944-58010-B1i200504-200804

SILVER ME.,1F7

main87944-58010-C0i200504-200804

BLACK MC.,209

main87944-58010-G0i200504-200804

LT.OLIVE M.M.,6T1

main87944-58010-J1i200504-200804

PALE BLUE M.M.,8R0

87948COVER, OUTER MIRROR HOLE, LH

main87948-58030i200504-200804

87950MIRROR ASSY, OUTER UNDER REAR VIEW

main87950-58010i200307

9015460013

main90154-60013

9163160625

main91631-60625

9415080600

main94150-80600

16 parts on this diagram · 2 diagrams in section

MIRROR for Toyota ALPHARD HV

This section contains 18 genuine Toyota parts for the MIRROR system of the Toyota ALPHARD HV. Key components include: RETAINER, FRONT FENDER SIDE VIEW DEVICE, BACK DOOR PANEL & GLASS, CAMERA & REAR MONITOR DISPLAY, MIRROR ASSY, INNER REAR VIEW, MIRROR SUB-ASSY, OUTER REAR VIEW, RH.
