Toyota ALPHARD HV — METER

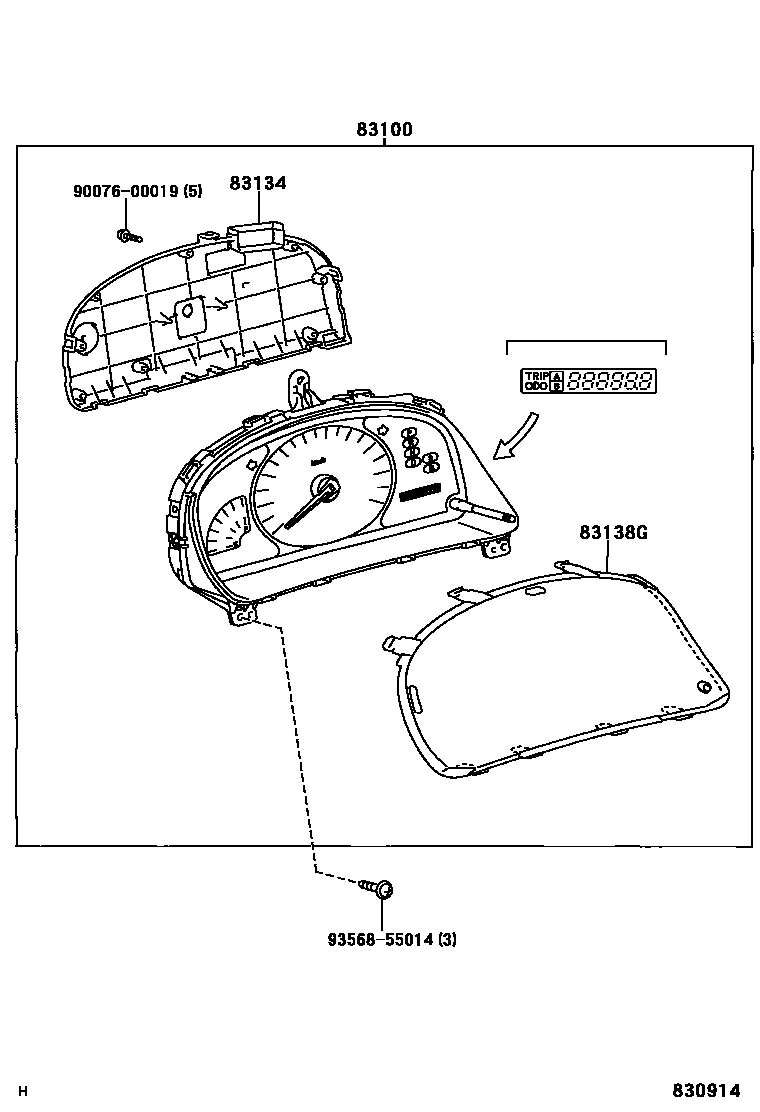

83100METER ASSY, COMBINATION

main83800-58130supersedes 83800-58120i200307-200504

main83800-58250supersedes 83800-58240i200504

83134COVER, COMBINATION METER, NO.1

main83821-58130i200307

83138GGLASS, COMBINATION METER

main83852-58030i200307-200503

9007600019

main90076-00019

9356855014

main93568-55014

5 parts on this diagram · 1 diagram in section

METER for Toyota ALPHARD HV

This section contains 5 genuine Toyota parts for the METER system of the Toyota ALPHARD HV. Key components include: METER ASSY, COMBINATION, COVER, COMBINATION METER, NO.1, GLASS, COMBINATION METER.
