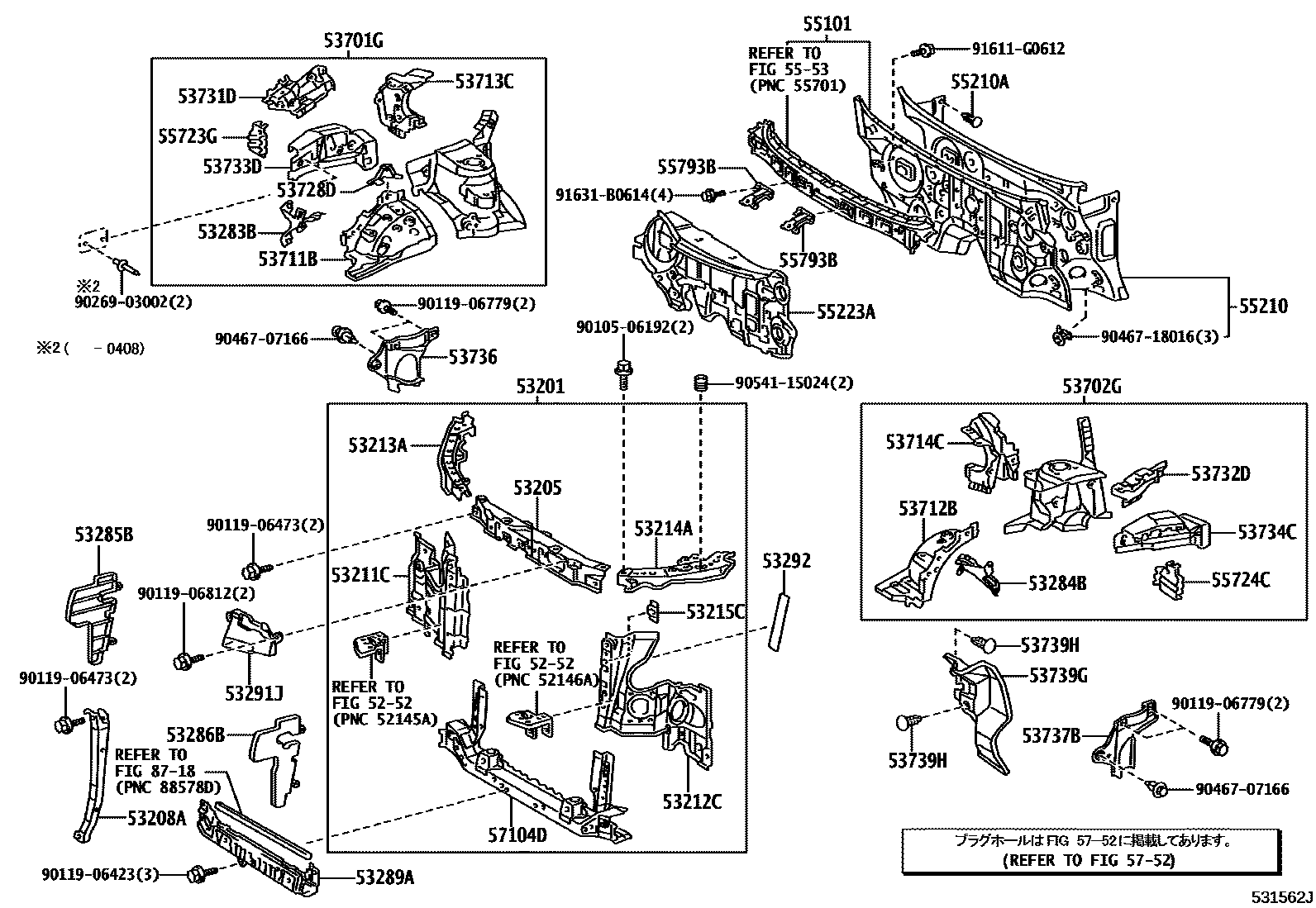

Toyota ALPHARD HV — FRONT FENDER APRON & DASH PANEL
5252FRONT BUMPER & BUMPER STAY
53208ASUPPORT SUB-ASSY, HOOD LOCK
53213ASUPPORT, RADIATOR, UPPER RH
53214ASUPPORT, RADIATOR, UPPER LH
53283BREINFORCEMENT, FRONT BODY MOUNTING, NO.2 RH
53284BREINFORCEMENT, FRONT BODY MOUNTING, NO.2 LH
53285BSEAL, RADIATOR SIDE AIR, NO.1
53286BSEAL, RADIATOR SIDE AIR, NO.2
53292SEAL, RADIATOR SUPPORT TO FRAME, LH
53701GAPRON SUB-ASSY, FRONT FENDER, RH
53702GAPRON SUB-ASSY, FRONT FENDER, LH
53711BAPRON, FRONT FENDER, FRONT RH
53712BAPRON, FRONT FENDER, FRONT LH
53713CEXTENSION, FRONT FENDER APRON, FRONT RH
53714CEXTENSION, FRONT FENDER APRON, FRONT LH
53728DBRACKET, FENDER APRON, RH
53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH
53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH
53733DMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT RH
53734CMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT LH
53736SEAL, FRONT FENDER APRON, RH
53737BSEAL, FRONT FENDER APRON, LH
53739GSEAL, FRONT FENDER APRON, REAR LH
53739HCLIP(FOR FRONT FENDER APRON SEAL)
55101PANEL SUB-ASSY, DASH
55210INSULATOR ASSY, DASH PANEL
55210ACLIP
BLACK,TRIM0#
5553COWL PANEL & WINDSHIELD GLASS
55723GGUSSET, FRONT PANEL, RH
55724CGUSSET, FRONT PANEL, LH
5752HOLE PLUG
8718HEATING & AIR CONDITIONING - COOLER PIPING
9010506192
main90105-06192
9011906423
main90119-06423
9011906473
main90119-06473
9011906779
main90119-06779
9011906812
main90119-06812
9026903002
main90269-03002
9046707166
main90467-07166
9046718016
main90467-18016
9054115024
main90541-15024
91611G0612
main91611-G0612
91631B0614
main91631-B0614
53 parts on this diagram · 2 diagrams in section
FRONT FENDER APRON & DASH PANEL for Toyota ALPHARD HV
This section contains 53 genuine Toyota parts for the FRONT FENDER APRON & DASH PANEL system of the Toyota ALPHARD HV. Key components include: FRONT BUMPER & BUMPER STAY, SUPPORT SUB-ASSY, RADIATOR, SUPPORT SUB-ASSY, RADIATOR, UPPER, SUPPORT SUB-ASSY, HOOD LOCK, SUPPORT, RADIATOR, RH.
