Toyota ALPHARD HV — CONSOLE BOX & BRACKET

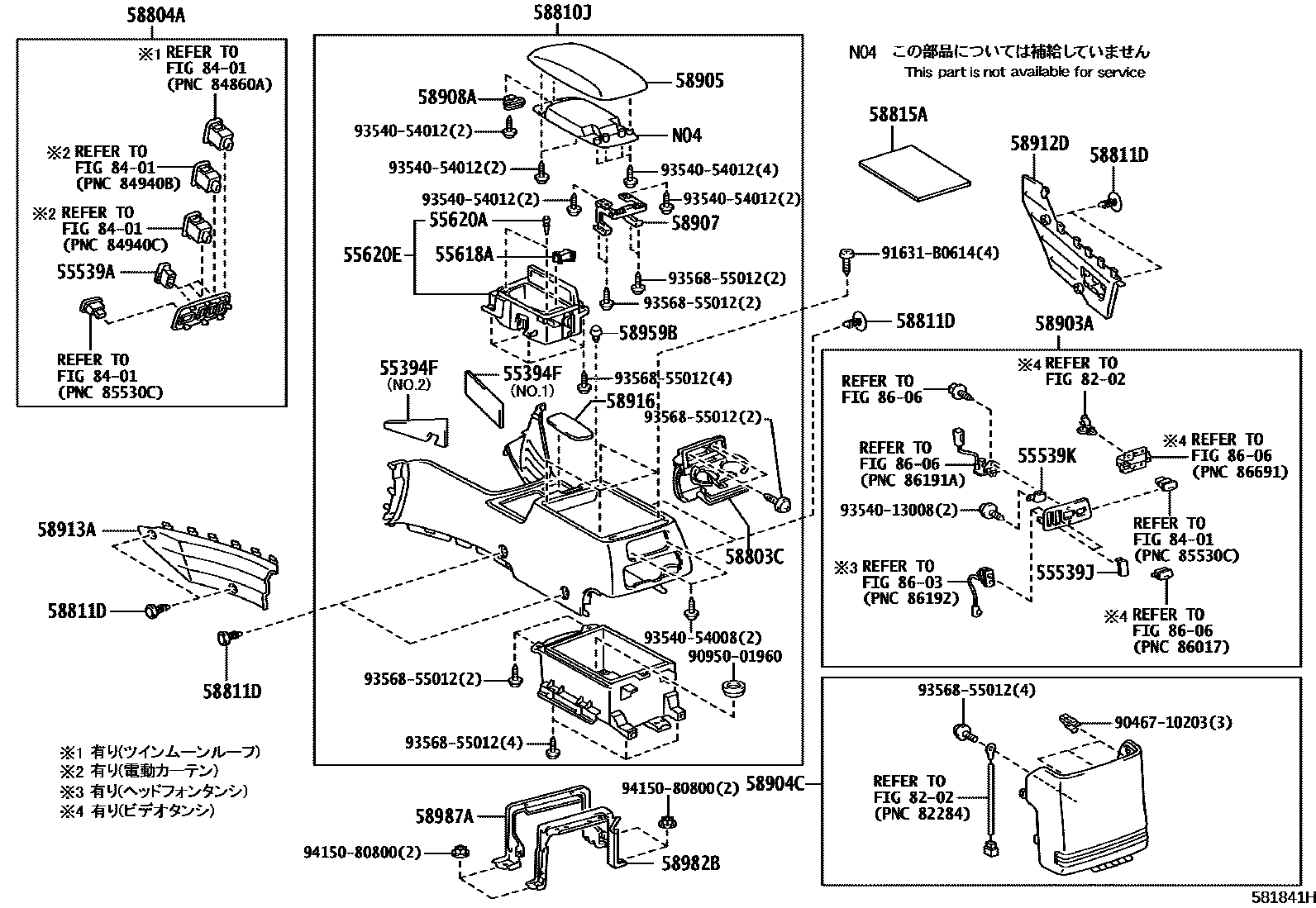

Parts diagram
55394FCUSHION, INSTRUMENT PANEL, LOWER
main55394-58010i200504
main55394-58020i200307-200503
55539ACOVER, SPARE SWITCH HOLE
55539JCOVER, SPARE SWITCH HOLE
main55539-58020-A0×2i200307-200804
IVORY,TRIM0#
55539KCOVER, SPARE SWITCH HOLE
main55539-58050-A0i200307-200804
IVORY,TRIM0#
55618AHOLDER, CONSOLE BOX CUP
main55618-30021i200307-200804
55620ACUSHION(FOR CUP HOLDER)
main90541-03006×2i200307
55620EHOLDER ASSY, INSTRUMENT PANEL CUP
main55620-58020-A0i200307-200804
IVORY,TRIM0#
58803CBOX SUB-ASSY, CONSOLE CUP HOLDER
main58803-58020-A0i200307-200804
IVORY,TRIM0#
58804APANEL SUB-ASSY, CONSOLE, UPPER
main58804-58070-A0supersedes 58804-58100-A0i200307-200804
sub55449-58010
sub84860-58020
sub84940-58030
sub84940-58040
sub85530-58010
main58804-58080-A0supersedes 58804-58100-A0i200307-200804
sub55449-58010
sub55539-58030
sub84860-58020
sub85530-58010
main58804-58090-A0supersedes 58804-58100-A0i200307-200804
sub55449-58010
sub55539-58030
sub84940-58030
sub84940-58040
sub85530-58010
58810JBOX ASSY, CONSOLE
main58810-58040-A0i200307-200504
IVORY,TRIM0#
main58810-58041-A2i200504-200804
IVORY,TRIM0#
main58810-58030-A2i200307-200804
58811DCLIP(FOR CONSOLE BOX)
main90467-07080-A0×8i200307-200804
IVORY,TRIM0#
58815ACARPET, CONSOLE BOX
main58815-58020i200307
58903APANEL SUB-ASSY, CONSOLE REAR END
main58903-58070-A0i200307-200804
IVORY,TRIM0#
sub58923-58050
sub85530-58010
sub93540-13008
main58903-58080-A0i200307-200504
sub58923-58050
sub82711-1E340
sub85530-58010
sub86017-44010
sub86191-58010
sub86691-58010
sub93540-13008
main58903-58090-A0i200307-200504
sub58923-58050
sub82711-1E340
sub85530-58010
sub86017-44010
sub86191-58010
sub86192-58020
sub86691-58010
sub93540-13008
58904CPANEL SUB-ASSY, CONSOLE REAR END, NO.2
main58904-58010-A0i200307-200804
IVORY,TRIM0#
58905DOOR SUB-ASSY, CONSOLE COMPARTMENT
main58905-58040-A0i200307-200504
IVORY,TRIM0#
main58905-58041-A2i200504-200804
IVORY,TRIM0#
main58905-58030-A2i200307-200804
58907HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR
main58907-58030i200504
main58907-58040i200307-200503
58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR
main58908-58010i200504
sub58908-12080
58912DPANEL, BOX, NO.2
main58912-58010-A1i200307-200804
IVORY,TRIM0#
58913APANEL, BOX, NO.3
main58913-58010-A1i200307-200804
IVORY,TRIM0#
58916MAT, BOX BOTTOM
main58916-58020-A0i200307-200804
IVORY,TRIM0#
58959BCUSHION, CONSOLE COMPARTMENT DOOR
main58959-60060×2i200307-200503
58982BRETAINER, CONSOLE BOX, NO.3
main58982-58010i200307
58987ARETAINER, CONSOLE BOX, NO.2
main58987-58010i200307
8202
8401
8603
8606
9046710203
main90467-10203
9095001960
main90950-01960
91631B0614
main91631-B0614
9354013008
main93540-13008
9354054008
main93540-54008
9354054012
main93540-54012
9356855012
main93568-55012
9415080800
main94150-80800

35 parts on this diagram · 1 diagram in section
