Toyota ALPHARD G/V — SWITCH & RELAY & COMPUTER

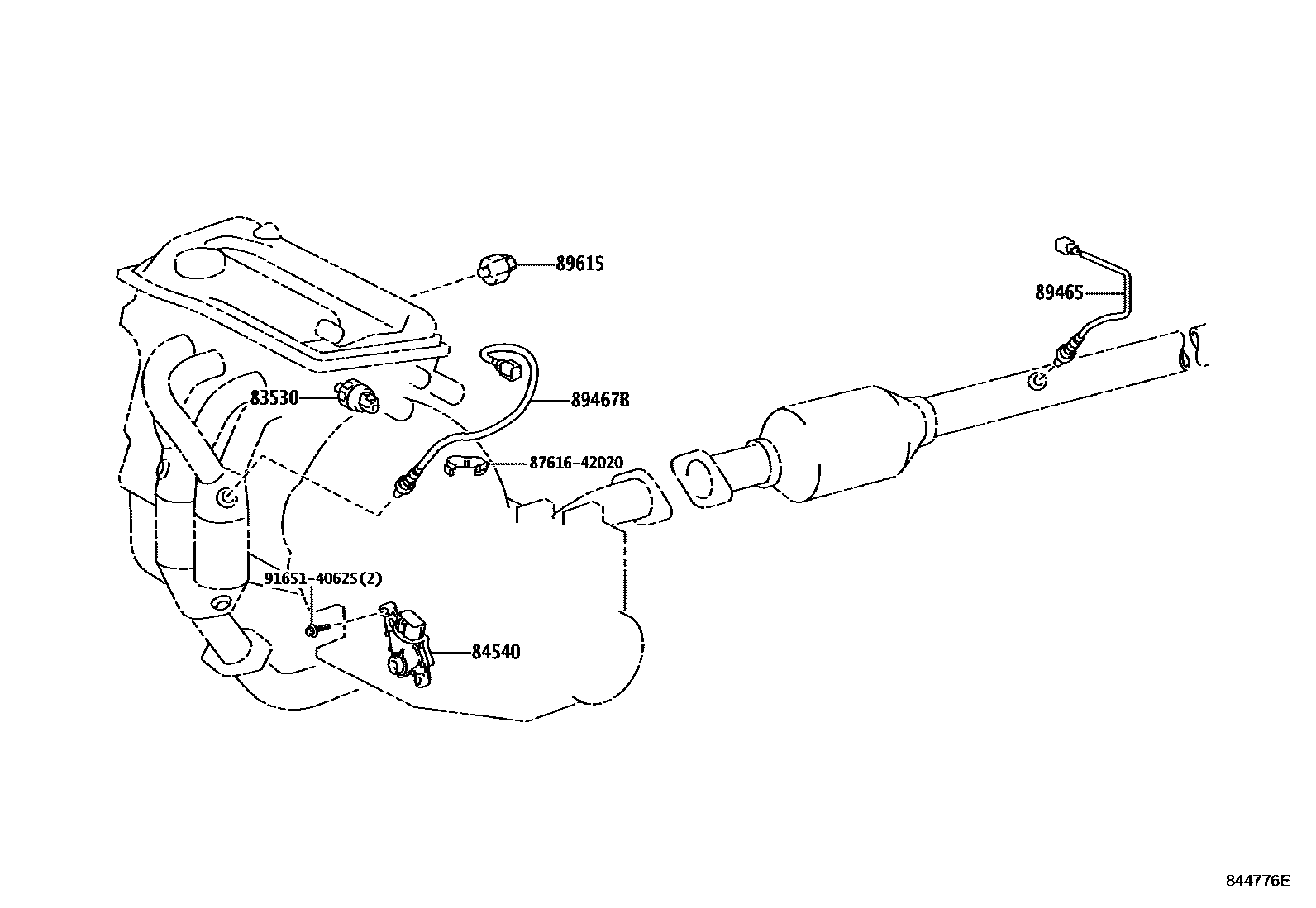

Parts diagram

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020i200504-200804

main83530-60020i200205-200504

84540SWITCH ASSY, NEUTRAL START

main84540-32110i200205-200504

main84540-48010i200504-200804

89465SENSOR, OXYGEN

main89465-30610i200205-200504

main89465-41060i200205-200504

main89465-58020i200205-200504

main89465-58050i200504-200706

main89465-58060i200504-200706

main89465-58070i200504-200804

main89465-58080i200504-200804

main89465-58090i200706-200804

main89465-58100i200706-200804

89467BSENSOR, AIR FUEL RATIO

main89465-58010i200205-200504

main89467-58090i200504-200804

89615SENSOR, KNOCK CONTROL

main89615-12090×2i200205-200504

main89615-20090i200504-200804

main89615-44010i200205-200504

8761642020CLAMP, COOLING UNIT CASE

main87616-42020

9165140625

main91651-40625

7 parts on this diagram · 15 diagrams in section

SWITCH & RELAY & COMPUTER for Toyota ALPHARD G/V

This section contains 187 genuine Toyota parts for the SWITCH & RELAY & COMPUTER system of the Toyota ALPHARD G/V. Key components include: RADIATOR & WATER OUTLET, RELAY ASSY, STARTER, RELAY, IGNITION, NO.1, RELAY, IGNITION, NO.2, STEERING COLUMN & SHAFT.
