Toyota ALPHARD G/V — SLIDE ROLLER & RAIL
5752HOLE PLUG
58305LGUIDE SUB-ASSY, SLIDE DOOR LOWER ROLLER, RH
58306KGUIDE SUB-ASSY, SLIDE DOOR LOWER ROLLER, LH
6152SIDE WINDOW
68020AGUIDE ASSY, SLIDE DOOR CABLE, RH
68030GUIDE ASSY, SLIDE DOOR CABLE
68303BRAIL SUB-ASSY, SLIDE DOOR, CENTER RH
68304BRAIL SUB-ASSY, SLIDE DOOR, CENTER LH
68308RAIL SUB-ASSY, SLIDE DOOR, UPPER RH
68309RAIL SUB-ASSY, SLIDE DOOR, UPPER LH
68310BROLLER ASSY, SLIDE DOOR, UPPER RH
68320AROLLER ASSY, SLIDE DOOR, UPPER, LH
68325CUSHION, SLIDE DOOR UPPER RAIL, RH
68326ACUSHION, SLIDE DOOR UPPER RAIL, LH
68350BROLLER ASSY, SLIDE DOOR, LOWER RH
68355GARNISH, SLIDE DOOR CENTER RAIL, RH
68356GARNISH, SLIDE DOOR CENTER RAIL, LH
main00000-00000supersedes 60836-58010iANH1#,MNH1#..AX,MX; ANH10,MNH10..07S..(AX,MX); MNH1#..MZ200205-200504
68360BROLLER ASSY, SLIDE DOOR, LOWER LH
68367APAD, SLIDE DOOR CENTER RAIL
68380DHINGE ASSY, SLIDE DOOR, CENTER RH
68390AHINGE ASSY, SLIDE DOOR, CENTER LH
main68390-58020supersedes 68390-58011iANH1#,MNH1#..4FC..(AX,MX); ANH10,MNH10..07S..4FC..(AX,MX); MNH1#..4FC..MZ200205-200311
main68390-58021supersedes 68390-58011iANH1#,MNH1#..AS,AX,MS,MX; ANH1#,MNH1#..AX,MX; ANH10..AX;MNH10..07S..MX; MNH1#..MZ200311-200504
68394APLATE, SLIDE DOOR LOWER RAIL, RH
68399PLATE, SLIDE DOOR LOWER RAIL, LH
69415STOPPER, SLIDE DOOR DOWN FEMALE
69416BSTOPPER, SLIDE DOOR DOWN MALE
69418BSHIM, SLIDE DOOR DOWN STOP MALE
69631ACONTROL, SLIDE DOOR ATTACHMENT, RH
69641ACONTROL, SLIDE DOOR ATTACHMENT, LH
main69641-58010iANH1#,MNH1#..AS,AX,MS,MX; ANH1#,MNH1#..AX,MX; ANH10..AX;MNH10..07S..MX; MNH1#..MZ200504-200804
84250BSENSOR ASSY, POWER SLIDE DOOR, RH
84260ESENSOR ASSY, POWER SLIDE DOOR
85610BMOTOR ASSY, SLIDE DOOR LOCK RELEASE, RH
85620AMOTOR ASSY, SLIDE DOOR LOCK RELEASE, LH
main85620-58010iANH1#,MNH1#..4FC..(AS,AX,MS,MX); ANH10..07S..AX;MNH10..4FC..MX; MNH1#..4FC..MZ200205-200307
main85620-58020iANH1#,MNH1#..AS,AX,MS,MX; ANH1#,MNH1#..AX,MX; ANH10..AX;MNH10..07S..MX; MNH1#..MZ200307-200504
main85620-58021iANH1#,MNH1#..08S..(AS,MS); ANH1#,MNH1#..AS,AX,MS,MX; ANH1#,MNH1#..AX,MX; ANH10..AX;MNH10..07S..MX; MNH1#..MZ200704
85630MOTOR ASSY, SLIDE DOOR
main85006-58011iANH1#,MNH1#..AS,AX,MS,MX; ANH1#,MNH1#..AX,MX; ANH10..AX;MNH10..07S..MX; MNH1#..MZ200311-200502
main85006-58012iANH1#,MNH1#..AS,AX,MS,MX; ANH1#,MNH1#..AX,MX; ANH10..AX;MNH10..07S..MX; MNH1#..MZ200503-200504
main85006-58013iANH1#,MNH1#..08S..(AS,MS); ANH1#,MNH1#..AS,AX,MS,MX; ANH1#,MNH1#..AX,MX; ANH10..AX;MNH10..07S..MX; MNH1#..MZ200707-200804
6855558010BOLT, DOOR STAY
main68555-58010
9010506287
main90105-06287
9010508400
main90105-08400
9011906595
main90119-06595
9011906911
main90119-06911
9014860063
main90148-60063
9014880048
main90148-80048
9014880049
main90148-80049
9015960431
main90159-60431
9016650004
main90166-50004
9016840012
main90168-40012
9018904130
main90189-04130
9018905074
main90189-05074
9018906203
main90189-06203
9020104017
main90201-04017
91621B0616
main91621-B0616
9164180818
main91641-80818

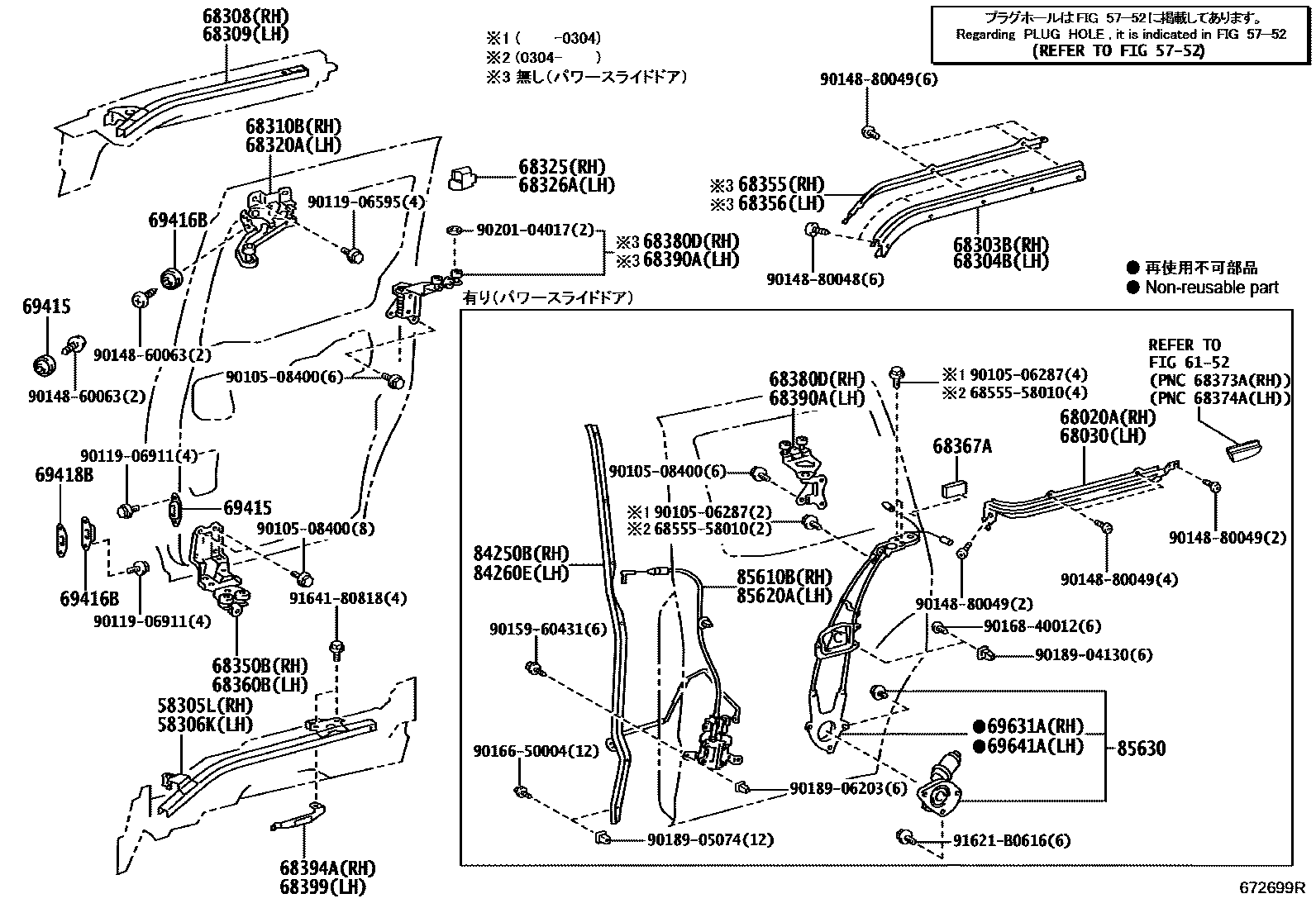

50 parts on this diagram · 1 diagram in section
SLIDE ROLLER & RAIL for Toyota ALPHARD G/V
This section contains 50 genuine Toyota parts for the SLIDE ROLLER & RAIL system of the Toyota ALPHARD G/V. Key components include: HOLE PLUG, GUIDE SUB-ASSY, SLIDE DOOR LOWER ROLLER, RH, GUIDE SUB-ASSY, SLIDE DOOR LOWER ROLLER, LH, SIDE WINDOW, GUIDE ASSY, SLIDE DOOR CABLE, RH.
