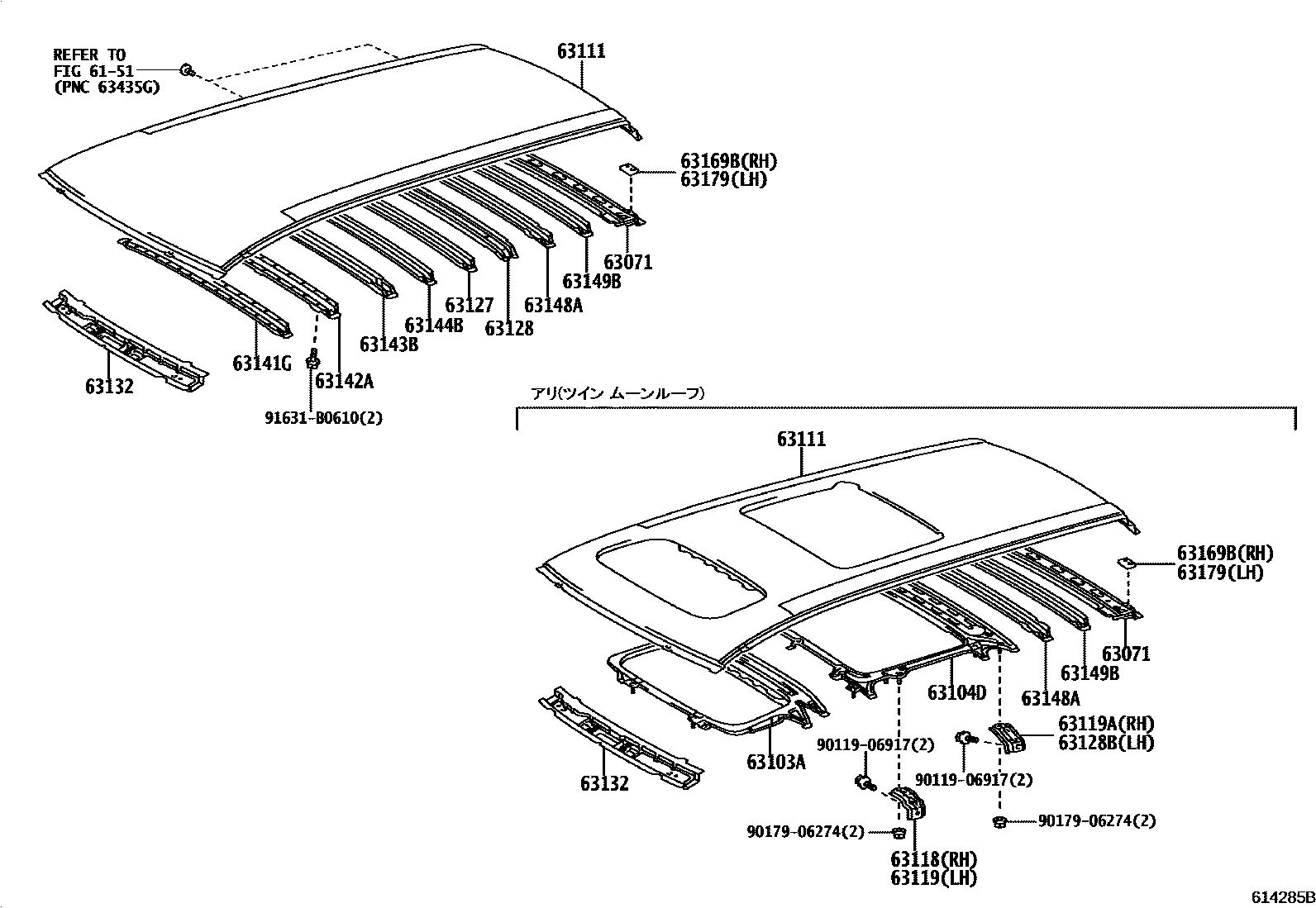

Toyota ALPHARD G/V — ROOF PANEL & BACK PANEL

6151SIDE MEMBER

→ Go to FIG 61-51

63071FRAME SUB-ASSY, BACK DOOR OPENING, UPPER

main63071-58010i200205-200504

63103AREINFORCEMENT SUB-ASSY, ROOF PANEL

main63103-58010i200205-200307

63104DREINFORCEMENT SUB-ASSY, ROOF PANEL, NO.2

main63104-58010i200205-200307

63111PANEL, ROOF

main63111-58020supersedes 63111-58010i200307-200504

63118SUPPORT, ROOF PANEL, RH

main63118-58010i200205-200307

63119SUPPORT, ROOF PANEL, LH

main63118-58010i200205-200307

63119ASUPPORT, ROOF PANEL, REAR RH

main63118-58020i200205-200307

63127REINFORCEMENT, ROOF PANEL, NO.5

main63127-58010i200205-200504

63128REINFORCEMENT, ROOF PANEL, NO.6

main63128-58010i200205-200504

63128BSUPPORT, ROOF PANEL, REAR LH

main63118-58020i200205-200307

63132PANEL, WINDSHIELD HEADER, INNER

main63132-58010i200504

63141GREINFORCEMENT, ROOF PANEL, NO.1

main63141-58010i200205-200504

63142AREINFORCEMENT, ROOF PANEL, NO.2

main63142-58010i200205-200504

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-58010i200205-200504

63144BREINFORCEMENT, ROOF PANEL, NO.4

main63144-58010i200205-200504

63148AREINFORCEMENT, ROOF PANEL, NO.7

main63148-58010i200205-200504

63149BREINFORCEMENT, ROOF PANEL, NO.1 REAR

main63149-58010i200205-200504

63169BPLATE, ROOF PANEL REINFORCEMENT, RH

main63169-58010i200205-200504

63179PLATE, ROOF PANEL REINFORCEMENT, LH

main63179-58010i200205-200504

9011906917

main90119-06917

9017906274

main90179-06274

91631B0610

main91631-B0610

23 parts on this diagram · 2 diagrams in section

ROOF PANEL & BACK PANEL for Toyota ALPHARD G/V

This section contains 75 genuine Toyota parts for the ROOF PANEL & BACK PANEL system of the Toyota ALPHARD G/V. Key components include: HOLE PLUG, SIDE MEMBER, LINK SUB-ASSY, TILT ROOF, RH, LINK SUB-ASSY, TILT ROOF, LH, FRAME SUB-ASSY, BACK DOOR OPENING, UPPER.
