Toyota ALPHARD G/V — METER

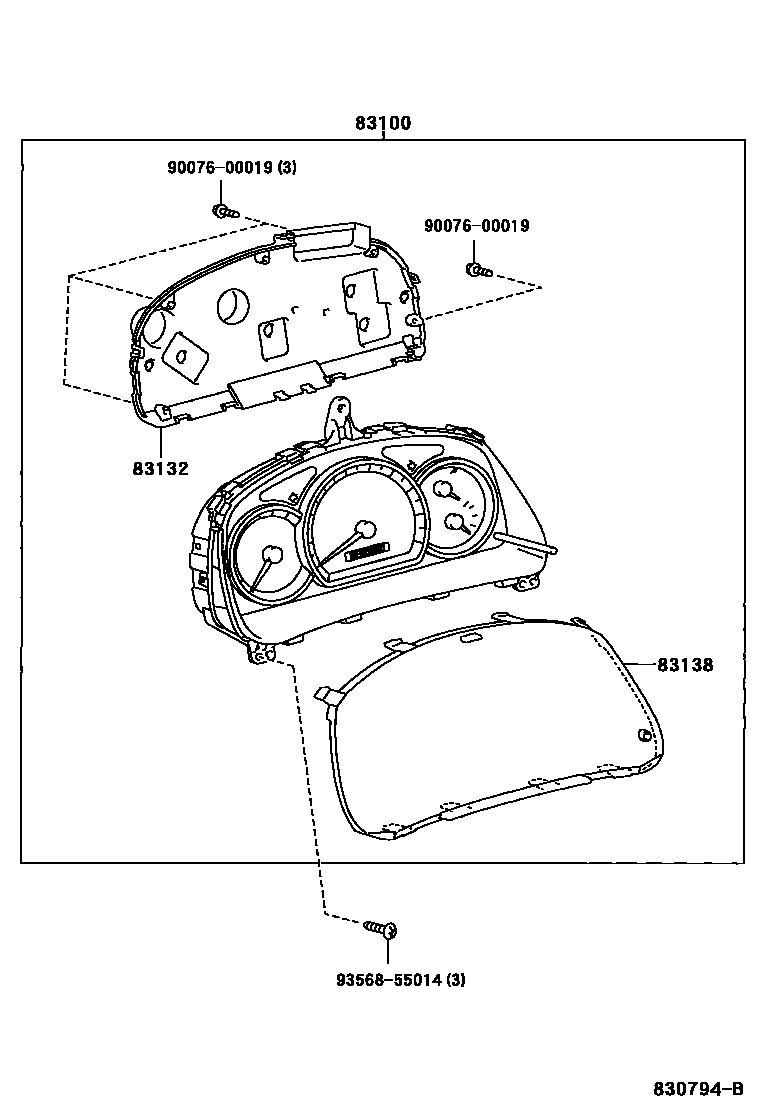

Parts diagram

83100METER ASSY, COMBINATION

main83800-58030i200205-200211

main83800-58031i200211-200504

main83800-58040i200205-200211

main83800-58041i200211-200504

main83800-58050i200205-200504

main83800-58140supersedes 83800-58220i200504

main83800-58200i200504

main83800-58210i200504

main83800-58010supersedes 83800-58091i200205-200211

main83800-58011i200211-200307

main83800-58060supersedes 83800-58230i200205-200504

main83800-58070i200205-200504

main83800-58080i200205-200504

main83800-58100i200205-200504

main83800-58110i200205-200504

main83800-58150supersedes 83800-58230i200504

main83800-58160i200504

main83800-58170i200504

main83800-58180i200504

main83800-58190i200504

83132CASE, COMBINATION METER

main83821-58010i200205-200504

main83821-58050supersedes 83821-58010i200205-200504

83138GLASS, SPEEDOMETER

main83852-58010i200205-200504

main83852-58020supersedes 83852-58010i200205-200504

9007600019

main90076-00019

9356855014

main93568-55014

5 parts on this diagram · 2 diagrams in section

METER for Toyota ALPHARD G/V

This section contains 5 genuine Toyota parts for the METER system of the Toyota ALPHARD G/V. Key components include: METER ASSY, COMBINATION, CASE, COMBINATION METER, GLASS, SPEEDOMETER.
