Toyota ALPHARD G/V — COWL PANEL & WINDSHIELD GLASS

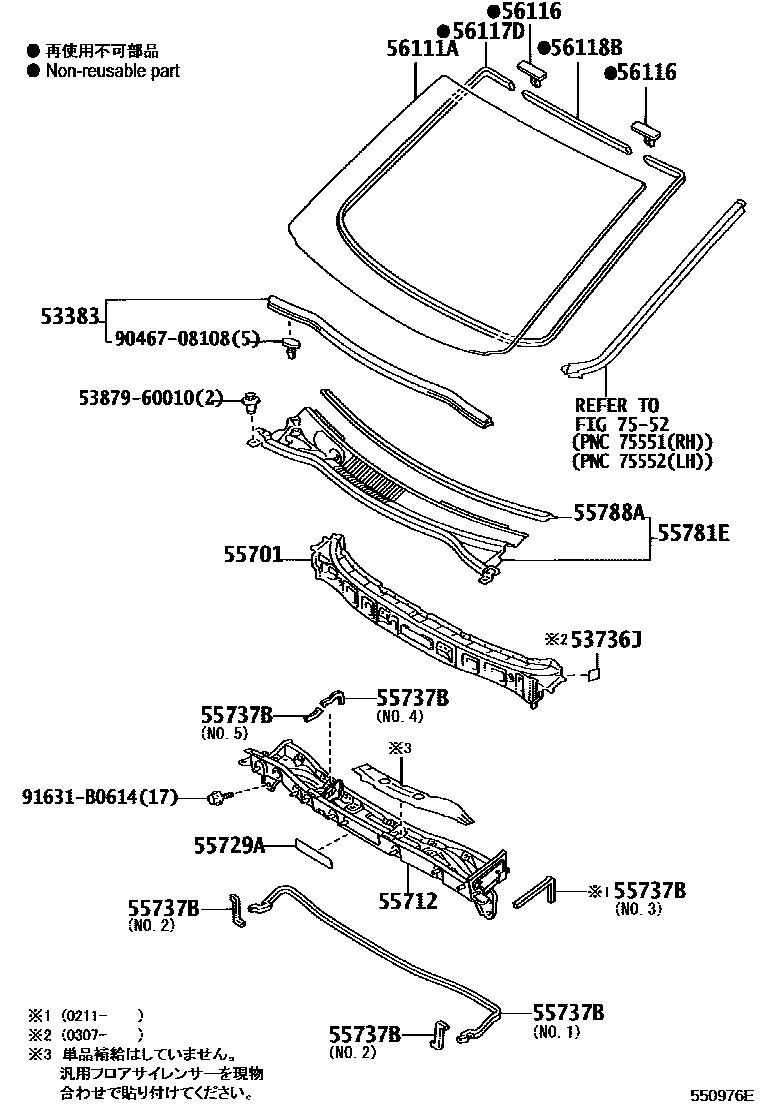

Parts diagram

53383SEAL, HOOD TO COWL TOP

main53383-58010i200205-200504

53736JSEAL, FENDER APRON

main53736-58010i200307-200504

55701PANEL SUB-ASSY, COWL

main55700-58010i200504

55712PANEL, COWL TOP OUTSIDE, FRONT

main55720-58010i200205-200211

main55720-58011i200211-200504

main55720-58020supersedes 55720-58011i200504

55729ACOVER, COWL PANEL HOLE

main55729-28010i200504

55737BSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1

main55737-58010i200504-200804

main55737-58020×2i200504-200804

main55737-58030i200211-200504

main55737-58040i200504-200804

main55737-58050i200307-200504

55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-58020supersedes 55708-58010i200504

55788APROTECTOR, COWL TOP VENTILATOR LOUVER

main55788-58010i200504

56111AGLASS, WINDSHIELD

main56101-58020i200205-200312

main56101-58030i200312-200504

main56101-58031i200607

main56101-58060supersedes 56101-58090i200307-200312

main56101-58061supersedes 56101-58090i200504

main56101-58070i200307-200312

main56101-58071i200312-200504

main56101-58080i200312-200504

main56101-58081i200607

main56101-58100i200504

56116SPACER, WINDSHIELD GLASS

main56116-35050×2i200205-200504

56117DDAM, WINDSHIELD GLASS ADHESIVE

main56117-58010i200504

56118BDAM, WINDOW GLASS ADHESIVE, NO.2

main56118-58010i200205-200504

7552MOULDING

→ Go to FIG 75-52

5387960010LINER, FRONT FENDER, LH

main53879-60010

9046708108

main90467-08108

91631B0614

main91631-B0614

16 parts on this diagram · 1 diagram in section

COWL PANEL & WINDSHIELD GLASS for Toyota ALPHARD G/V

This section contains 16 genuine Toyota parts for the COWL PANEL & WINDSHIELD GLASS system of the Toyota ALPHARD G/V. Key components include: SEAL, HOOD TO COWL TOP, SEAL, FENDER APRON, PANEL SUB-ASSY, COWL, PANEL, COWL TOP OUTSIDE, FRONT, COVER, COWL PANEL HOLE.
