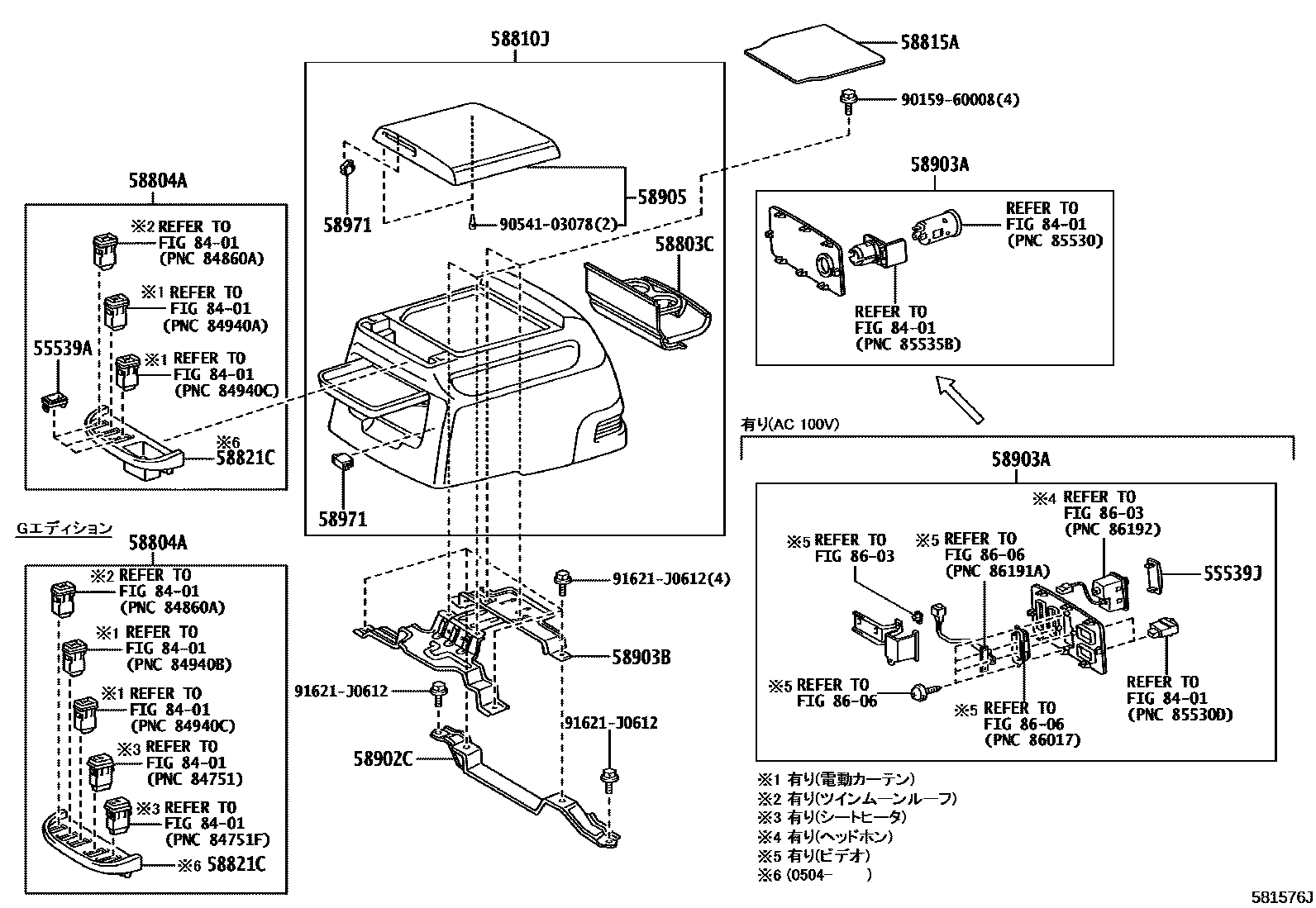

Toyota ALPHARD G/V — CONSOLE BOX & BRACKET
55539ACOVER, SPARE SWITCH HOLE
main55539-58010-A0iANH1#,MNH1#..07S..(AX,MX);ANH1#,MNH1#..08S..(AS,AX,MS,MX); MNH1#..MZ200504-200804
55539JCOVER, SPARE SWITCH HOLE
58803CBOX SUB-ASSY, CONSOLE CUP HOLDER
IVORY,TRIM0#
STONE,TRIM1#
58804APANEL SUB-ASSY, CONSOLE, UPPER
58810JBOX ASSY, CONSOLE
IVORY,TRIM0#
STONE,TRIM1#
IVORY,TRIM0#
IVORY,TRIM0#
58815ACARPET, CONSOLE BOX
58821CPANEL, CONSOLE, UPPER
IVORY,TRIM03
STONE,TRIM13
58902CBRACKET SUB-ASSY, CONSOLE BOX MOUNTING
58903APANEL SUB-ASSY, CONSOLE REAR END
main58903-58060-A0iANH1#,MNH1#..08S;ANH1#,MNH1#..07S..(AX,MX,MZ); ANH1#,MNH1#..AX,MX; MNH1#..07S..MZ200504-200804
58903BBRACKET SUB-ASSY, CONSOLE BOX HINGE, NO.2
58905DOOR SUB-ASSY, CONSOLE COMPARTMENT
IVORY,TRIM0#
STONE,TRIM1#
IVORY,TRIM0#
IVORY,TRIM0#
58971LOCK, CONSOLE COMPARTMENT DOOR
8401SWITCH & RELAY & COMPUTER
8603NAVIGATION & FRONT MONITOR DISPLAY
8606CAMERA & REAR MONITOR DISPLAY
9015960008
main90159-60008
9054103078
main90541-03078
91621J0612
main91621-J0612
18 parts on this diagram · 1 diagram in section
CONSOLE BOX & BRACKET for Toyota ALPHARD G/V
This section contains 18 genuine Toyota parts for the CONSOLE BOX & BRACKET system of the Toyota ALPHARD G/V. Key components include: COVER, SPARE SWITCH HOLE, BOX SUB-ASSY, CONSOLE CUP HOLDER, PANEL SUB-ASSY, CONSOLE, UPPER, BOX ASSY, CONSOLE.
