Toyota ALPHARD G/V — ANTENNA
8603NAVIGATION & FRONT MONITOR DISPLAY
86050ANTENNA ASSY, TELEVISION
8610RADIO COMMUNICATION & ETC
86101CORD SUB-ASSY, ANTENNA
86300CANTENNA ASSY, AMPLIFIER, NO.2
827111E260WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-1E260
8537128050HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
main85371-28050
8537158010HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
main85371-58010
9011906067
main90119-06067
9011906915
main90119-06915
10 parts on this diagram · 2 diagrams in section

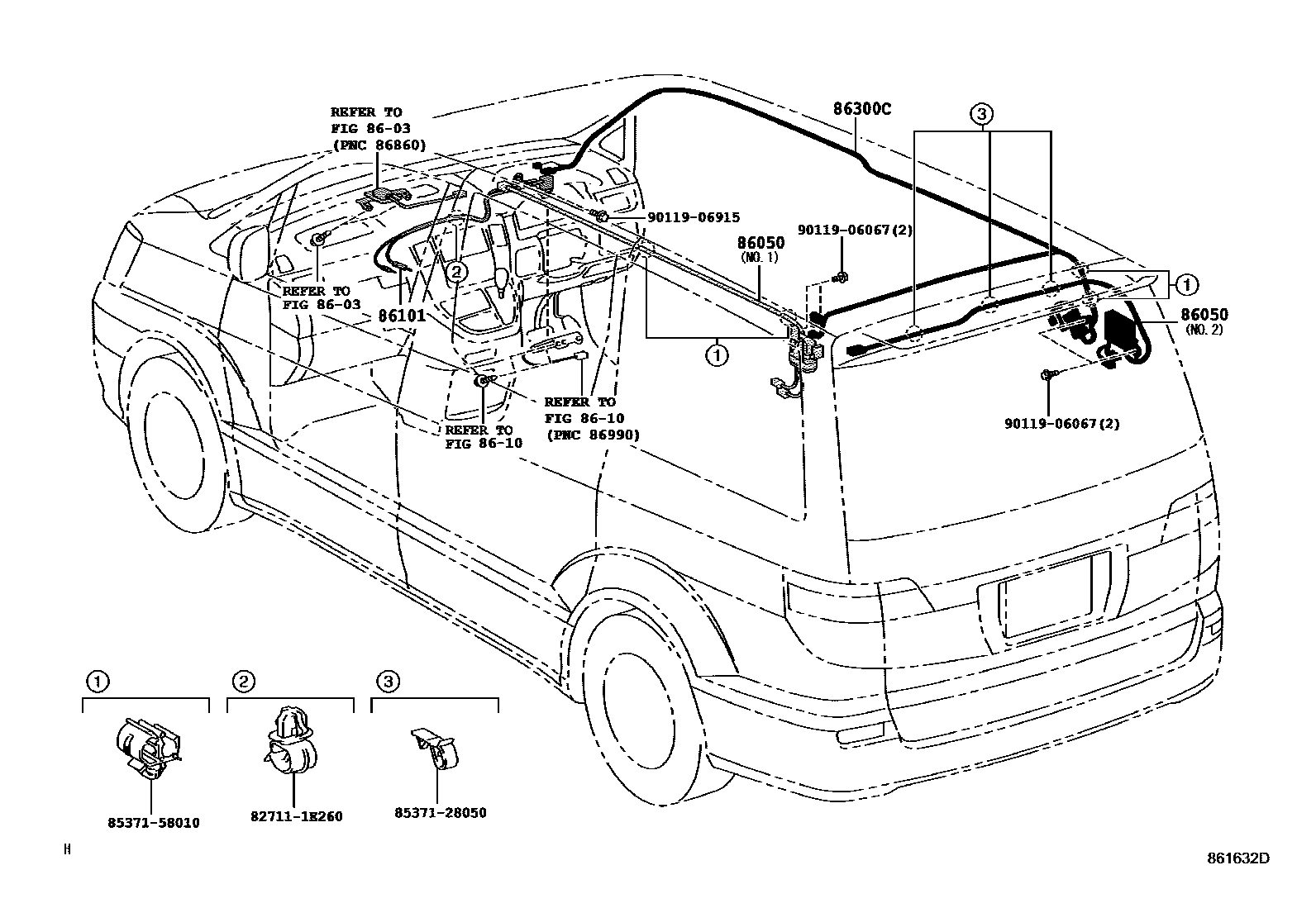

ANTENNA for Toyota ALPHARD G/V
This section contains 12 genuine Toyota parts for the ANTENNA system of the Toyota ALPHARD G/V. Key components include: NAVIGATION & FRONT MONITOR DISPLAY, ANTENNA ASSY, TELEVISION, RADIO COMMUNICATION & ETC, CORD SUB-ASSY, ANTENNA, ANTENNA ASSY, AMPLIFIER, NO.2.
