Toyota ALPHARD G/V — ACCELERATOR LINK

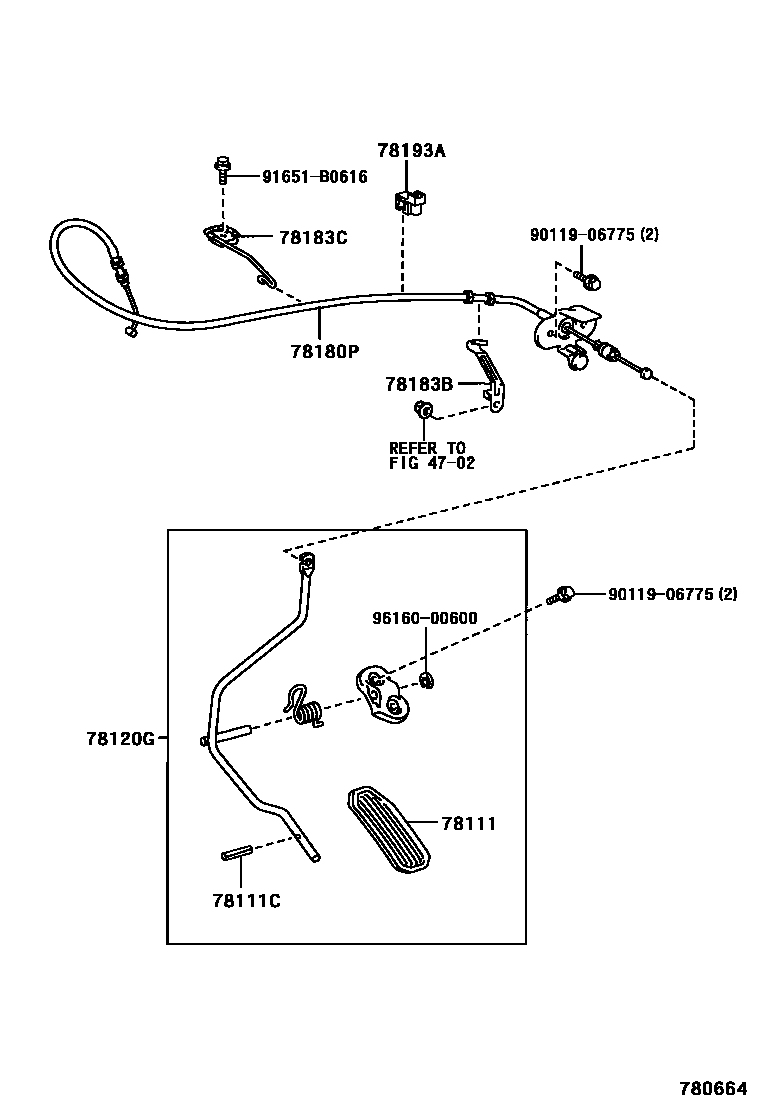

Parts diagram

4702BRAKE MASTER CYLINDER

→ Go to FIG 47-02

78111PEDAL, ACCELERATOR

main78111-32020i200205-200504

78111CPIN (FOR ACCELERATOR PEDAL)

main90254-04019i200504

main90254-04034i200205-200504

78120GROD ASSY, ACCELERATOR PEDAL

main78010-58020i200504

main78120-58020i200205-200504

main78120-58030i200205-200504

78180PCABLE ASSY, ACCELERATOR CONTROL

main78180-58010i200205-200504

main78180-58020i200205-200504

main78180-58030i200205-200504

78183BCLAMP, ACCELERATOR CONTROL CABLE

main78183-58010i200205-200504

78183CCLAMP, ACCELERATOR CONTROL CABLE

main78183-58020i200205-200504

78193ASUPPORT, ACCELERATOR CONTROL CABLE, NO.3

main78193-28010i200205-200504

9011906775

main90119-06775

91651B0616

main91651-B0616

9616000600

main96160-00600

11 parts on this diagram · 4 diagrams in section

ACCELERATOR LINK for Toyota ALPHARD G/V

This section contains 18 genuine Toyota parts for the ACCELERATOR LINK system of the Toyota ALPHARD G/V. Key components include: BRAKE MASTER CYLINDER, PEDAL, ACCELERATOR, PIN (FOR ACCELERATOR PEDAL), ROD ASSY, ACCELERATOR PEDAL, CABLE ASSY, ACCELERATOR AUTO DRIVE.

Toyota ALPHARD G/V ACCELERATOR LINK — Parts Diagram | ToyotaEPC
