Toyota ALPHARD G/V — ABS & VSC

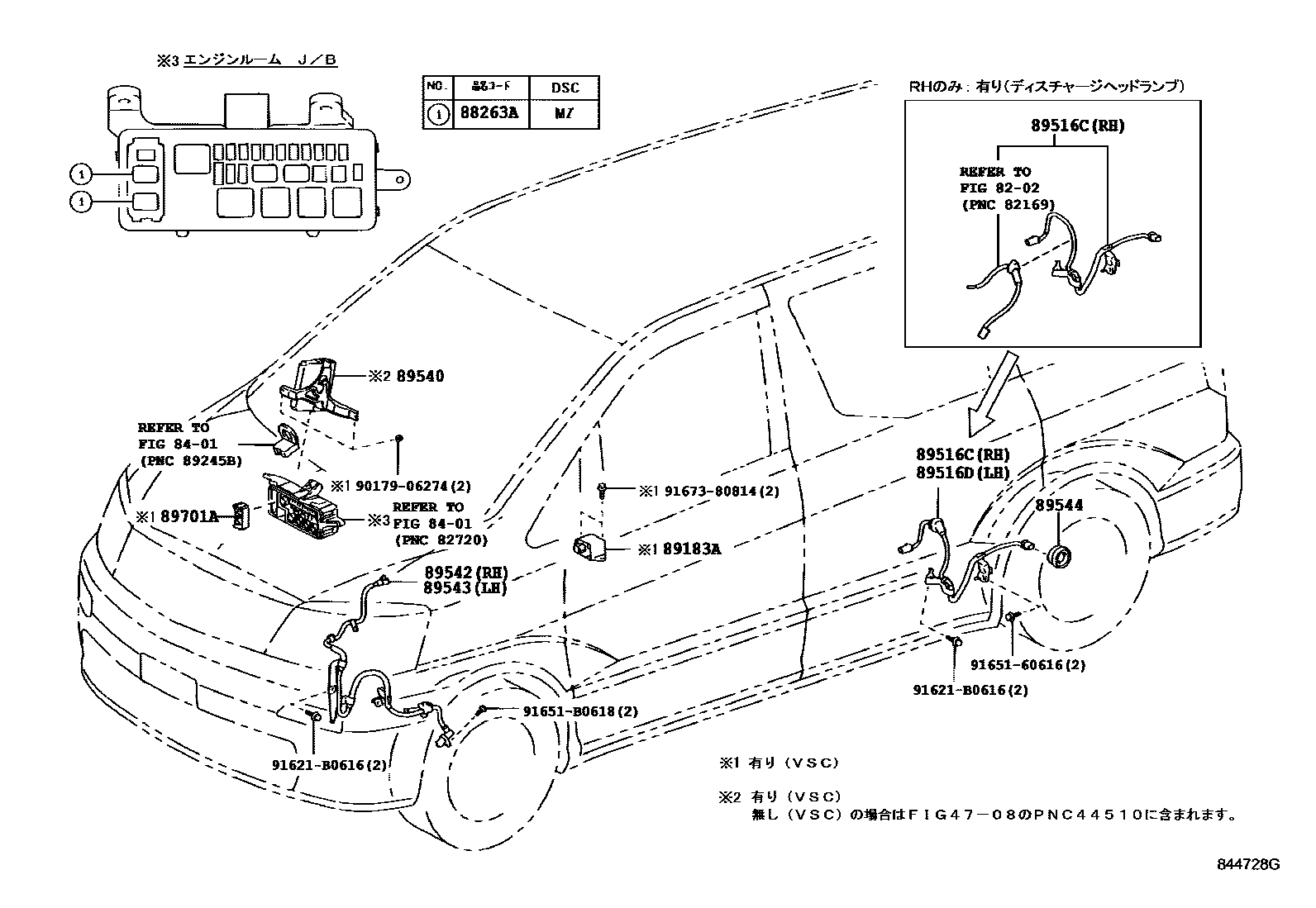

Parts diagram

8202WIRING & CLAMP

→ Go to FIG 82-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

88263ARELAY, SKID CONTROL

main88263-32070×2i200205-200504

89183ASENSOR, YAWRATE

main89183-22020i200205-200504

89516CWIRE, SKID CONTROL SENSOR, RH

main89516-58030supersedes 89516-58010i200205-200504

main89516-58031i200706-200804

main89516-58010i200205-200504

89516DWIRE, SKID CONTROL SENSOR, LH

main89516-58020i200504-200804

89540COMPUTER ASSY, SKID CONTROL

main89540-58010i200205-200504

main89540-58020i200205-200504

main89540-58040i200504

main89540-58050i200504

89542SENSOR, SPEED, FRONT RH

main89542-28090i200504

89543SENSOR, SPEED, FRONT LH

main89543-28090i200205-200504

89544SENSOR, SKID CONTROL

main89544-20010×2i200305-200504

main89544-47010×2i200205-200305

89701ABLOCK SUB-ASSY, ABS RELAY

main82660-20340supersedes 82660-58030i200205-200504

main82660-58030i200504-200804

9017906274

main90179-06274

91621B0616

main91621-B0616

9165160616

main91651-60616

91651B0618

main91651-B0618

9167380814

main91673-80814

16 parts on this diagram · 2 diagrams in section

ABS & VSC for Toyota ALPHARD G/V

This section contains 20 genuine Toyota parts for the ABS & VSC system of the Toyota ALPHARD G/V. Key components include: WIRING & CLAMP, SWITCH & RELAY & COMPUTER, RELAY, SKID CONTROL, SENSOR, YAWRATE, SENSOR, DECELERATION.
