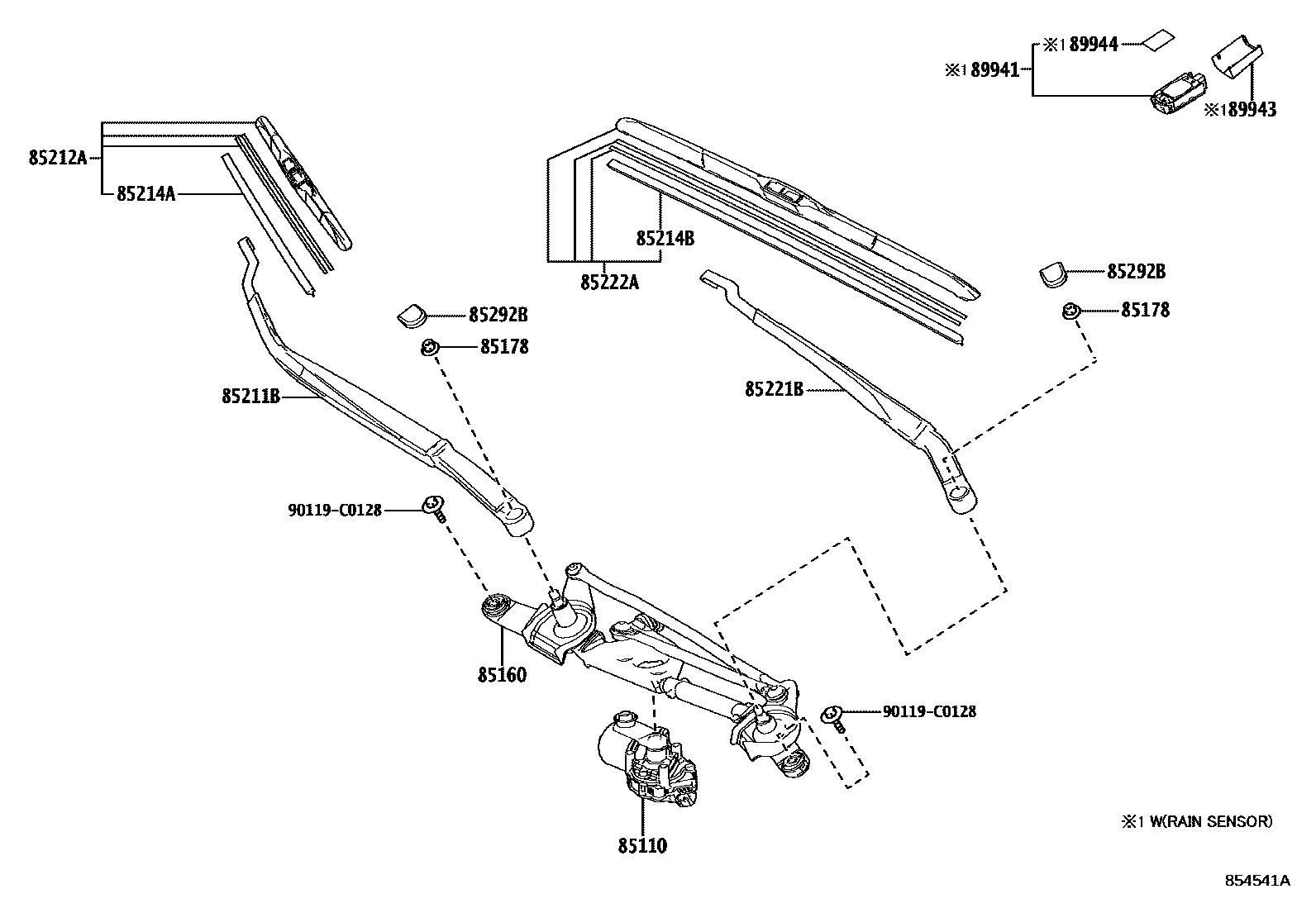

Toyota ALLION — WINDSHIELD WIPER

0001 1 0002 1

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-02580iMZEA12202104-202304

(L)

main85110-12C30iMZEA12202104-202304

(J)

85160LINK ASSY, WINDSHIELD WIPER

main85150-02510iMZEA12202104-202304

85178NUT (FOR FRONT WIPER ARM SETTING)

main90182-C0012×2iMZEA12202104-202304

85211BARM, FRONT WIPER, RH

main85211-02510iMZEA12202104-202304

main85211-02540iMZEA12,MZEH16202305

85212ABLADE, FR WIPER, RH

main85212-02310iMZEA12202104-202304

main85212-02450iMZEA12,MZEH16202305

85214ARUBBER, WIPER, RH

main85214-02260iMZEA12202104-202304

main85214-02430iMZEA12,MZEH16202305

85214BRUBBER, WIPER, LH

main85214-02420iMZEA12202109-202304

LOCAL SOURCED PARTS

main85214-02440iMZEA12,MZEH16202305

main85214-28080iMZEA12202104-202304

JAPAN SOURCED PARTS

85221BARM, FRONT WIPER, LH

main85221-02530iMZEA12202104-202304

main85221-02560iMZEA12,MZEH16202305

85222ABLADE, FR WIPER, LH

main85222-02500iMZEA12202109-202304

LOCAL SOURCED PARTS

main85222-02510iMZEA12,MZEH16202305

main85222-52270iMZEA12202104-202304

JAPAN SOURCED PARTS

85292BCAP, FRONT WIPER ARM HEAD

main85292-0D070×2iMZEA12202104-202304

89941SENSOR, RAIN

main89941-30040iMZEA12..E202104-202304

LEATHER PACKAGE

89943COVER, RAIN SENSOR

main89943-12040iMZEA12..E202104-202304

LEATHER PACKAGE

89944TAPE, RAIN SENSOR

main89944-42020iMZEA12..E202104-202304

LEATHER PACKAGE

90119C0128

main90119-C0128

14 parts on this diagram · 2 diagrams in section
