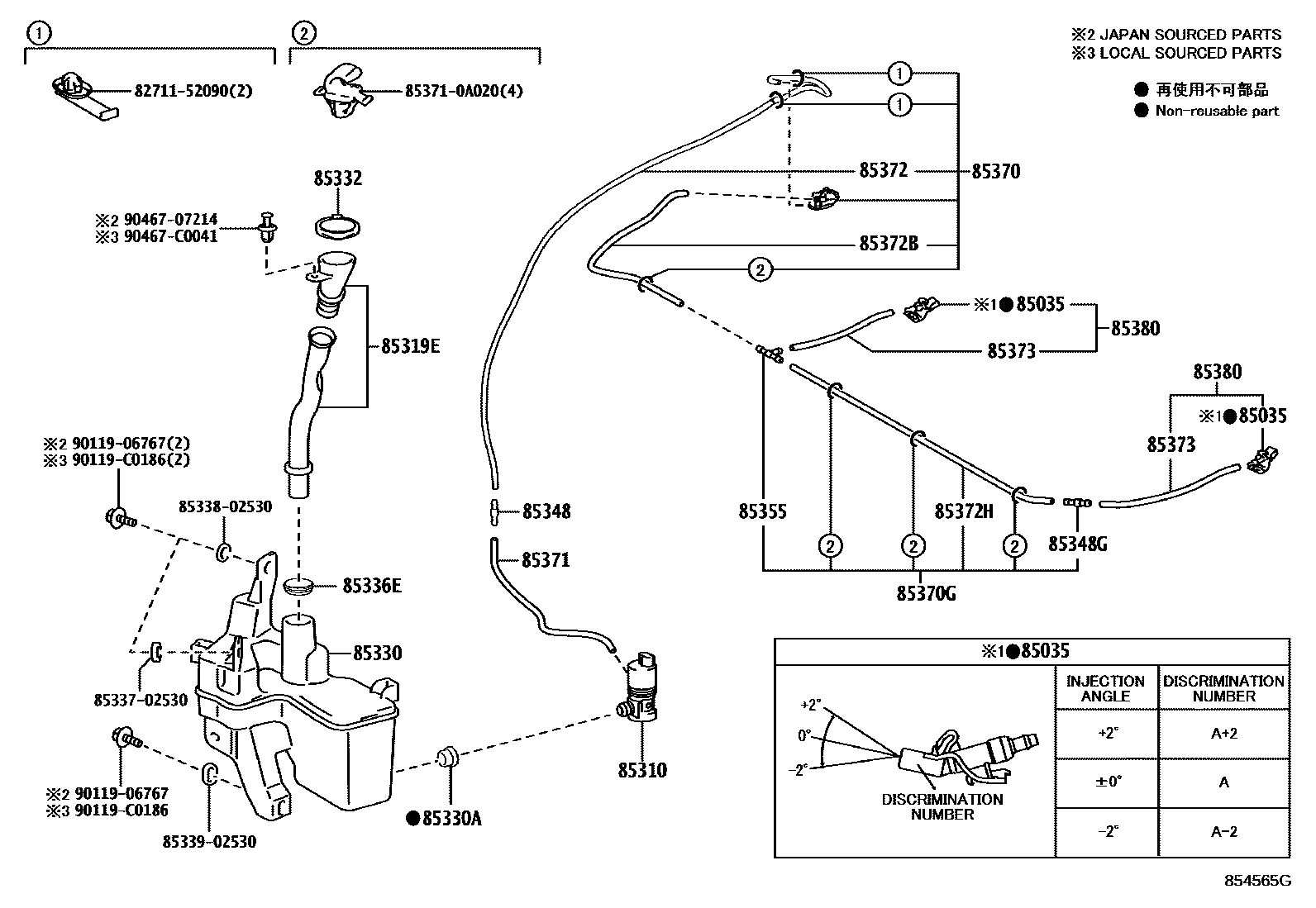

Toyota ALLION — WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85381-0E090×2iMZEA12202104-202304

ANGLE 0

main85381-0E100×2iMZEA12202104-202304

ANGLE +2

main85381-0E110×2iMZEA12202104-202304

ANGLE -2

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-02100iMZEA12202104-202304

85319EINLET WASHER

main85319-02530iMZEA12202104-202304

85330JAR ASSY, WINDSHIELD WASHER

main85315-02530iMZEA12202104-202304

85330ABUSH, WINDSHIELD WASHER JAR

main90069-52046iMZEA12202104-202304

85332CAP, WINDSHIELD WASHER JAR

main85316-02530iMZEA12202104-202304

85336EPACKING, WINDSHIELD WASHER INLET HOSE

main90069-52047iMZEA12202104-202304

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85375-02530iMZEA12202104-202304

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85375-02530iMZEA12202104-202304

85355VALVE, WINDSHIELD WASHER HOSE

main85376-02750iMZEA12202104-202304

85370HOSE ASSY, WINDSHIELD WASHER

main85370-02740iMZEA12202104-202304

85370GHOSE ASSY, WINDSHIELD WASHER, NO.2

main85370-02750iMZEA12202104-202304

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90069-46131iMZEA12202104-202304

L=273

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90069-46132iMZEA12202104-202304

L=1045

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90069-46133iMZEA12202104-202304

L=400

85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3

main90069-46134iMZEA12202104-202304

L=585

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90069-46135×2iMZEA12202104-202304

L=175,ANGLE 0

main90069-46136×2iMZEA12202104-202304

L=175,ANGLE +2

main90069-46137×2iMZEA12202104-202304

L=175,ANGLE -2

85380NOZZLE & HOSE ASSY, FR WASHER

main85380-02670×2iMZEA12202104-202304

ANGLE 0

main85380-02680×2iMZEA12,MZEH16202305

ANGLE +2

main85380-02800×2iMZEA12202104-202304

ANGLE -2

8271152090WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-52090

8533702530CASE, LEVEL WARNING SWITCH

main85337-02530

8533802530HOSE, BREATHER

main85338-02530

8533902530CAP SUB-ASSY, RESERVE TANK

main85339-02530

853710A020HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85371-0A020

9011906767

main90119-06767

90119C0186

main90119-C0186

9046707214

main90467-07214

90467C0041

main90467-C0041

27 parts on this diagram · 1 diagram in section
