84540SWITCH ASSY, NEUTRAL START

main84540-12240iMZEA12202104-202304

main89451-42010iMZEA12202305

89419BSENSOR, SHIFT STROKE

main89419-12011iMZEA12202104-202106

main89419-K2010iMZEA12202305

89422ASENSOR, WATER TEMPERATURE

main89422-33040iMZEA12,MZEH16202305

89467BSENSOR, AIR FUEL RATIO

main89467-0R160iMZEA12,MZEH16202305

main89467-F4010iMZEA12202104-202304

89467CSENSOR, AIR FUEL RATIO, NO.2

main89467-02160iMZEA12202104-202304

main89467-02320iMZEA12202305

main89467-02330iMZEH16202309

89491SENSOR, ENGINE OIL LEVEL

main89491-06010iMZEA12202104-202205

(L)

main89491-06011iMZEA12202206-202304

(L)

main89491-33051iMZEA12202104-202204

(J)

main89491-33052iMZEA12202205-202304

(J)

89535BCOMPUTER, TRANSMISSION CONTROL

main89535-02030iMZEA12202104-202304

89539MBRACKET, TRANSMISSION CONTROL COMPUTER, NO.1

main89539-F4010iMZEA12202104-202304

89539NBRACKET, TRANSMISSION CONTROL COMPUTER, NO.2

main89539-F4020iMZEA12202104-202304

89615SENSOR, KNOCK CONTROL

main89615-0E010iMZEH16202309

MARK 89615-0E010

main89615-20090iMZEA12202104-202304

827150Z730BRACKET,WIRING HARNESS CLAMP

main82715-0Z730

8271512X50BRACKET,WIRING HARNESS CLAMP

main82715-12X50

82715F4310BRACKET,WIRING HARNESS CLAMP

main82715-F4310

82715F4330BRACKET,WIRING HARNESS CLAMP

main82715-F4330

82715F4640BRACKET,WIRING HARNESS CLAMP

main82715-F4640

8272920040

main82729-20040

90105C0048

main90105-C0048

9011906A12

main90119-06A12

9011906A23

main90119-06A23

90119C0098

main90119-C0098

90119C0107

main90119-C0107

90119C0580

main90119-C0580

90119C0671

main90119-C0671

9015350015

main90153-50015

90153C0003

main90153-C0003

9046814044

main90468-14044

9046815007

main90468-15007

9155180835

main91551-80835

9161160618

main91611-60618

9165140620

main91651-40620

9167180616

main91671-80616

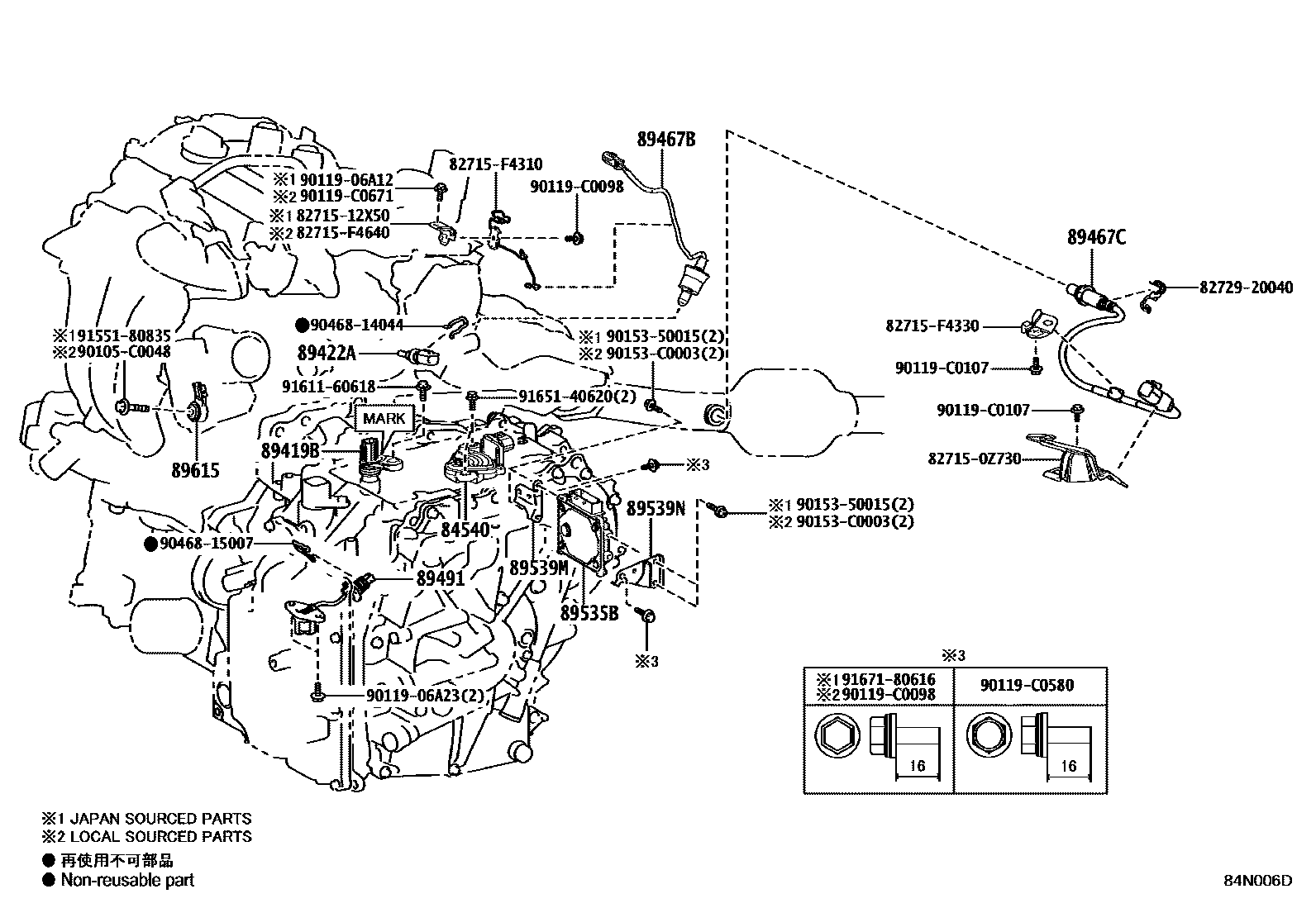

31 parts on this diagram · 14 diagrams in section
