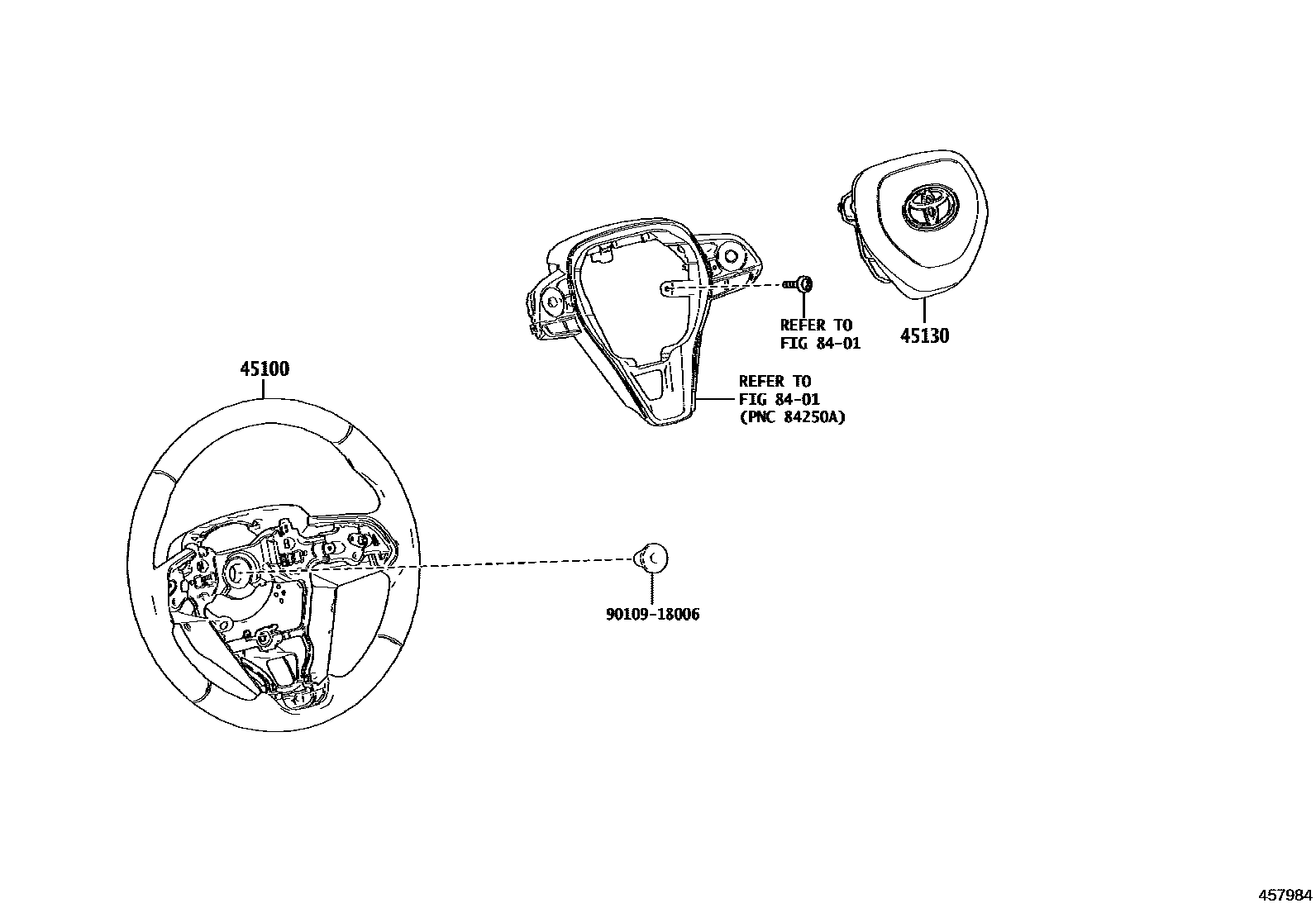

Toyota ALLION — STEERING WHEEL

45100WHEEL ASSY, STEERING

main45100-0Z320-C0i202305

3-SPOKE,URETHANE,BLACK,TRIM2#,8#

main45100-0Z330-C1supersedes 45100-0Z320-C0i202305

3-SPOKE,LEATHER,BLACK,TRIM2#,8#; 3-SPOKE,LEATHER,LEATHER PACKAGE,BLACK,TRIM2#,8#

45130BUTTON ASSY, HORN

main45130-02850-C0i202104-202304

BLACK,TRIM2#; BLACK,TRIM2#,4#

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9010918006

main90109-18006

4 parts on this diagram · 1 diagram in section

STEERING WHEEL for Toyota ALLION

This section contains 4 genuine Toyota parts for the STEERING WHEEL system of the Toyota ALLION. Key components include: WHEEL ASSY, STEERING, BUTTON ASSY, HORN, SWITCH & RELAY & COMPUTER.
