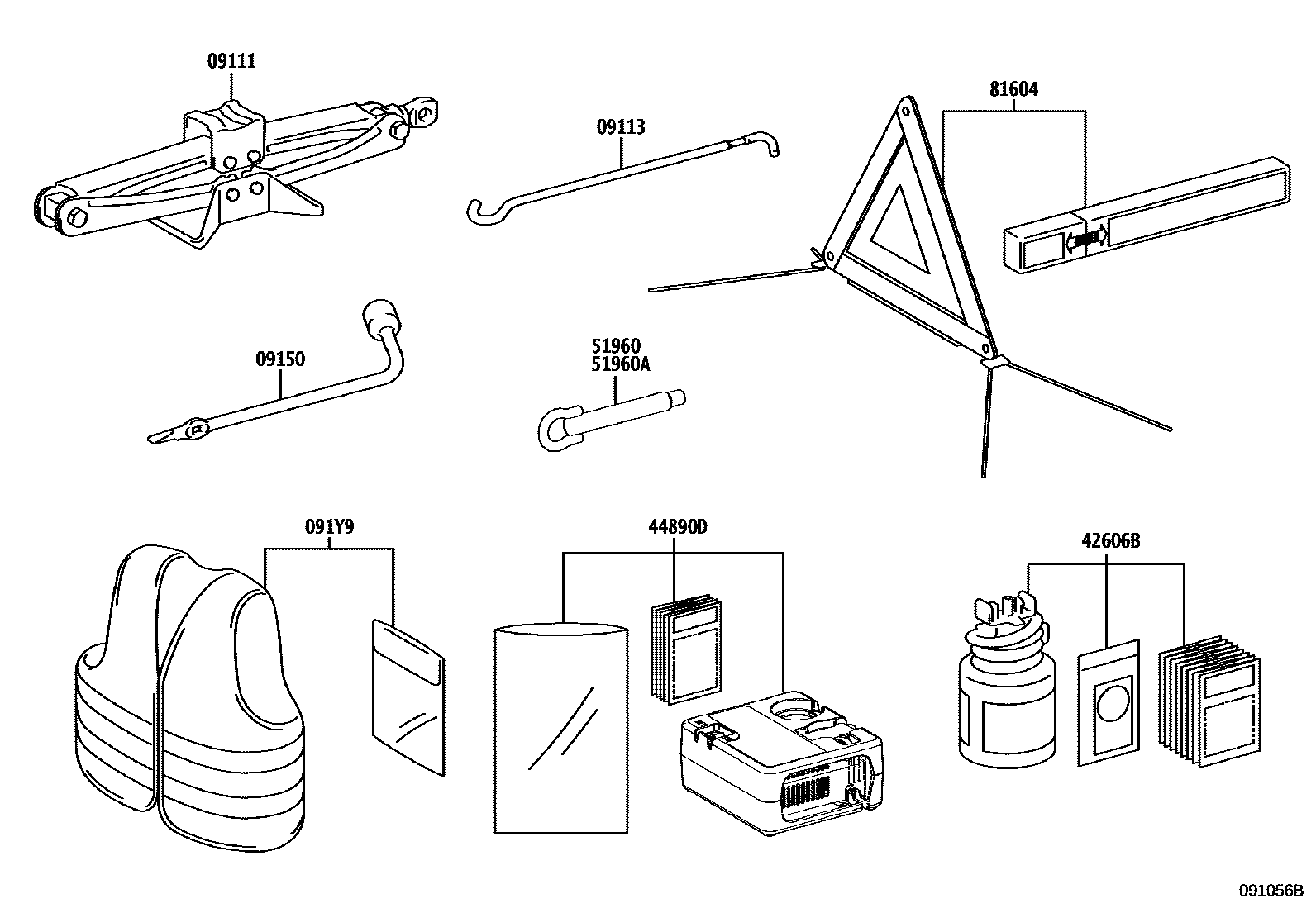

Toyota ALLION — STANDARD TOOL

09111JACK SUB-ASSY

main09111-F4031iMZEA12202104-202304

09113HANDLE, JACK

main09113-0R030iMZEA12202104-202304

09150WRENCH, HUB NUT BOX

main09150-0R020iMZEA12202104-202304

091Y9JACKET, W/REFLECTOR

main091Y9-02020iMZEA12202104-202304

42606BREPAIR KIT, TUBELESS TIRE

main42606-F4060iMZEA12202207-202304

SPARE TIRE-WITHOUT(REPAIR KIT ONLY)

44890DCOMPRESSOR ASSY, AIR

main44890-F4020iMZEA12202207-202304

SPARE TIRE-WITHOUT(REPAIR KIT ONLY)

51960HOOK ASSY, FRONT

main51960-02220iMZEA12202104-202304

51960AHOOK ASSY, REAR

main51960-02220iMZEA12,MZEH16202305

81604REFLECTOR SET, TRIANGLE

main81604-02030iMZEA12202104-202304

9 parts on this diagram · 1 diagram in section
