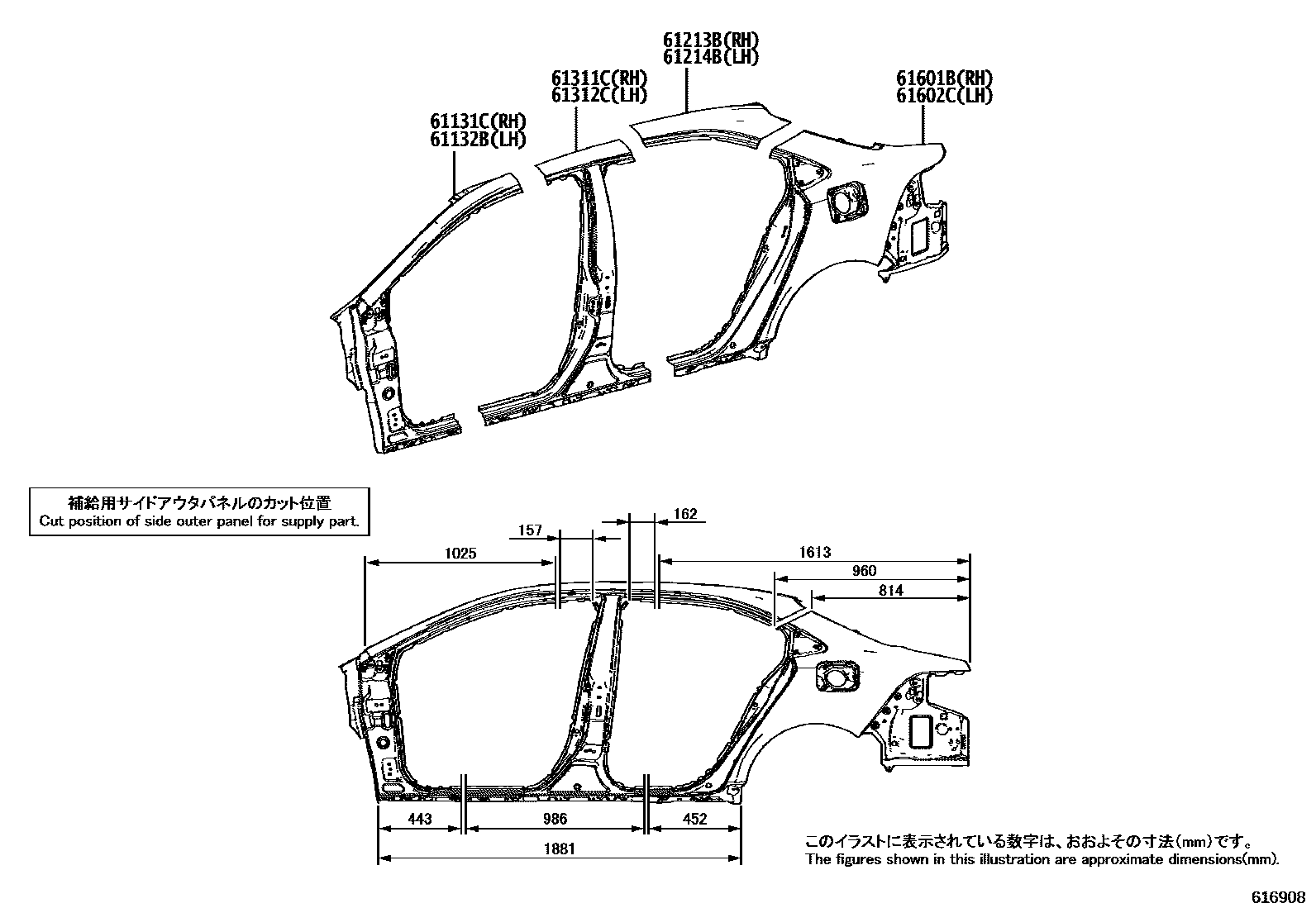

Toyota ALLION — SIDE MEMBER

0001 1OUTER PANEL 0002 1INNER PANEL, LH 0003 1INNER PANEL, RH

61131CPILLAR, FRONT BODY, OUTER RH

main61131-02500iMZEA12,MZEH16202305

61132BPILLAR, FRONT BODY, OUTER LH

main61132-02520iMZEA12202104-202304

61213BRAIL, ROOF SIDE, OUTER NO.2 RH

main61213-02110iMZEA12202104-202304

61214BRAIL, ROOF SIDE, OUTER NO.2 LH

main61214-02340iMZEA12202104-202304

61311CPANEL, REAR BODY FRONT OUTSIDE, RH

main61311-02440iMZEA12,MZEH16202305

61312CPANEL, REAR BODY FRONT OUTSIDE, LH

main61312-02440iMZEA12202104-202304

61601BPANEL SUB-ASSY, QUARTER, RH

main61601-02660iMZEH16202309

main61601-02680iMZEA12202104-202304

61602CPANEL SUB-ASSY, QUARTER, LH

main61602-02710iMZEA12202104-202304

8 parts on this diagram · 3 diagrams in section
