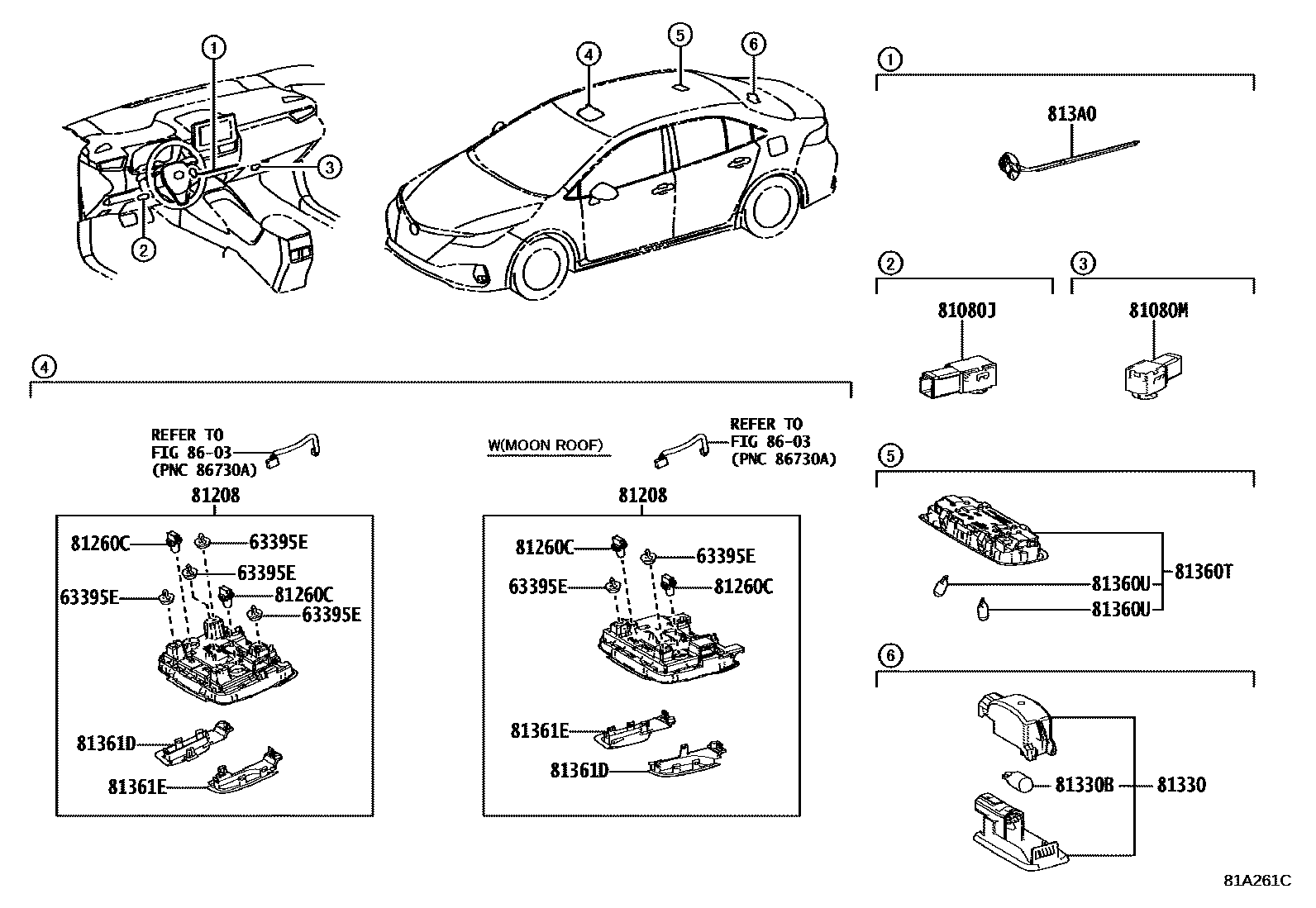

Toyota ALLION — INTERIOR LAMP

63395ECLIP(FOR MAP LAMP)

main90467-09240×2i202104-202207

LOW PACKAGE

81080JLAMP ASSY, INTERIOR ILLUMINATION, NO.1

main81080-0A080i202305

main81080-0E060i202104-202304

81080MLAMP ASSY, INTERIOR ILLUMINATION, NO.1

main81080-0A080i202305

main81080-0E060i202104-202207

81208LAMP SUB-ASSY, MAP

main81208-02300-A0i202104-202207

FROMAGE,TRIM2#; FROMAGE,TRIM2#,4#

main81208-02290-A0supersedes 81208-02300-A0i202104-202207

LOW PACKAGE,FROMAGE,TRIM2#

81260CBULB(FOR MAP LAMP)

main81936-12160×2i202104-202207

12V 5W

81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1

main81250-30210i202104-202304

main81330-0E020i202305

81330BBULB, LUGGAGE COMPARTMENT LAMP

main99132-12050i202104-202304

12V 5W

81360TLAMP ASSY, SPOT

main81360-02040-A0i202207-202304

FROMAGE,TRIM2#; FROMAGE,TRIM2#,4#

main81360-02040-B0i202305

LT.GRAY,TRIM2#,8#

main81360-02050-A0i202104-202207

FROMAGE,TRIM2#; FROMAGE,TRIM2#,4#

81360UBULB, SPOT LAMP

main90981-11062×2i202104-202207

81361DLENS, SPOT LAMP

main81361-02330i202104-202207

main81361-02290i202104-202207

LOW PACKAGE

81361ELENS, SPOT LAMP, NO.2

main81361-02320i202104-202207

main81361-02310i202104-202207

LOW PACKAGE

813A0LAMP ASSY, INSTRUMENT PANEL

main813A0-02020i202104-202207

main813A0-02070i202305

8603NAVIGATION & FRONT MONITOR DISPLAY

→ Go to FIG 86-03

13 parts on this diagram · 2 diagrams in section

INTERIOR LAMP for Toyota ALLION

This section contains 14 genuine Toyota parts for the INTERIOR LAMP system of the Toyota ALLION. Key components include: CLIP(FOR MAP LAMP), LAMP ASSY, INTERIOR ILLUMINATION, NO.1, LAMP SUB-ASSY, MAP, LAMP ASSY, MAP.
