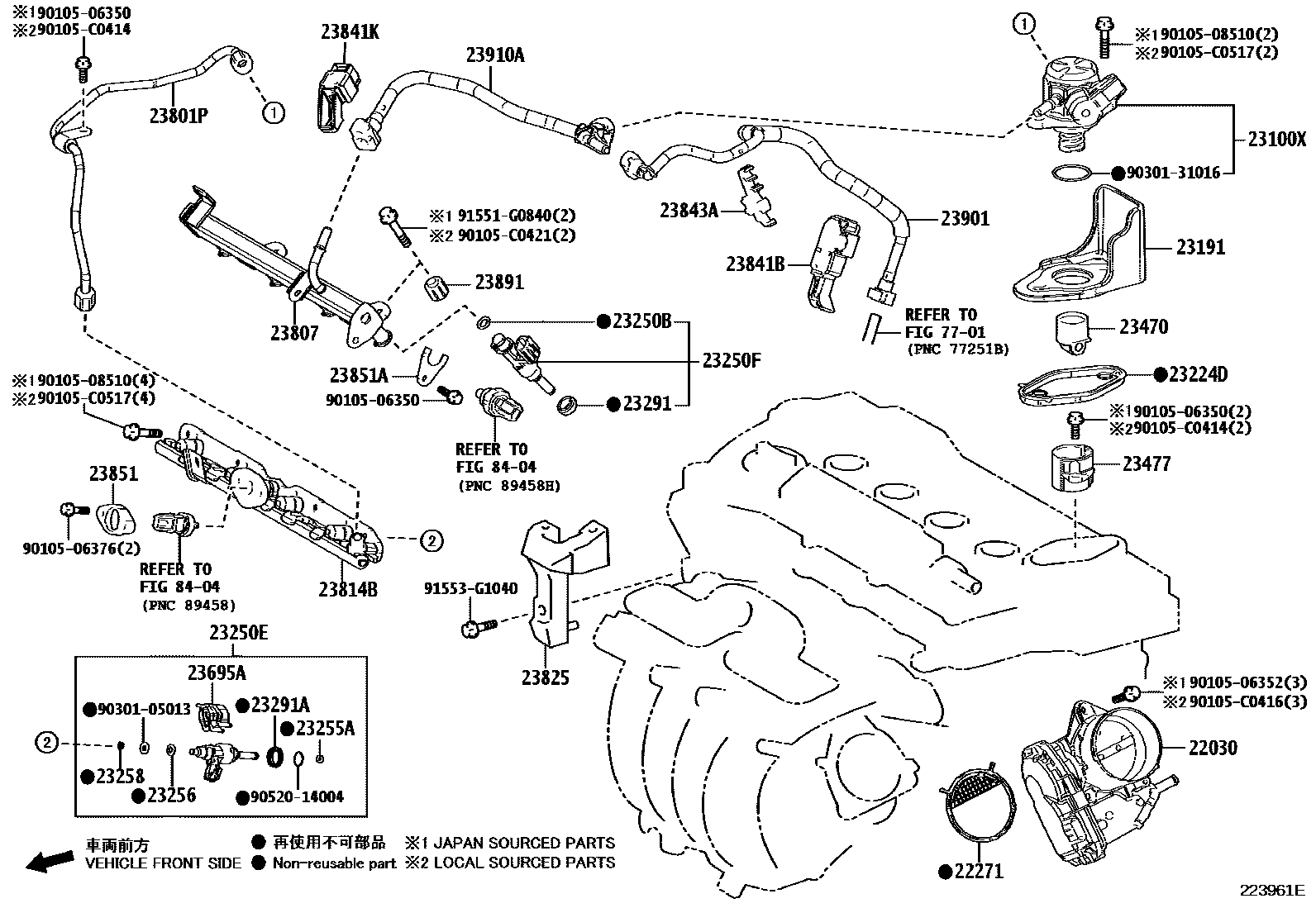

Toyota ALLION — FUEL INJECTION SYSTEM

22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR

main22030-24010i202104-202304

*632

main22030-F2030i202104-202304

*633

22271GASKET, THROTTLE BODY

main22271-24010i202104-202304

*633,*632

main22271-24020i202309

(J)

main22271-F2070i202309

(L)

23100XPUMP ASSY, FUEL (ENGINE ROOM SIDE)

main23101-25040i202104-202304

*632

main23101-F2020i202104-202304

*633

23191FLANGE, FUEL PUMP

main23191-25050i202104-202304

*632

main23214-F2040i202104-202304

*633

23224DGASKET, FUEL PUMP SPACER

main23224-25010i202104-202106

*632

main23224-25010i202104-202109

*633

main23224-25011i202107-202304

*632

main23224-25011i202110-202304

*633

23250BRING, O(FOR FUEL INJECTOR)

main90301-07037i202104-202304

(J),*632,(J),*633

main90301-07037i202309

(J)

main90301-C0072i202309

(L)

main90301-C0072i202104-202304

(L),*632,(L),*633

23250EINJECTOR ASSY, FUEL(FOR DIRECT)

main23209-24010-01i202104-202304

MARK 1,*632:REFER R/M

main23209-24010-02i202104-202304

MARK 2,*632:REFER R/M

main23209-24010-03i202104-202304

MARK 3,*632:REFER R/M

main23209-24010-04i202104-202304

MARK 4,*632:REFER R/M

main23209-24010-05i202104-202304

MARK 5,*632:REFER R/M

main23209-24010-06i202104-202304

MARK 6,*632:REFER R/M

main23209-24010-07i202104-202304

MARK 7,*632:REFER R/M

main23209-24010-08i202104-202304

MARK 8,*632:REFER R/M

main23209-24010-09i202104-202304

MARK 9,*632:REFER R/M

main23209-F2030-01i202104-202304

MARK 1,*633:REFER R/M

main23209-F2030-02i202104-202304

MARK 2,*633:REFER R/M

main23209-F2030-03i202104-202304

MARK 3,*633:REFER R/M

main23209-F2030-04i202104-202304

MARK 4,*633:REFER R/M

main23209-F2030-05i202104-202304

MARK 5,*633:REFER R/M

main23209-F2030-06i202104-202304

MARK 6,*633:REFER R/M

main23209-F2030-07i202104-202304

MARK 7,*633:REFER R/M

main23209-F2030-08i202104-202304

MARK 8,*633:REFER R/M

main23209-F2030-09i202104-202304

MARK 9,*633:REFER R/M

23250FINJECTOR ASSY, FUEL(FOR PORT)

main23209-29115i202305

*632

main23209-29165i202104-202304

*633,*632

main23209-29165i202305

*633

main23209-29185i202309

(J)

main23209-F9100i202309

(L)

23255ASEAL, FUEL INJECTOR

main23255-25010i202104-202304

*633,*632

main23255-25010i202305

*632

main23255-25010i202305

*633

23256RING, FUEL INJECTOR BACK-UP, NO.1

main23256-25010i202104-202304

*633,*632

main23256-25010i202305

*632

main23256-25010i202305

*633

23258RING, FUEL INJECTOR BACK-UP, NO.3

main23258-31030i202104-202304

*633

main23258-47010i202104-202304

*632

23291INSULATOR, INJECTOR VIBRATION

main23291-0V010i202305

*633

main23291-0V010i202104-202304

(L),*633

main23291-0V010i202309

main23291-28020i202305

*632

main23291-28020i202104-202304

(J),*633,*632

23291AINSULATOR, INJECTOR VIBRATION

main23291-31020i202305

*632

main23291-31020i202305

*633

main23291-31020i202104-202304

*633,*632

23470LIFTER ASSY, FUEL PUMP

main23470-0Y010i202104-202304

*633

main23470-25010i202104-202304

*632

23477GUIDE, FUEL PUMP LIFTER

main23477-25010i202104-202304

*632

main23477-F2060i202104-202304

*633

main23477-F2060i202309

23695ACLAMP, NOZZLE HOLDER

main23695-24010i202305

*633

main23695-24010i202305

*632

main23695-24010i202104-202304

*633,*632

23801PPIPE SUB-ASSY, FUEL, NO.1

main23801-24070i202104-202304

*632

main23801-F2020i202104-202304

*633

23807PIPE SUB-ASSY, FUEL DELIVERY

main23814-24020i202104-202304

*632

main23814-F2030i202104-202304

*633

23814BPIPE, FUEL DELIVERY

main23814-24010i202104-202210

*633,*632

main23814-24011i202305

*632

main23814-24011i202211-202304

*633,*632

main23814-24011i202305

*633

23825GUARD, FUEL DELIVERY

main23825-24010i202205-202304

(J)

main23825-24010i202104-202205

main23825-F2030i202205-202304

(L)

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-0T150i202309

main23841-24040i202104-202308

main23841-F3050i202309

23841KCLAMP, FUEL PIPE

main23841-25040i202104-202304

(J)

main23841-F2020i202104-202304

(L)

23843ACLAMP,FUEL PIPE, NO.3(FOR EFI)

main23847-24010i202104-202308

main23847-F2020i202309

23851HOLDER, FUEL PRESSURE SENSOR, NO.1

main23851-25020i202104-202304

*632

main23851-F2020i202104-202304

*633

23851AHOLDER, FUEL PRESSURE SENSOR, NO.2

main23851-25030i202104-202304

*632

main23851-F2030i202104-202304

*633

23891SPACER, FUEL DELIVERY

main23891-24010i202104-202304

*633,*632

main23891-24010i202305

*632

main23891-24010i202305

*633

23901TUBE SUB-ASSY, FUEL

main23901-F2061i202104-202304

main23901-F2240i202309

23910ATUBE SUB-ASSY, FUEL

main23901-24071i202104-202304

(J)

main23901-24081i202309

(J)

main23901-F2090i202104-202304

(L)

main23901-F2100i202309

(L)

7701FUEL TANK & TUBE

→ Go to FIG 77-01

8404ELECTRONIC FUEL INJECTION SYSTEM

→ Go to FIG 84-04

9010506350

main90105-06350

9010506352

main90105-06352

9010506376

main90105-06376

9010508510

main90105-08510

90105C0414

main90105-C0414

90105C0416

main90105-C0416

90105C0421

main90105-C0421

90105C0517

main90105-C0517

9030105013

main90301-05013

9030131016

main90301-31016

9052014004

main90520-14004

91551G0840

main91551-G0840

91553G1040

main91553-G1040

43 parts on this diagram · 2 diagrams in section

FUEL INJECTION SYSTEM for Toyota ALLION

This section contains 43 genuine Toyota parts for the FUEL INJECTION SYSTEM system of the Toyota ALLION. Key components include: BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR, GASKET, THROTTLE BODY, PUMP ASSY, FUEL (ENGINE ROOM SIDE), FLANGE, FUEL PUMP, GASKET, FUEL PUMP SPACER.
