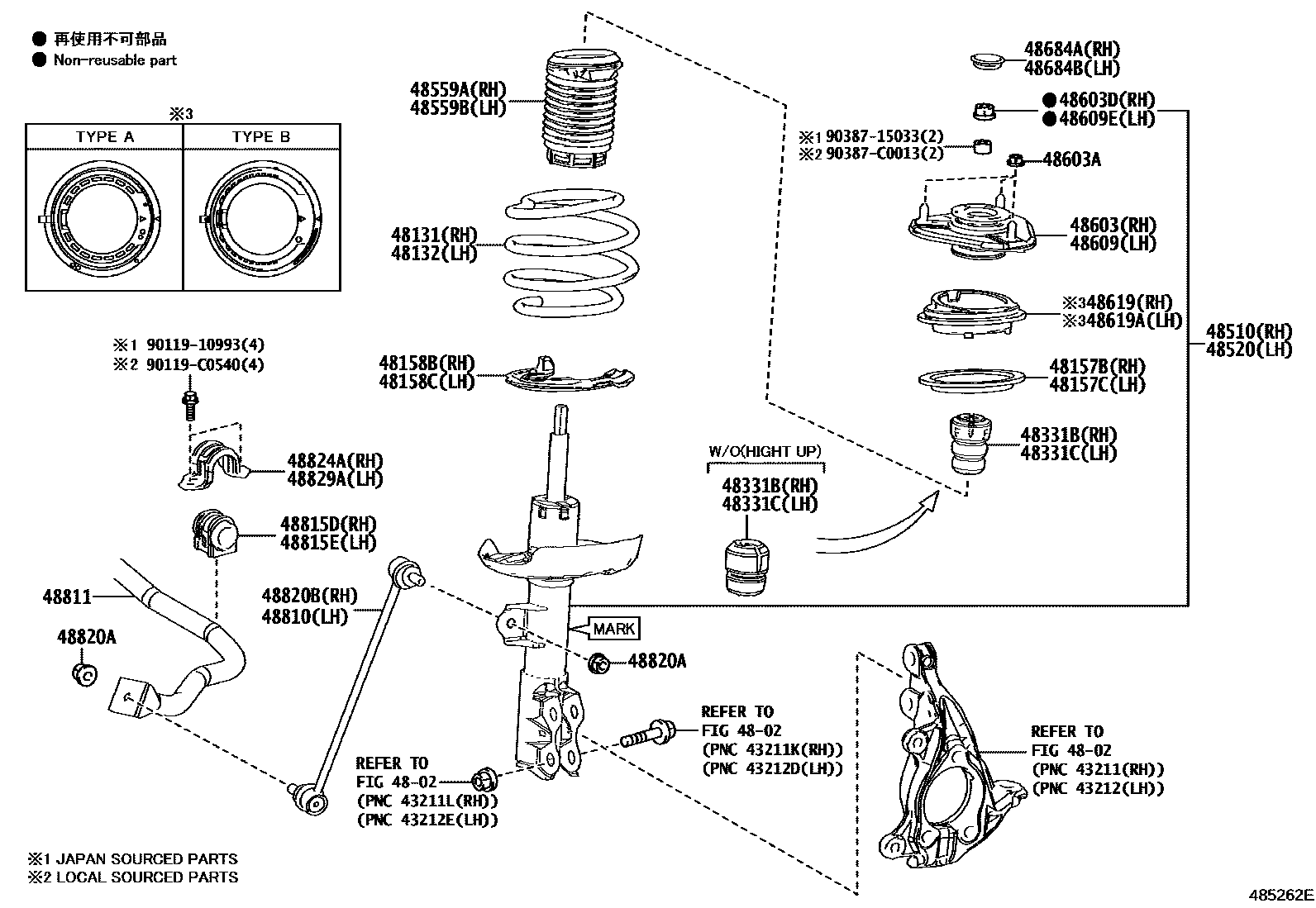

Toyota ALLION — FRONT SPRING & SHOCK ABSORBER
4802
48131SPRING, FRONT COIL, RH
ROUGH ROAD AREA SPEC-WITH(HEIGHT UP)
ROUGH ROAD AREA SPEC-WITH(HEIGHT UP)
48132SPRING, FRONT COIL, LH
ROUGH ROAD AREA SPEC-WITH(HEIGHT UP)
ROUGH ROAD AREA SPEC-WITH(HEIGHT UP)
48157BINSULATOR, FRONT COIL SPRING, UPPER RH
48157CINSULATOR, FRONT COIL SPRING, UPPER LH
48158BINSULATOR, FRONT COIL SPRING, LOWER RH
48158CINSULATOR, FRONT COIL SPRING, LOWER LH
48331BBUMPER, FRONT SPRING, RH
ROUGH ROAD AREA SPEC-WITH(HEIGHT UP)
48331CBUMPER, FRONT SPRING, LH
ROUGH ROAD AREA SPEC-WITH(HEIGHT UP)
48510ABSORBER ASSY, SHOCK, FRONT RH
MARK 48510-02J90
48520ABSORBER ASSY, SHOCK, FRONT LH
MARK 48520-02J90
48559ACOVER, FRONT SHOCK ABSORBER DUST, RH NO.1
48559BCOVER, FRONT SHOCK ABSORBER DUST, LH NO.1
48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH
48603ANUT(FOR FRONT SUSPENSION SUPPORT)
(J)
(L)
48603DNUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)
(J)
(L)
48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH
48609ENUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)
(J)
(L)
48619BEARING, STRUT MOUNTING, RH
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
48619ABEARING, STRUT MOUNTING, LH
TYPE A:REFER ILLUST.
48684ACOVER, FRONT SUSPENSION SUPPORT DUST, RH
(L)
(J)
48684BCOVER, FRONT SUSPENSION SUPPORT DUST, LH
(L)
48810LINK ASSY, FRONT STABILIZER, LH
48811BAR, STABILIZER, FRONT
48815DBUSH, FRONT STABILIZER BAR, RH
48815EBUSH, FRONT STABILIZER BAR, LH
48820ANUT(FOR FRONT STABILIZER LINK)
(L)
(J)
48820BLINK ASSY, FRONT STABILIZER, RH
48824ABRACKET, FRONT STABILIZER, NO.1 RH
48829ABRACKET, FRONT STABILIZER, NO.1 LH
9011910993
main90119-10993
90119C0540
main90119-C0540
9038715033
main90387-15033
90387C0013
main90387-C0013
34 parts on this diagram · 1 diagram in section
