Toyota ALLION — FRONT DOOR WINDOW REGULATOR & HINGE

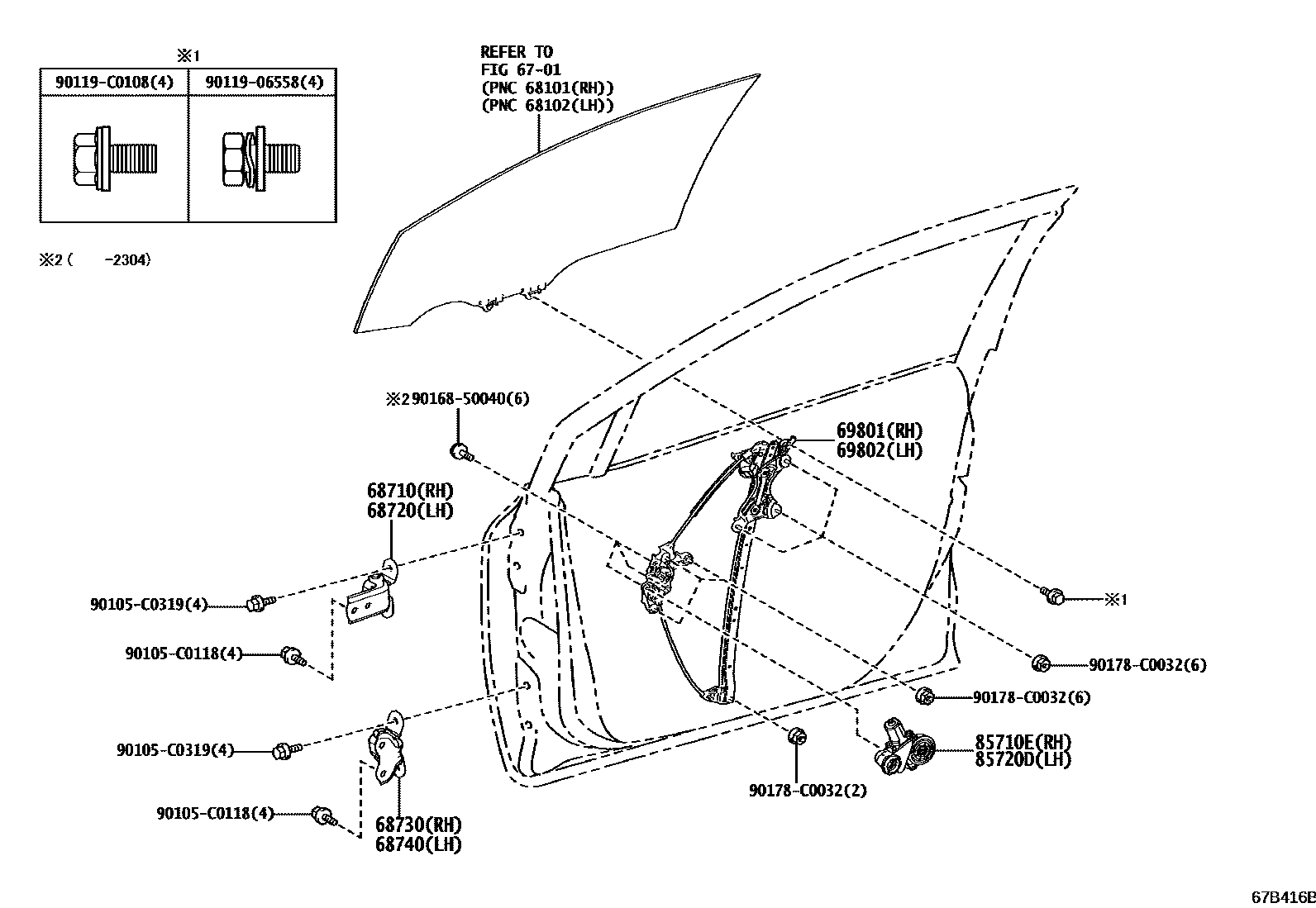

Parts diagram

6701FRONT DOOR PANEL & GLASS

→ Go to FIG 67-01

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-02031i202104-202304

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-02031i202104-202304

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-02061i202104-202304

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-02061i202104-202304

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-02442i202104-202106

main69801-02443i202107-202304

main69801-02490i202305

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-02452i202104-202106

main69802-02453i202107-202304

main69802-02500i202305

85710EMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-02650i202104-202304

main85710-02730i202305

85720DMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-02700i202104-202304

main85720-02780i202305

90105C0118

main90105-C0118

90105C0319

main90105-C0319

9011906558

main90119-06558

90119C0108

main90119-C0108

9016850040

main90168-50040

90178C0032

main90178-C0032

15 parts on this diagram · 1 diagram in section

FRONT DOOR WINDOW REGULATOR & HINGE for Toyota ALLION

This section contains 15 genuine Toyota parts for the FRONT DOOR WINDOW REGULATOR & HINGE system of the Toyota ALLION. Key components include: FRONT DOOR PANEL & GLASS, HINGE ASSY, FRONT DOOR, UPPER RH, HINGE ASSY, FRONT DOOR, UPPER LH, HINGE ASSY, FRONT DOOR, LOWER RH, HINGE ASSY, FRONT DOOR, LOWER LH.
