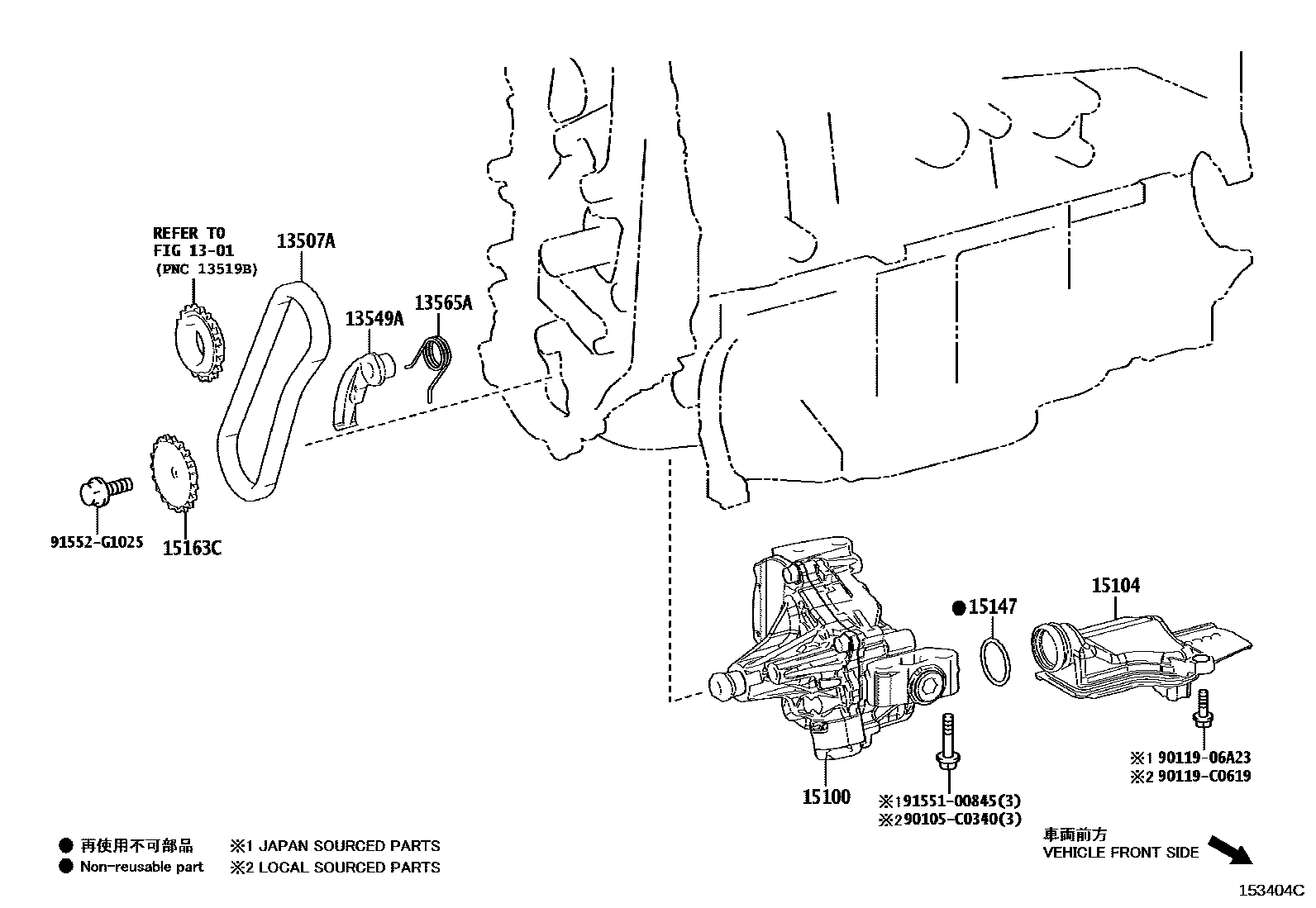

Toyota ALLION — ENGINE OIL PUMP

1301CRANKSHAFT & PISTON

→ Go to FIG 13-01

13507ACHAIN SUB-ASSY, OIL PUMP DRIVE

main13507-24020i202104-202304

*632

main13507-F2020i202104-202304

*633

13549APLATE, CHAIN TENSIONER

main13549-25020i202305

*632

main13549-F2020i202104-202304

*633

13565ASPRING, CHAIN DAMPER

main13565-25010i202104-202304

*632

main13565-F2020i202104-202304

*633

15100PUMP ASSY, OIL

main15100-24020i202305

*632

main15100-F2030i202305

*633

15104STRAINER SUB-ASSY, OIL

main15104-24010i202305

*632

main15104-F2050i202305

*633

15147GASKET, OIL STRAINER

main15147-25010i202305

*632

main15147-F2010i202104-202304

*633

15163CSPROCKET, OIL PUMP DRIVE SHAFT

main15163-25010i202104-202304

*632

main15163-F2020i202104-202304

*633

90105C0340

main90105-C0340

9011906A23

main90119-06A23

90119C0619

main90119-C0619

9155100845

main91551-00845

91552G1025

main91552-G1025

13 parts on this diagram · 1 diagram in section

ENGINE OIL PUMP for Toyota ALLION

This section contains 13 genuine Toyota parts for the ENGINE OIL PUMP system of the Toyota ALLION. Key components include: CRANKSHAFT & PISTON, CHAIN SUB-ASSY, OIL PUMP DRIVE, PLATE, CHAIN TENSIONER, SPRING, CHAIN DAMPER, PUMP ASSY, OIL.
