Toyota ALLION — ELECTRONIC FUEL INJECTION SYSTEM

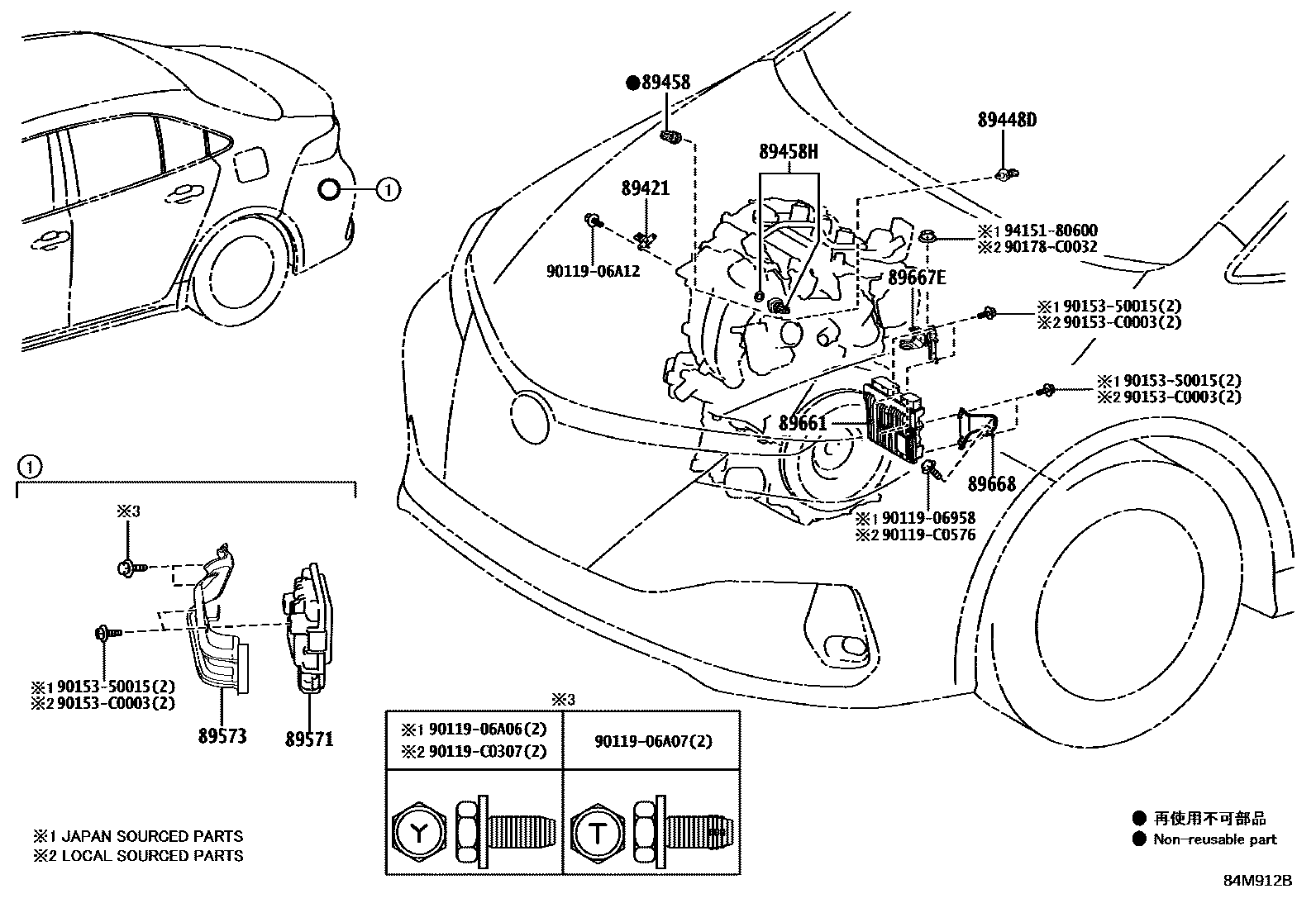

Parts diagram

89421SENSOR ASSY, VACUUM (FOR E.F.I.)

main89421-33010i202104-202304

89448DSENSOR, OIL PRESSURE & TEMPERATURE

main89448-0R010i202403

(L)

main89448-33010i202104-202304

89458SENSOR, FUEL PRESSURE

main89458-0R010i202403

(L)

main89458-33030i202104-202304

89458HSENSOR, FUEL PRESSURE, NO.2

main89458-0R020i202403

(L)

main89458-33041i202104-202206

main89458-33042i202207-202304

89571COMPUTER, FUEL PUMP CONTROL

main89571-48010i202104-202304

89573BRACKET, FUEL PUMP CONTROL COMPUTER

main89573-02090i202104-202304

89661COMPUTER, ENGINE CONTROL

main89661-0A380i202309

DENSO,*614

main89666-02C70i202104-202304

DENSO

main89666-02J10i202305

DENSO,*614

89667EBRACKET, ENGINE CONTROL COMPUTER, NO.1

main89667-0A040i202309

main89667-F4060i202104-202304

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-0A050i202309

main89668-F4080i202104-202304

9011906958

main90119-06958

9011906A06

main90119-06A06

9011906A07

main90119-06A07

9011906A12

main90119-06A12

90119C0307

main90119-C0307

90119C0576

main90119-C0576

9015350015

main90153-50015

90153C0003

main90153-C0003

90178C0032

main90178-C0032

9415180600

main94151-80600

19 parts on this diagram · 2 diagrams in section

ELECTRONIC FUEL INJECTION SYSTEM for Toyota ALLION

This section contains 19 genuine Toyota parts for the ELECTRONIC FUEL INJECTION SYSTEM system of the Toyota ALLION. Key components include: SENSOR ASSY, VACUUM (FOR E.F.I.), SENSOR, OIL PRESSURE & TEMPERATURE, SENSOR, FUEL PRESSURE, SENSOR, FUEL PRESSURE, NO.2, COMPUTER, FUEL PUMP CONTROL.
