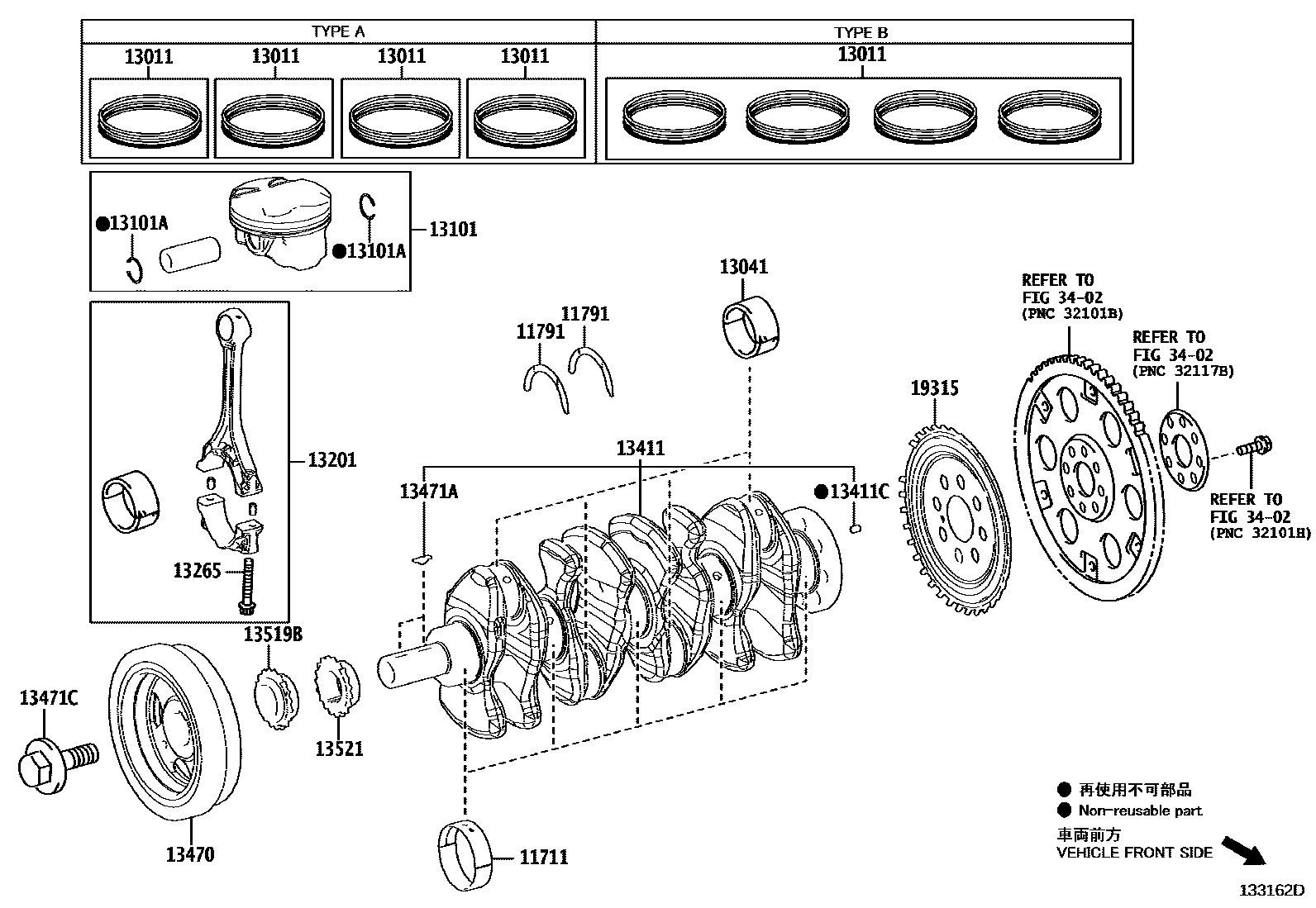

Toyota ALLION — CRANKSHAFT & PISTON

11711BEARING, CRANKSHAFT

main11701-24010-01×5i202104-202304

MARK 1,*632:REFER R/M

main11701-24010-02×5i202104-202304

MARK 2,*632:REFER R/M

main11701-24010-03×5i202104-202304

MARK 3,*632:REFER R/M

main11701-24010-04×5i202104-202304

MARK 4,*632:REFER R/M

main11701-24010-05×5i202104-202304

MARK 5,*632:REFER R/M

main11701-24010-06×5i202104-202304

MARK 6,*632:REFER R/M

main11701-24011-01×5i202305

MARK 1,*632:REFER R/M

main11701-24011-02×5i202305

MARK 2,*632:REFER R/M

main11701-24011-03×5i202305

MARK 3,*632:REFER R/M

main11701-24011-04×5i202305

MARK 4,*632:REFER R/M

main11701-24011-05×5i202305

MARK 5,*632:REFER R/M

main11701-24011-06×5i202305

MARK 6,*632:REFER R/M

main11701-F2020-01×5i202104-202304

MARK 1,*633:REFER R/M

main11701-F2020-02×5i202305

MARK 2,*633:REFER R/M

main11701-F2020-03×5i202305

MARK 3,*633:REFER R/M

main11701-F2020-04×5i202104-202304

MARK 4,*633:REFER R/M

main11701-F2020-05×5i202305

MARK 5,*633:REFER R/M

main11701-F2020-06×5i202305

MARK 6,*633:REFER R/M

11791WASHER, CRANKSHAFT THRUST, UPPER

main11791-15030×2i202305

STD,*632

main11791-F2030×2i202305

STD,*633

13011RING SET, PISTON

main13011-24040i202305

STD,TYPE B:REFER ILLUST.

main13011-F2030×4i202309

STD

13041BEARING, CONNECTING ROD

main13041-24020-01×4i202104-202304

MARK 1,*632:REFER R/M

main13041-24020-02×4i202104-202304

MARK 2,*632:REFER R/M

main13041-24020-03×4i202305

MARK 3,*632:REFER R/M

main13041-F2020-01×4i202104-202304

MARK 1,*633:REFER R/M

main13041-F2020-02×4i202305

MARK 2,*633:REFER R/M

main13041-F2020-03×4i202104-202304

MARK 3,*633:REFER R/M

13101PISTON SUB-ASSY, W/PIN

main13101-24040×4i202104-202304

STD,*633,*632

main13101-F2110×4i202309

STD

13101ARING, HOLE SNAP(FOR PISTON PIN)

main90520-19019×8i202104-202304

*633

13201ROD SUB-ASSY, CONNECTING

main13201-29835-A0×4i202104-202304

MARK A,*632:REFER R/M

main13201-29835-B0×4i202305

MARK B,*632:REFER R/M

main13201-29835-C0×4i202305

MARK C,*632:REFER R/M

main13201-F9030-A0×4i202104-202304

MARK A,*633:REFER R/M

main13201-F9030-B0×4i202305

MARK B,*633:REFER R/M

main13201-F9030-C0×4i202104-202304

MARK C,*633:REFER R/M

13265BOLT, CONNECTING ROD

main13265-25020×8i202104-202304

*632

main13265-F2010×8i202104-202304

*633

13411CRANKSHAFT

main13401-24010i202104-202304

*632

main13401-F2070i202305

*633

13411CPIN, STRAIGHT(FOR CRANKSHAFT)

main90250-06035i202305

*632; *633

13470PULLEY ASSY, CRANKSHAFT

main13470-24010i202104-202304

*632

main13470-24020i202309-202401

main13470-F2010i202305

*633

main13470-F2040i202401

(L)

13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)

main90280-04001×2i202305

*632; *633

13471CBOLT(FOR CRANKSHAFT PULLEY SET)

main90119-16020i202104-202304

*632

main90119-C0429i202305

*633

13519BSPROCKET, OIL PUMP DRIVE

main13519-24010i202104-202304

*632

main13519-F2040i202104-202304

*633

13521GEAR OR SPROCKET, CRANKSHAFT TIMING

main13521-24010i202305

*632

main13521-F2040i202104-202304

*633

19315PLATE, CRANK ANGLE SENSOR, NO.1

main19315-24010i202104-202304

*632

main19315-F2020i202104-202304

*633

3402TORQUE CONVERTER, FRONT OIL PUMP(CVT)

→ Go to FIG 34-02

17 parts on this diagram · 2 diagrams in section

CRANKSHAFT & PISTON for Toyota ALLION

This section contains 20 genuine Toyota parts for the CRANKSHAFT & PISTON system of the Toyota ALLION. Key components include: BEARING, CRANKSHAFT, WASHER, CRANKSHAFT THRUST, UPPER, RING SET, PISTON, BEARING, CONNECTING ROD, PISTON SUB-ASSY, W/PIN.
