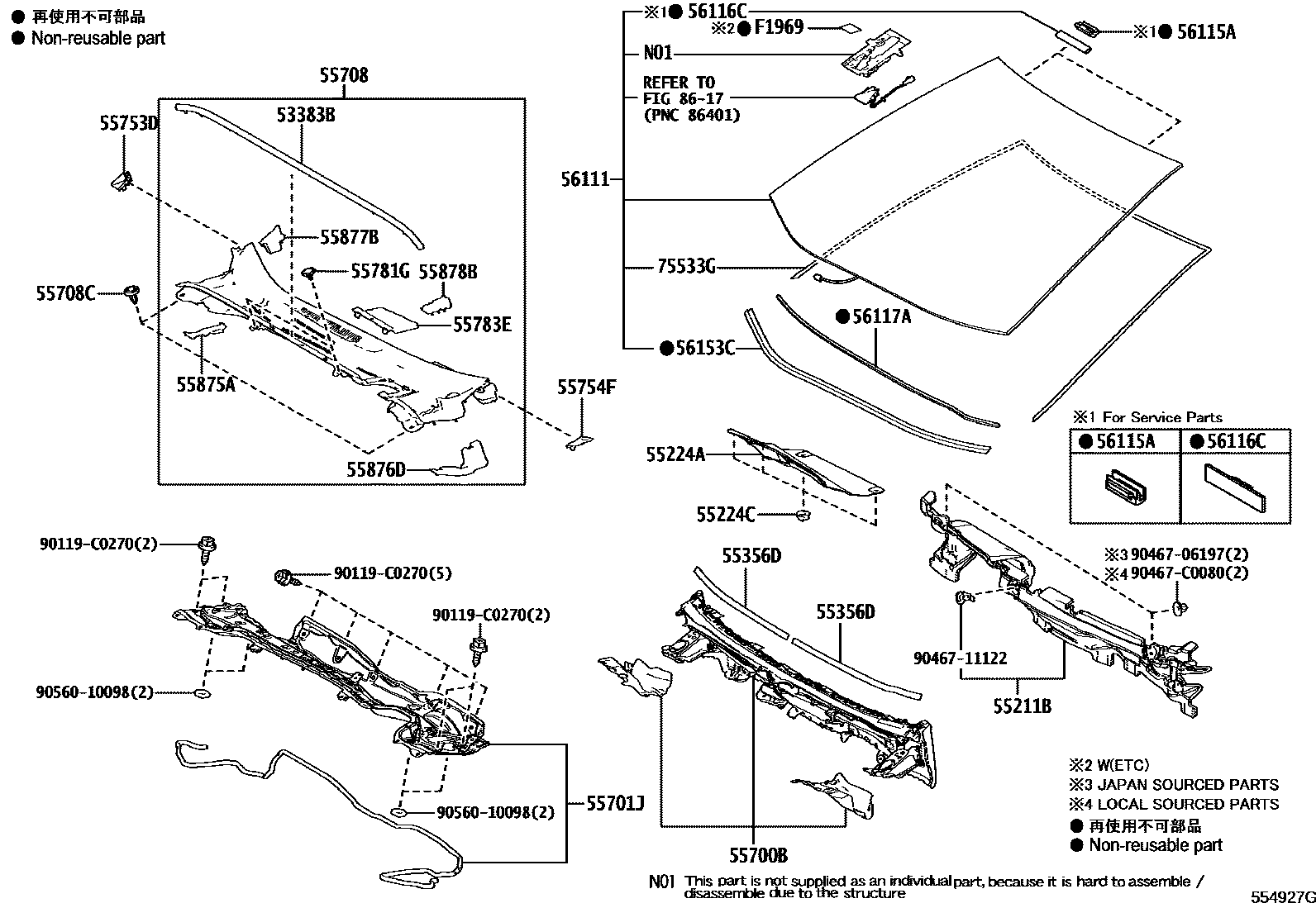

Toyota ALLION — COWL PANEL & WINDSHIELD GLASS

0001 1 0002 1

53383BSEAL, HOOD TO COWL TOP

main53383-02330iMZEA12,MZEH16202305

55211BSILENCER, FRONT PANEL

main55211-02370iMZEA12202104-202304

main55211-02420iMZEH16202309

(L)

main55211-12790iMZEH16202309

(J)

55224AINSULATOR, DASH PANEL, OUTER NO.2

main55224-02310iMZEA12202104-202304

55224CCLIP, DASH PANEL INSULATOR

main90467-06206-C0×4iMZEA12202305

BLACK,(J)

main90467-C0052-C0×4iMZEA12202104-202304

BLACK,(L)

55356DCUSHION, INSTRUMENT PANEL, NO.2

main55356-02560×2iMZEA12202104-202304

55700BCOWL ASSY

main55700-02750iMZEA12202104-202304

main55700-02751iMZEA12,MZEH16202309

55701JPANEL SUB-ASSY, COWL TOP, OUTER

main55701-02690iMZEA12202104-202304

55708LOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-02B40iMZEA12202104-202304

main55708-02C80iMZEA12,MZEH16202305-202312

main55708-02C81iMZEA12,MZEH16202401

55708CCLIP, COWL TOP VENTILATOR LOUVER

main90467-09242×2iMZEA12202104-202304

(J)

main90467-C0071×2iMZEA12202104-202304

(L)

55753DSHIELD, COWL WATER EXTRACT, RH

main55753-02250iMZEA12202104-202304

main55753-02300iMZEA12,MZEH16202305

55754FSHIELD, COWL WATER EXTRACT, LH

main55754-02260iMZEA12202104-202304

main55754-02310iMZEA12,MZEH16202305

55781LOUVER, COWL VENTILATOR

main55781-02A00iMZEA12,MZEH16202305

55781GCLIP, COWL TOP VENTILATOR LOUVER

main90467-07224×2iMZEA12202104-202304

55783ELOUVER, COWL TOP VENTILATOR, CENTER

main55783-02390iMZEA12202104-202304

main55783-02470iMZEA12,MZEH16202305

55875ASEAL, AIR DUCT, NO.5

main55875-02280iMZEA12202104-202304

55876DSEAL, AIR DUCT, NO.6

main55876-02190iMZEA12202104-202304

55877BCOVER, COWL VENT, RH

main55877-02340iMZEA12202104-202304

55878BCOVER, COWL VENT, LH

main55878-02280iMZEA12202104-202304

56111GLASS, WINDSHIELD

main56101-0Z200iMZEA12..E,N202104-202304

MARK=CCC E006888

main56101-0Z210iMZEA12..E,N202104-202304

MARK=CCC E000546

main56101-0Z570iMZEA12..G202104-202304

LEATHER PACKAGE

main56101-0ZD30iMZEA12,MZEH16202305

MARK=CCC E006888

main56101-0ZG20iMZEA12,MZEH16202305

MARK=CCC E008925

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-30100iMZEA12,MZEH16202305

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050iMZEA12,MZEH16202305

56117ADAM, WINDOW GLASS ADHESIVE

main56117-02360iMZEA12202104-202304

L=1298,LEATHER PACKAGE

56153CMOULDING, FRONT WINDOW, INNER CENTER

main56153-02120iMZEA12202104-202304

75533GMOULDING, WINDSHIELD, OUTSIDE

main75533-02260iMZEA12..E202104-202304

GLASS MARK=E006888

main75533-02270iMZEA12,MZEH16202305

GLASS MARK=E008925

8617

F1969TAPE, SEAL(FOR TOLL COLLECTION COMPUTER)

mainF1969YY010iMZEA12202104-202207

ETC-WITH

mainF1969YY020iMZEA12202207-202304

ETC-WITH

90119C0270

main90119-C0270

9046706197

main90467-06197

9046711122

main90467-11122

90467C0080

main90467-C0080

9056010098

main90560-10098

31 parts on this diagram · 2 diagrams in section
