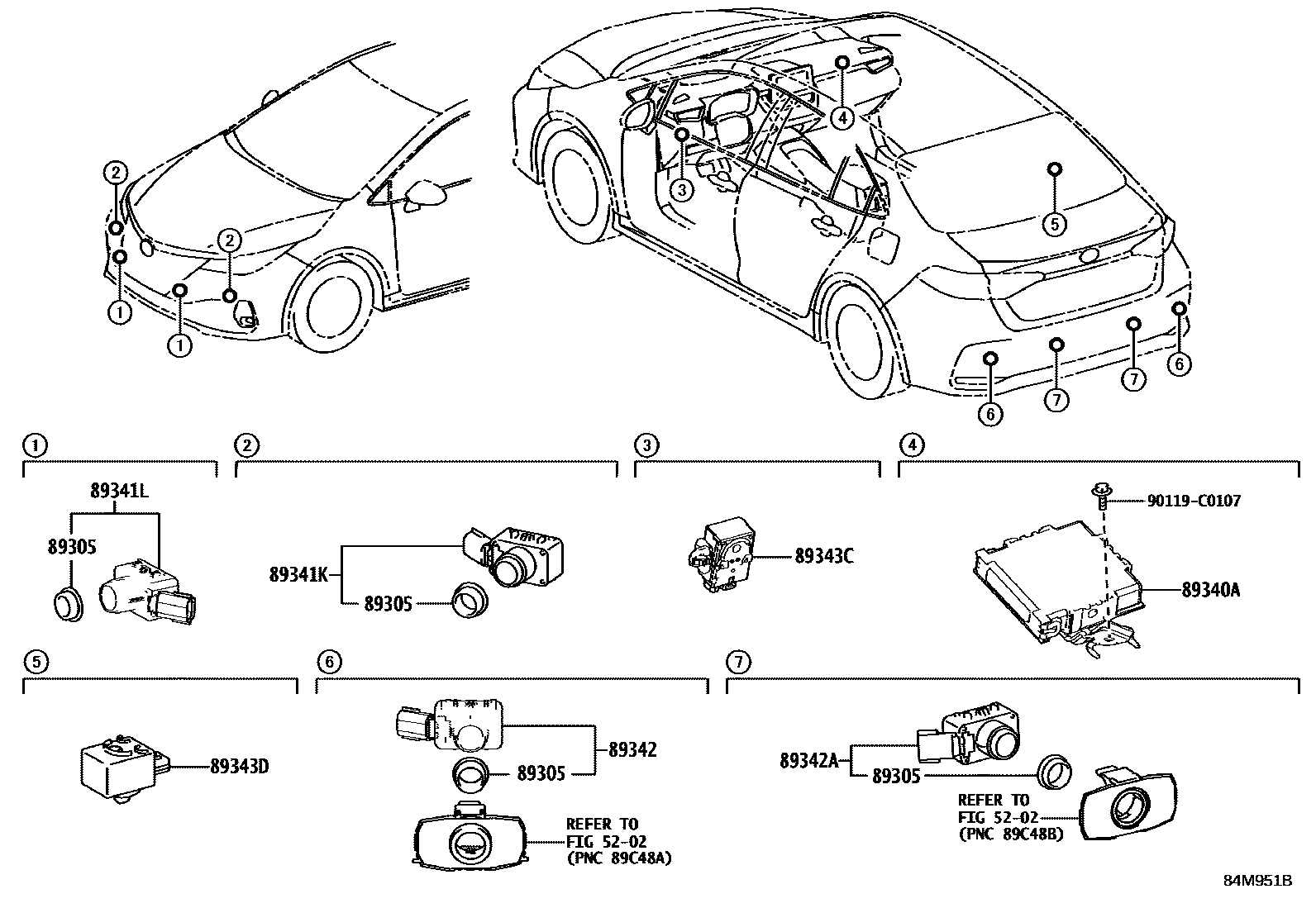

Toyota ALLION — CLEARANCE & BACK SONAR

5202REAR BUMPER & BUMPER STAY

→ Go to FIG 52-02

89305CUSHION SET, ULTRASONIC SENSOR

main89305-52010i202305

89340ACOMPUTER ASSY, CLEARANCE WARNING

main89340-02140i202104-202304

main89340-02370i202305

*614

89341KSENSOR, ULTRASONIC, FRONT CORNER

main89341-0R080-C1×2i202104-202206

DUMMY-MAT BLACK

main89341-0R100-C0×2i202207-202304

DUMMY-MAT BLACK

89341LSENSOR, ULTRASONIC, FRONT CENTER

main89341-0R080-C3×2i202104-202206

BLACK,BLACK PAINT

main89341-0R100-C3×2i202207-202304

BLACK,BLACK PAINT

89342SENSOR, ULTRASONIC, REAR CORNER

main89341-0R080-A0×2i202111-202206

PLATINUM WHITE PEARL MC.,089

main89341-0R080-A1×2i202104-202206

SUPER WHITE 2,040

main89341-0R080-A2×2i202104-202111

WHITE PEARL CS.,070

main89341-0R080-B3×2i202104-202206

SILVER ME.,1F7

main89341-0R080-B4×2i202309

SILVER ME.,1L0,MARK 89341-0R080

main89341-0R080-C4×2i202104-202206

SPARKLING BLACK PEARL CS.,220

main89341-0R080-D1×2i202104-202206

RED MC.,3T3

main89341-0R080-E0×2i202104-202206

AVANT-GARDE BRONZE ME.,4V8

main89341-0R080-J3×2i202309

NEBULA BLUE ME.,8X2,MARK 89341-0R080

main89341-0R100-A0×2i202207-202304

PLATINUM WHITE PEARL MC.,089

main89341-0R100-A1×2i202309

SUPER WHITE 2,040,MARK 89341-0R100

main89341-0R100-B1×2i202309

SILVER ME.,1L0,MARK 89341-0R100

main89341-0R100-B4×2i202207-202304

SILVER ME.,1F7

main89341-0R100-C4×2i202309

SPARKLING BLACK PEARL CS.,220,MARK 89341-0R100

main89341-0R100-D1×2i202305-202309

RED MC.,3T3

main89341-0R100-E2×2i202309

AVANT-GARDE BRONZE ME.,4V8,MARK 89341-0R100

main89341-0R100-J0×2i202305-202309

NEBULA BLUE ME.,8X2

89342ASENSOR, ULTRASONIC, REAR CENTER

main89341-0R080-A0×2i202309

PLATINUM WHITE PEARL MC.,089,MARK 89341-0R080

main89341-0R080-A1×2i202104-202206

SUPER WHITE 2,040

main89341-0R080-A2×2i202104-202111

WHITE PEARL CS.,070

main89341-0R080-B3×2i202104-202206

SILVER ME.,1F7

main89341-0R080-B4×2i202309

SILVER ME.,1L0,MARK 89341-0R080

main89341-0R080-C4×2i202309

SPARKLING BLACK PEARL CS.,220,MARK 89341-0R080

main89341-0R080-D1×2i202104-202206

RED MC.,3T3

main89341-0R080-E0×2i202309

AVANT-GARDE BRONZE ME.,4V8,MARK 89341-0R080

main89341-0R080-J3×2i202309

NEBULA BLUE ME.,8X2,MARK 89341-0R080

main89341-0R100-A0×2i202207-202304

PLATINUM WHITE PEARL MC.,089

main89341-0R100-A1×2i202305-202309

SUPER WHITE 2,040

main89341-0R100-B1×2i202305-202309

SILVER ME.,1L0

main89341-0R100-B4×2i202207-202304

SILVER ME.,1F7

main89341-0R100-C4×2i202207-202304

SPARKLING BLACK PEARL CS.,220

main89341-0R100-D1×2i202309

RED MC.,3T3,MARK 89341-0R100

main89341-0R100-E2×2i202207-202304

AVANT-GARDE BRONZE ME.,4V8

main89341-0R100-J0×2i202305-202309

NEBULA BLUE ME.,8X2

89343CBUZZER, CLEARANCE WARNING, NO.1

main89343-02010i202104-202304

89343DBUZZER, CLEARANCE WARNING, NO.2

main89747-30040i202104-202304

90119C0107

main90119-C0107

10 parts on this diagram · 1 diagram in section

CLEARANCE & BACK SONAR for Toyota ALLION

This section contains 10 genuine Toyota parts for the CLEARANCE & BACK SONAR system of the Toyota ALLION. Key components include: REAR BUMPER & BUMPER STAY, CUSHION SET, ULTRASONIC SENSOR, COMPUTER ASSY, CLEARANCE WARNING, SENSOR, ULTRASONIC, FRONT CORNER, SENSOR, ULTRASONIC, FRONT CENTER.
