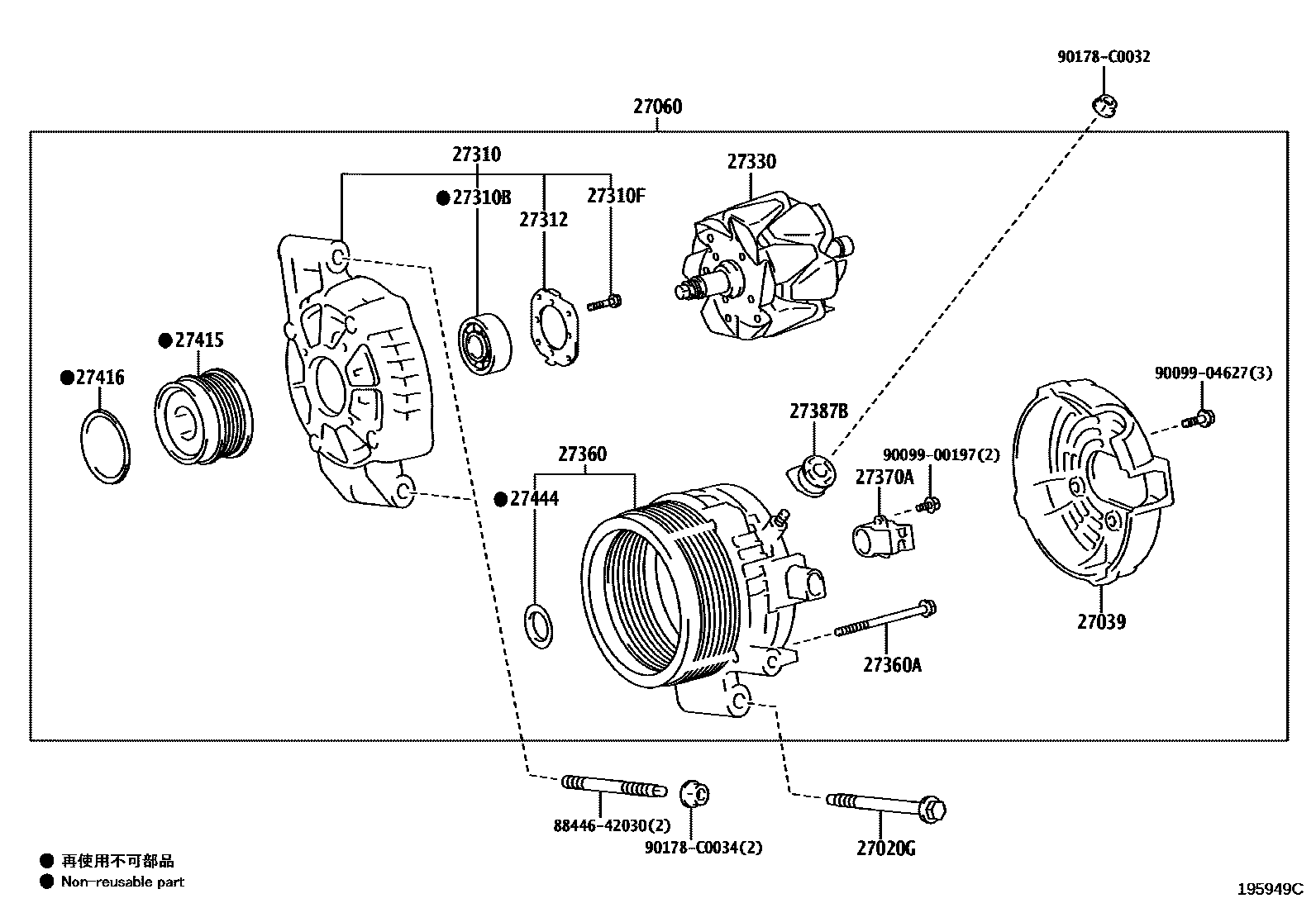

Toyota ALLION — ALTERNATOR

27020GBOLT, NO.2(FOR ALTERNATOR)

main90119-08C78i202104-202304

27039COVER, ALTERNATOR REAR END

main27039-0C180i202104-202304

27060ALTERNATOR ASSY, W/REGULATOR

main27060-F2150i202104-202304

main27060-F2210i202305

12V 100A

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-F2170i202305

main27310-F3010i202104-202304

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90068-10033i202305

main90068-10051i202104-202304

27310FSCREW(FOR ALTERNATOR DRIVE END FRAME)

main90099-00268i202104-202304

27312PLATE, RETAINER

main27312-0M070i202104-202304

27330ROTOR ASSY, ALTERNATOR

main27330-0T260i202104-202304

27360COIL ASSY, ALTERNATOR

main27360-F2070i202104-202304

27360ABOLT(FOR ALTERNATOR COIL)

main90099-04626i202104-202304

27370AHOLDER ASSY, ALTERNATOR BRUSH

main27370-0T030i202104-202304

27387BINSULATOR, ALTERNATOR TERMINAL

main27387-0H110i202104-202304

27415PULLEY, ALTERNATOR W/CLUTCH

main27415-F2040i202104-202304

27416CAP, ALTERNATOR PULLEY

main27416-0W050i202104-202107

main27416-F0010i202107-202304

27444PACKING, ALTERNATOR BEARING COVER

main27444-0Y180i202104-202304

8844642030BOLT, IDLE PULLEY

main88446-42030

9009900197

main90099-00197

9009904627

main90099-04627

90178C0032

main90178-C0032

90178C0034

main90178-C0034

20 parts on this diagram · 2 diagrams in section

ALTERNATOR for Toyota ALLION

This section contains 22 genuine Toyota parts for the ALTERNATOR system of the Toyota ALLION. Key components include: BOLT, NO.2(FOR ALTERNATOR), COVER, ALTERNATOR REAR END, ALTERNATOR ASSY, W/REGULATOR, FRAME ASSY, DRIVE END, ALTERNATOR, BEARING(FOR ALTERNATOR DRIVE END FRAME).
