Toyota AGYA/WIGO — SWITCH & RELAY & COMPUTER

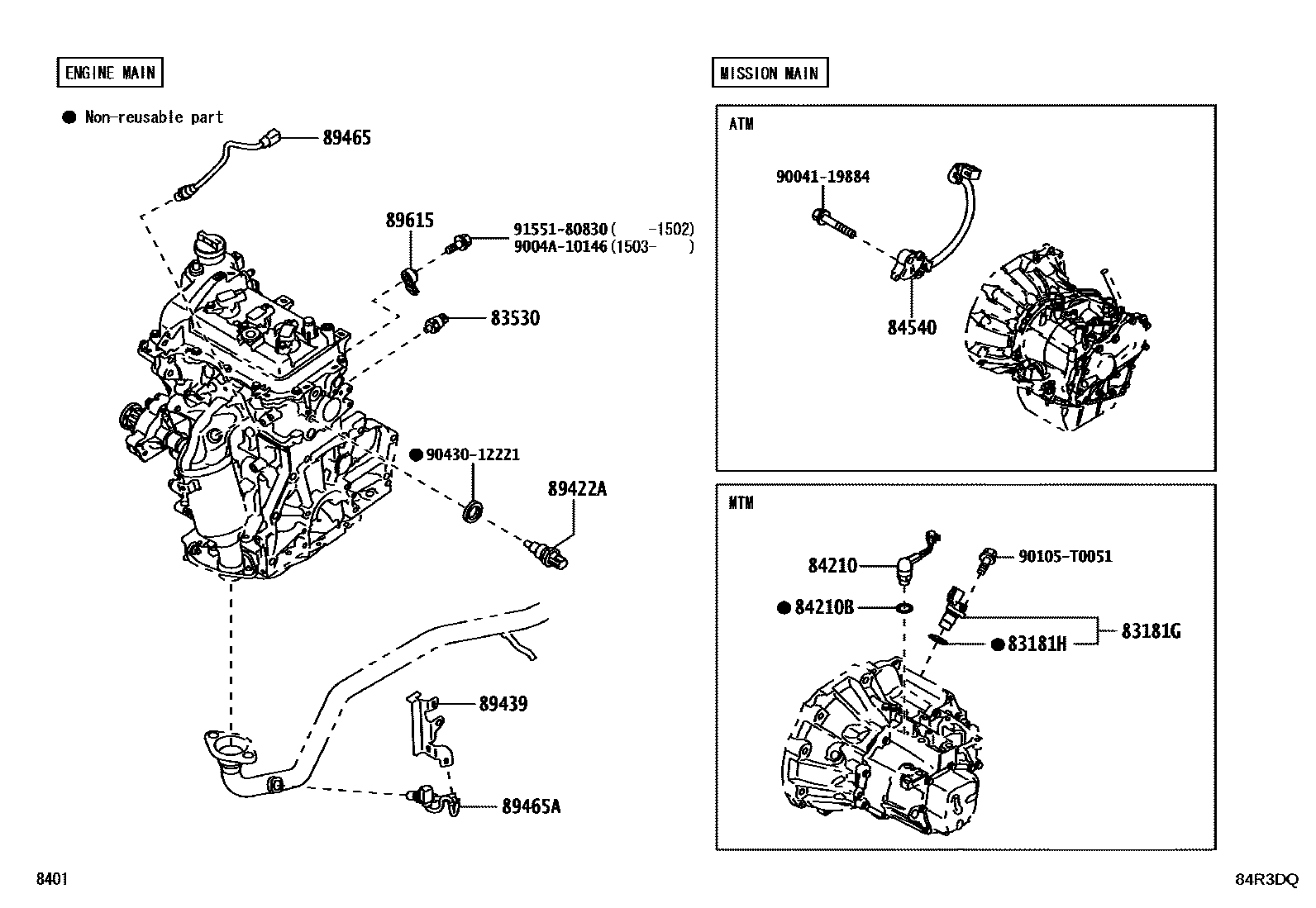

Parts diagram

83181GSENSOR, SPEEDOMETER

main83181-B6010i201212-201704

WITH(PACKAGE OPTION 2)

83181HRING, O (FOR SPEEDOMETER SENSOR)

main90043-01278i201212-201704

WITH(PACKAGE OPTION 2)

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-52050i201701-201704

main83530-60020i201212-201612

84210SWITCH ASSY, BACK-UP LAMP

main84210-BZ070i202003

84210BGASKET, BACK-UP LAMP SWITCH

main9004A-43006i202003

84540SWITCH ASSY, NEUTRAL START

main84540-B1020i201212-201704

main84540-B1030i201704-202003

89422ASENSOR, WATER TEMPERATURE

main89422-33030i201704-202003

main89422-BZ030i201704-202003

89439BRACKET, SENSOR

main89439-BZ120i202003

main89439-BZ170i201810-202003

BRUNEI; GENERAL EXP(W/O HEATER)

89465SENSOR, OXYGEN

main89465-BZ360i201212-201704

main89465-BZ390i201212-201704

main89465-BZ470i201704-201810

W/PART NUMBER MARK

main89465-BZ480i202003-202005

main89465-BZ540i202006

89465ASENSOR, OXYGEN NO.2

main89465-BZ330i201601-201704

main89465-BZ400i201601-201704

main89465-BZ450i201810-202003

BRUNEI; GENERAL EXP(W/O HEATER)

main89465-BZ460i201810-202003

main89465-BZ490i202003

89615SENSOR, KNOCK CONTROL

main89615-BZ040i201704-202003

main89615-BZ060i201704-202003

9004119884

main90041-19884

9004A10146

main9004A-10146

90105T0051

main90105-T0051

9043012221

main90430-12221

9155180830

main91551-80830

16 parts on this diagram · 25 diagrams in section

SWITCH & RELAY & COMPUTER for Toyota AGYA/WIGO

This section contains 118 genuine Toyota parts for the SWITCH & RELAY & COMPUTER system of the Toyota AGYA/WIGO. Key components include: RELAY ASSY, STARTER, RELAY, IGNITION, NO.1, SENSOR ASSY, BATTERY CURRENT, CLUTCH PEDAL & FLEXIBLE HOSE, STEERING COLUMN & SHAFT.
