Toyota AGYA/WIGO — PARTIAL ENGINE ASSEMBLY

Parts diagram

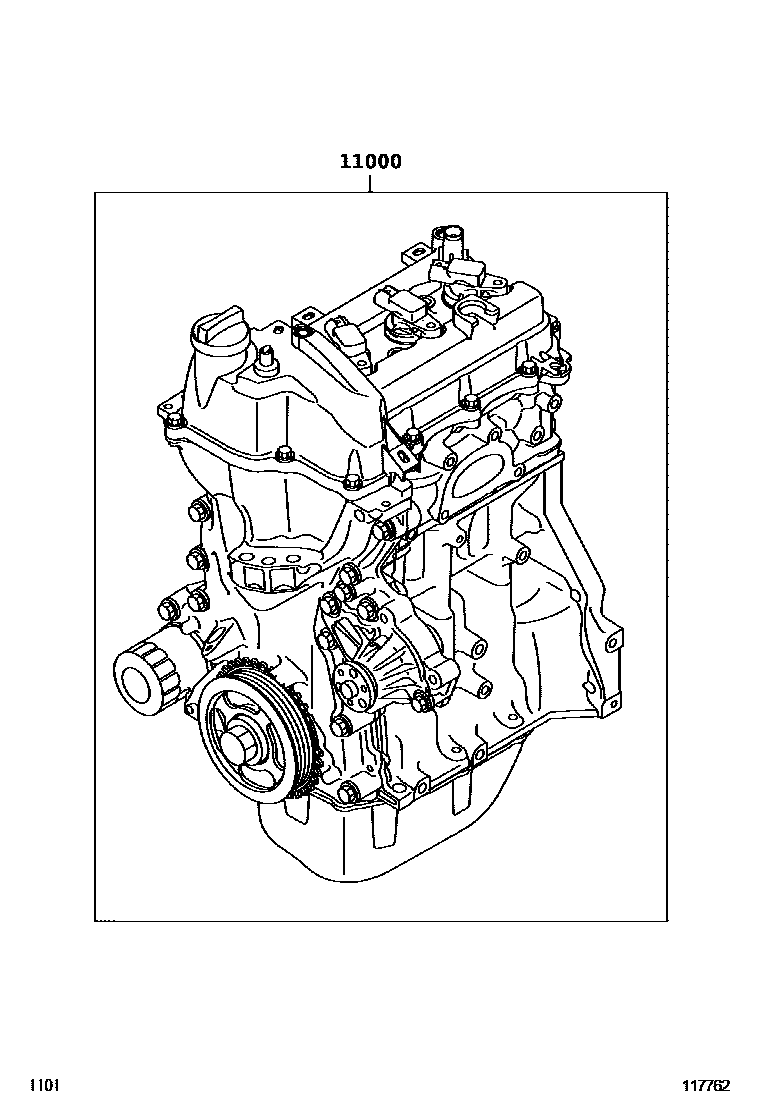

11000ENGINE ASSY, PARTIAL

main19000-BZ011i201212-201308

main19000-BZ012i201308-201310

main19000-BZ013i201310-201403

main19000-BZ014i201403-201407

main19000-BZ015i201407-201501

main19000-BZ016i201501-201602

main19000-BZ017i201602-201704

main19000-BZ021i201212-201308

main19000-BZ022i201308-201310

main19000-BZ023i201310-201403

main19000-BZ024i201403-201407

main19000-BZ027i201407-201501

main19000-BZ028i201501-201602

main19000-BZ029i201602-201704

main19000-BZ035i202003

main19000-BZX40i202003

1 parts on this diagram · 2 diagrams in section

PARTIAL ENGINE ASSEMBLY for Toyota AGYA/WIGO

This section contains 1 genuine Toyota parts for the PARTIAL ENGINE ASSEMBLY system of the Toyota AGYA/WIGO. Key components include: ENGINE ASSY, PARTIAL.
