Toyota AGYA/WIGO — METER

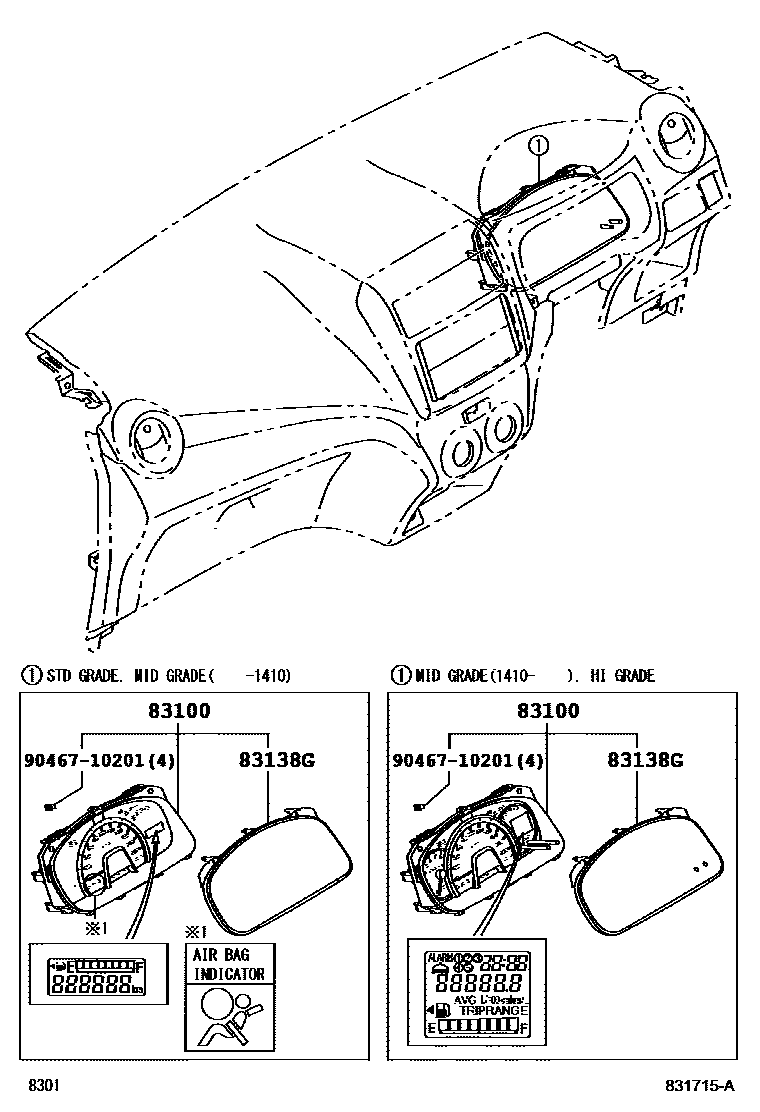

83100METER ASSY, COMBINATION

main83800-BYA00supersedes 83800-BYP80i201704-202003

L/AIR BAG INDICATOR; W/ABS,L/AIR BAG INDICATOR

main83800-BYA40supersedes 83800-BYP60i201704-202003

L/AIR BAG INDICATOR; W/ABS,L/AIR BAG INDICATOR

main83800-BYA70supersedes 83800-BYQ20i201712-202003

L/AIR BAG INDICATOR

main83800-BYA80supersedes 83800-BYQ00i201712-202003

L/AIR BAG INDICATOR

main83800-BYP70i202003

DENSO,ABS,L/AIR BAG INDICATOR; DENSO,L/AIR BAG INDICATOR

main83800-BYP90i202003

DENSO,ABS,L/AIR BAG INDICATOR; DENSO,L/AIR BAG INDICATOR

main83800-BYQ10i202003

DENSO,ABS,L/AIR BAG INDICATOR; DENSO,L/AIR BAG INDICATOR

main83800-BYQ30i202003

DENSO,ABS,L/AIR BAG INDICATOR; DENSO,L/AIR BAG INDICATOR

main83800-BZS20supersedes 83800-BZS11i201212-201410

main83800-BZS30i201212-201410

main83800-BZS40i201410-201704

main83800-BZS52i201401-201704

main83800-BZS60i201410-201704

main83800-BZT50i201401-201704

main83800-BZT00supersedes 83800-BZS60i201512-201704

BRUNEI&WITH(PACKAGE OPTION 2)&SRS AIR BAG-D/P,L/AIR BAG INDICATOR

main83800-BZT41i201212-201704

WITH(PACKAGE OPTION 2)&SRS AIR BAG-D/P

83138GGLASS, COMBINATION METER

main83852-BZ150i201212-201704

main83852-BZ160i201410-201704

9046710201

main90467-10201

3 parts on this diagram · 2 diagrams in section

METER for Toyota AGYA/WIGO

This section contains 3 genuine Toyota parts for the METER system of the Toyota AGYA/WIGO. Key components include: METER ASSY, COMBINATION, GLASS, COMBINATION METER.
