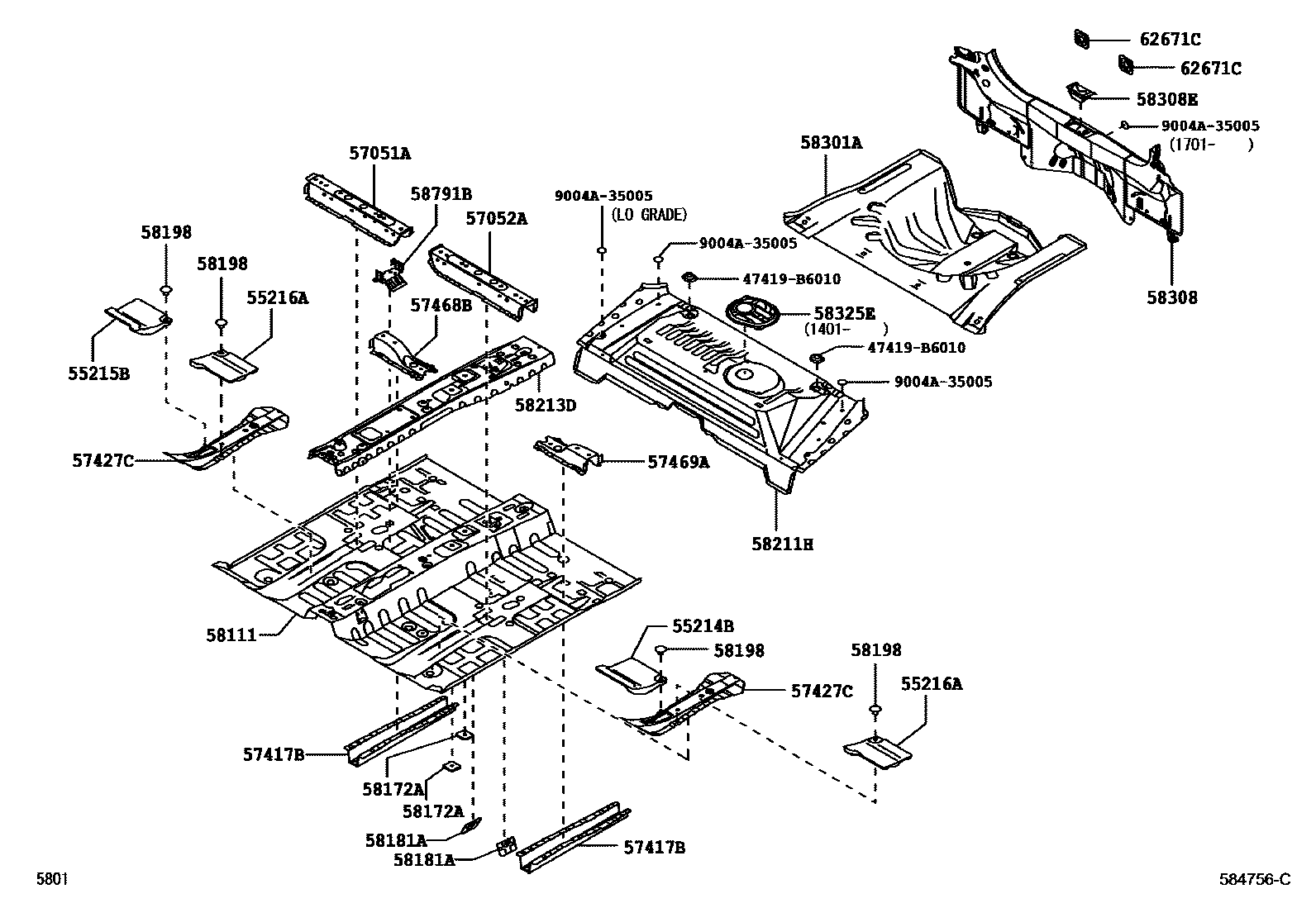

Toyota AGYA/WIGO — FLOOR PAN & LOWER BACK PANEL
55214BPAD, DASH PANEL INSULATOR, NO.2
55215BPAD, DASH PANEL INSULATOR, NO.3
55216APAD, DASH PANEL INSULATOR, NO.4
57051AMEMBER SUB-ASSY, FRONT FLOOR CROSS, RH
57052AMEMBER SUB-ASSY, FRONT FLOOR CROSS, LH
57417BREINFORCEMENT, FRONT FLOOR UNDER
57427CREINFORCEMENT, FRONT FLOOR, UPPER
57468BBRACKET, FRONT SEAT, REAR
57469ABRACKET, FRONT SEAT, OUTSIDE, REAR LH
58172APLATE, PARKING BRAKE MOUNTING
58181ARETAINER, SEAT RAIL, FRONT
58198CLIP, FOOTREST
DK.GRAY
BLACK
58213DREINFORCEMENT, CENTER FLOOR PANEL
58308PANEL SUB-ASSY, BODY LOWER BACK, INNER
58308ECOVER, HOLE(FOR LOWER BACK)
DK.GRAY,TRIM1#
BLACK,TRIM2#
58325ECOVER, REAR FLOOR SERVICE HOLE
62671CCOVER, LOWER BACK PANEL
47419B6010PLUG, HOLE(FOR FRONT BRAKE)
main47419-B6010
9004A35005
main9004A-35005
23 parts on this diagram · 3 diagrams in section
FLOOR PAN & LOWER BACK PANEL for Toyota AGYA/WIGO
This section contains 33 genuine Toyota parts for the FLOOR PAN & LOWER BACK PANEL system of the Toyota AGYA/WIGO. Key components include: PAD, DASH PANEL INSULATOR, NO.2, PAD, DASH PANEL INSULATOR, NO.3, PAD, DASH PANEL INSULATOR, NO.4, MEMBER SUB-ASSY, FRONT FLOOR CROSS, RH, MEMBER SUB-ASSY, FRONT FLOOR CROSS, LH.
