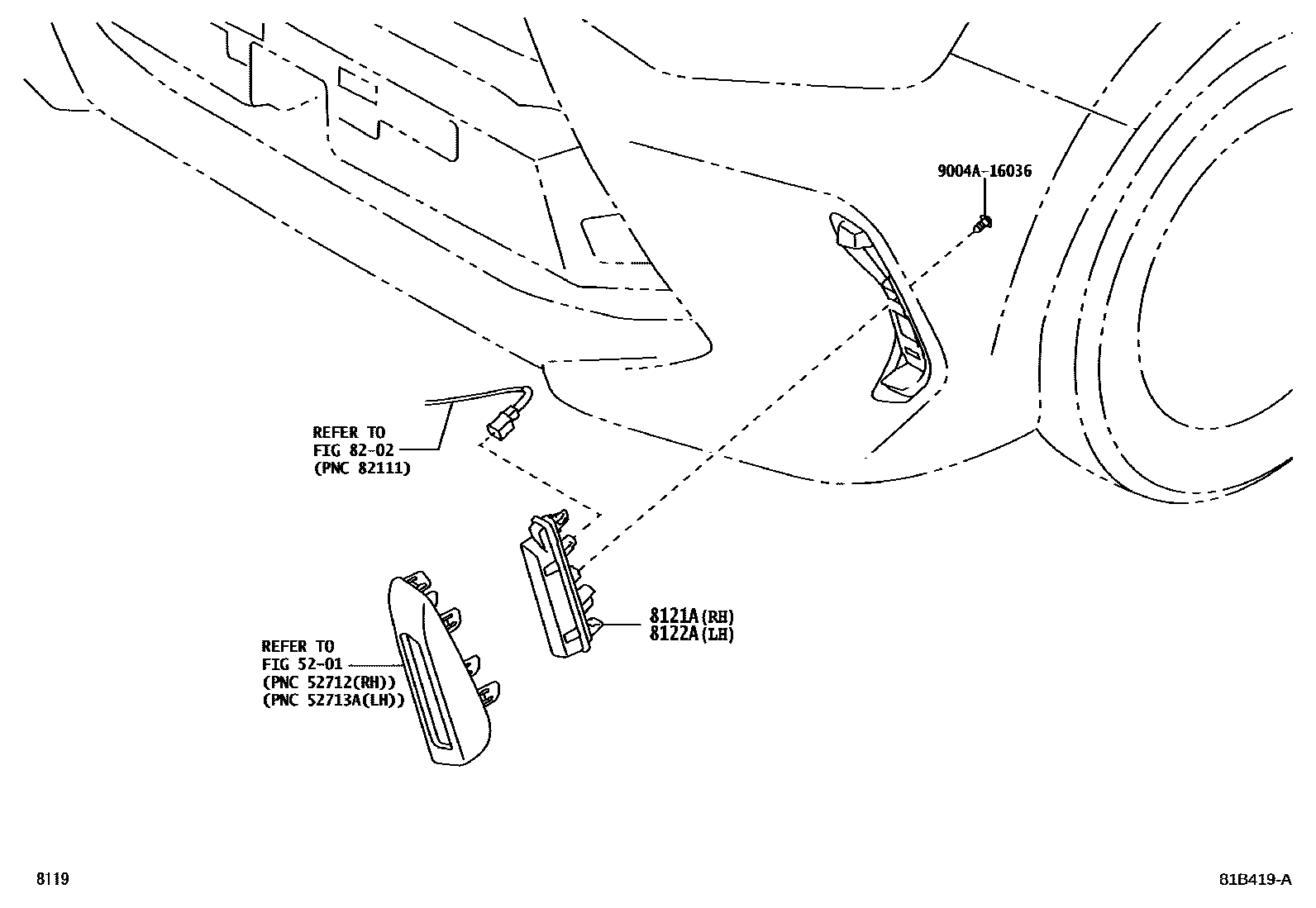

Toyota AGYA/WIGO — DAYTIME RUNNING LAMP OR ILLUMINATION LAMP

5201FRONT BUMPER & BUMPER STAY

→ Go to FIG 52-01

8121ALAMP, LED ILLUMINATION, RH

main812A0-BZ010i202303

8122ALAMP, LED ILLUMINATION, LH

main812B0-BZ010i202303

8202WIRING & CLAMP

→ Go to FIG 82-02

9004A16036

main9004A-16036

5 parts on this diagram · 1 diagram in section

DAYTIME RUNNING LAMP OR ILLUMINATION LAMP for Toyota AGYA/WIGO

This section contains 5 genuine Toyota parts for the DAYTIME RUNNING LAMP OR ILLUMINATION LAMP system of the Toyota AGYA/WIGO. Key components include: FRONT BUMPER & BUMPER STAY, LAMP, LED ILLUMINATION, RH, LAMP, LED ILLUMINATION, LH, WIRING & CLAMP.
