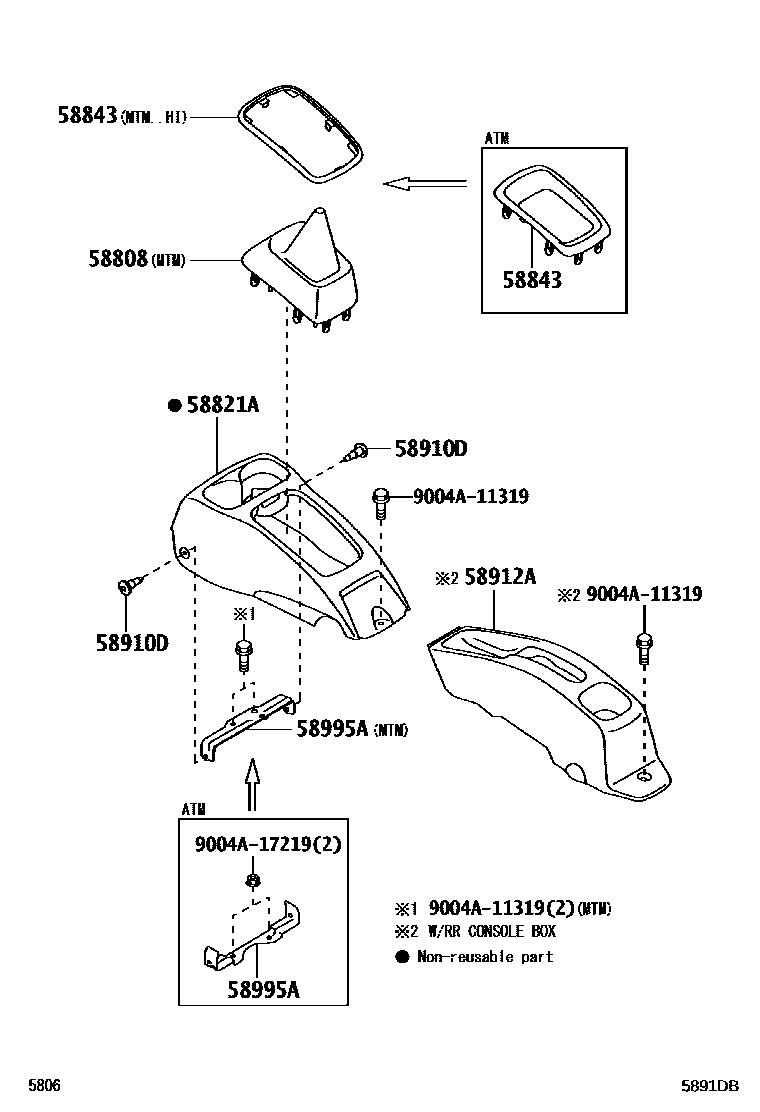

Toyota AGYA/WIGO — CONSOLE BOX & BRACKET

58808COVER SUB-ASSY, SHIFTING HOLE

main58840-BZ090-B0i201212-201704

DK.GRAY,TRIM1#

main58840-BZ090-C0i202003

BLACK,TRIM2#

58821APANEL, CONSOLE

main58821-BZ110-B0i201212-201606

DK.GRAY,TRIM1#

main58821-BZ111-B0i201607-201704

DK.GRAY,TRIM1#

main58821-BZ120-B0i201212-201606

DK.GRAY,TRIM1#

main58821-BZ121-B0i201607-201704

DK.GRAY,TRIM1#

main58821-BZ121-C0i202003

BLACK,TRIM2#

58843BEZEL, SHIFTING HOLE

main58843-BZ110-B0i201212-201704

SILVER,TRIM1#

main58843-BZ110-B1i202003

SILVER,TRIM2#

main58843-BZ130-B0i201212-201704

SILVER,TRIM1#

main58843-BZ130-B2i201704-202003

SILVER,TRIM1#

58910DCLIP(FOR CONSOLE BOX)

main90044-67556-B0×2i201704-201709

DK.GRAY,TRIM1#

main90044-67556-C0×2i202003

BLACK,TRIM2#

58912ABOX, REAR CONSOLE

main58911-BZ050-B0i201212-201704

DK.GRAY,TRIM1#

main58911-BZ130-B0i201704-201912

DK.GRAY,TRIM1#

main58911-BZ130-C0i201912-202003

BLACK,TRIM1#

58995ABRACKET, CONSOLE BOX MOUNTING, NO.1

main58995-BZ050i202003

main58995-BZ060i202003

9004A11319

main9004A-11319

9004A17219

main9004A-17219

8 parts on this diagram · 1 diagram in section

CONSOLE BOX & BRACKET for Toyota AGYA/WIGO

This section contains 8 genuine Toyota parts for the CONSOLE BOX & BRACKET system of the Toyota AGYA/WIGO. Key components include: COVER SUB-ASSY, SHIFTING HOLE, PANEL, CONSOLE, BEZEL, SHIFTING HOLE, CLIP(FOR CONSOLE BOX), BOX, REAR CONSOLE.
