Toyota AGYA/WIGO — CAMERA & REAR MONITOR DISPLAY

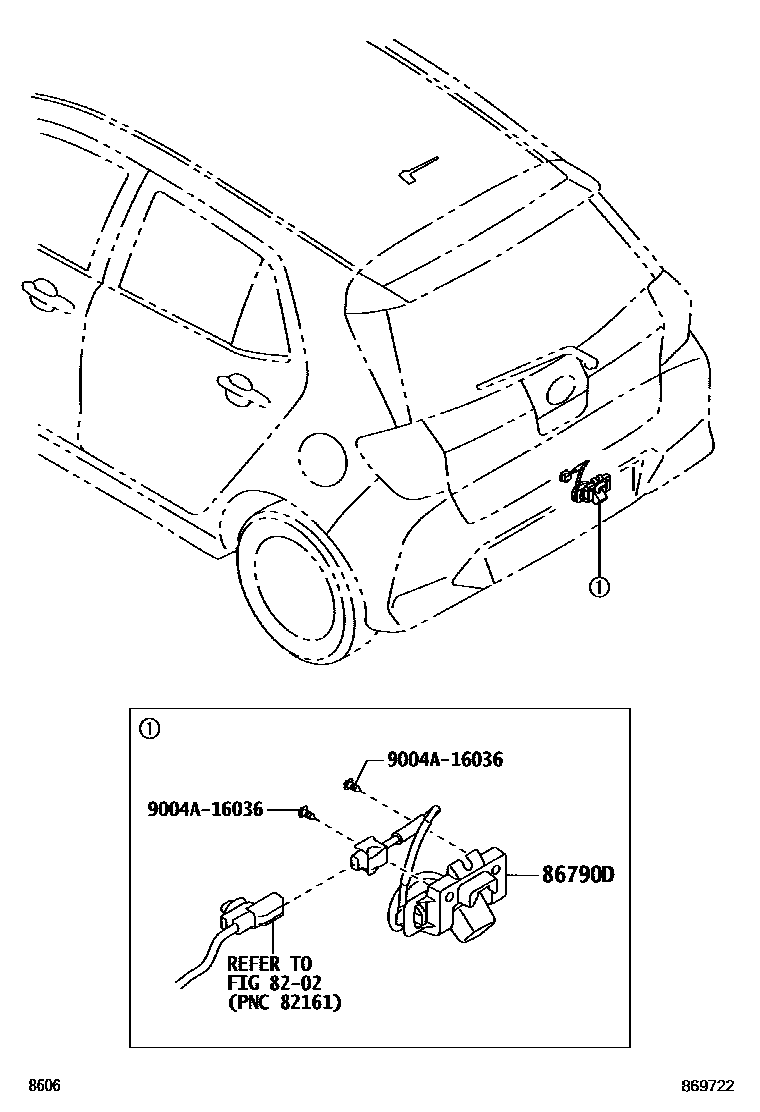

Parts diagram
8202WIRING & CLAMP
→ Go to FIG 82-02
86790DCAMERA ASSY, TELEVISION, RR
main86790-BZ300i202306
DESTINATION PACKAGE(ASIA)-CAMBODIA; DESTINATION PACKAGE(ASIA)-LAOS; DESTINATION PACKAGE(ASIA)-RHD ASIA; DESTINATION PACKAGE(OTHER-LATIN AMERICA(GEN-EXP)
9004A16036
main9004A-16036

3 parts on this diagram · 1 diagram in section

CAMERA & REAR MONITOR DISPLAY for Toyota AGYA/WIGO

This section contains 3 genuine Toyota parts for the CAMERA & REAR MONITOR DISPLAY system of the Toyota AGYA/WIGO. Key components include: WIRING & CLAMP, CAMERA ASSY, TELEVISION, RR.
