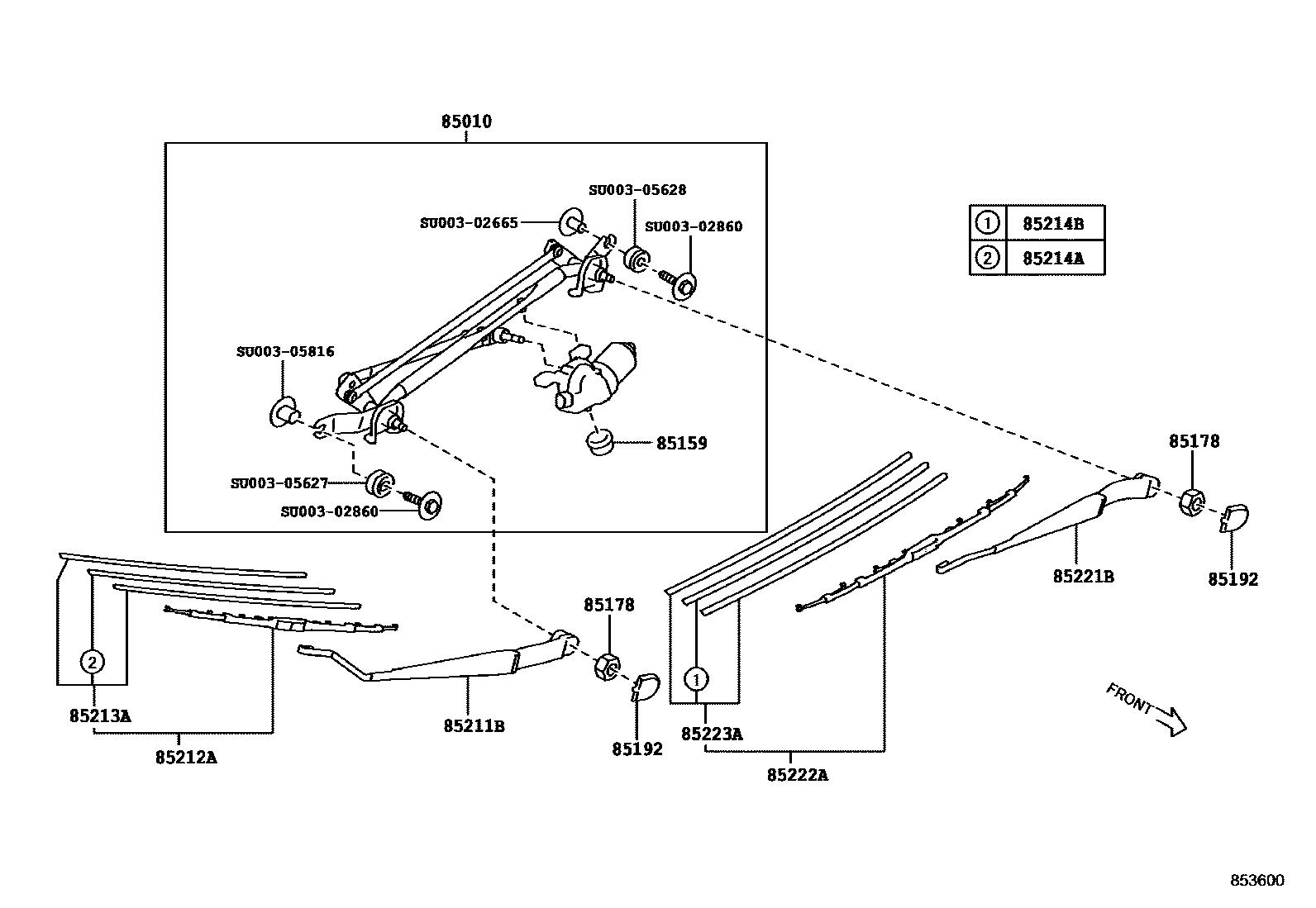

Toyota 86 — WINDSHIELD WIPER

85010MOTOR & LINK ASSY, FR WIPER

mainSU00305710iZN6201607-201711

85159CUSHION, WINDSHIELD WIPER MOTOR

mainSU00302686iZN6201607-201711

85178NUT (FOR FRONT WIPER ARM SETTING)

mainSU00304731×2iZN6201607-201711

85192COVER, WINDSHIELD WIPER ARM

mainSU00302675×2iZN6201607-201711

85211BARM, FRONT WIPER, RH

mainSU00302673iZN6201607-201711

85212ABLADE, FR WIPER, RH

mainSU00302681iZN6201607-201711

sub85212-12470

mainSU00309452iZN6202006-202012

85213ARUBBER, WIPER BLADE, RH

mainSU00304214iZN6201607-201711

85214ARUBBER, WIPER, RH

mainSU00304216iZN6201607-201711

sub85214-53090

85214BRUBBER, WIPER, LH

mainSU00304215iZN6201607-201711

sub85214-53080

85221BARM, FRONT WIPER, LH

mainSU00302670iZN6201607-201711

85222ABLADE, FR WIPER, LH

mainSU00302677iZN6201607-201711

mainSU00309450iZN6202006-202012

85223ARUBBER, FRONT WIPER BLADE, LH

mainSU00304213iZN6201607-201711

SU00302665

mainSU003-02665

SU00302860

mainSU003-02860

SU00305627

mainSU003-05627

SU00305628

mainSU003-05628

SU00305816

mainSU003-05816

17 parts on this diagram · 1 diagram in section
