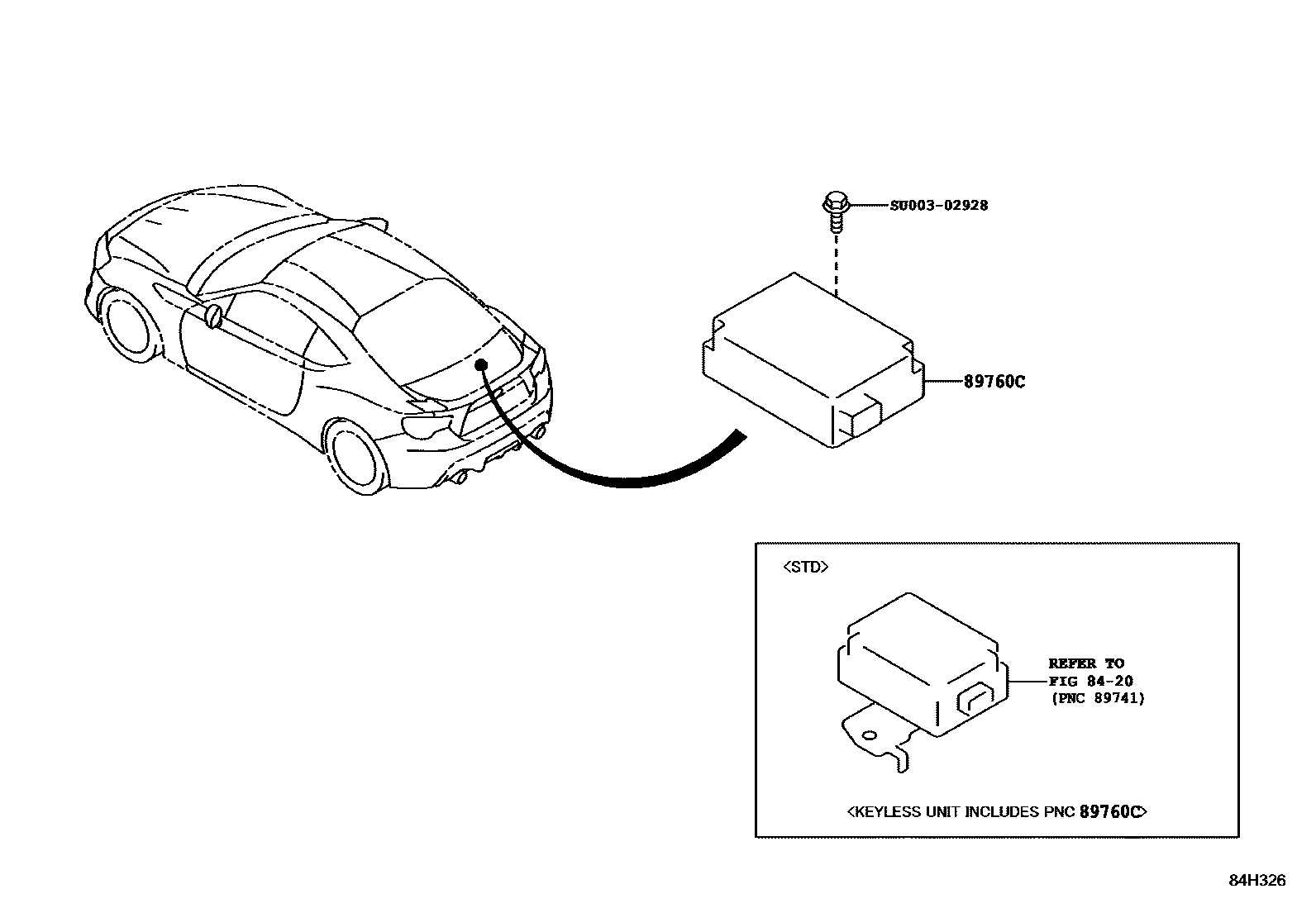

Toyota 86 — TIRE PRESSURE WARNING SYSTEM

8420WIRELESS DOOR LOCK

→ Go to FIG 84-20

89760CRECEIVER ASSY, TIRE PRESSURE MONITOR

mainSU00306074i201607-201711

SU00302928

mainSU003-02928

3 parts on this diagram · 1 diagram in section

TIRE PRESSURE WARNING SYSTEM for Toyota 86

This section contains 3 genuine Toyota parts for the TIRE PRESSURE WARNING SYSTEM system of the Toyota 86. Key components include: WIRELESS DOOR LOCK, RECEIVER ASSY, TIRE PRESSURE MONITOR.
