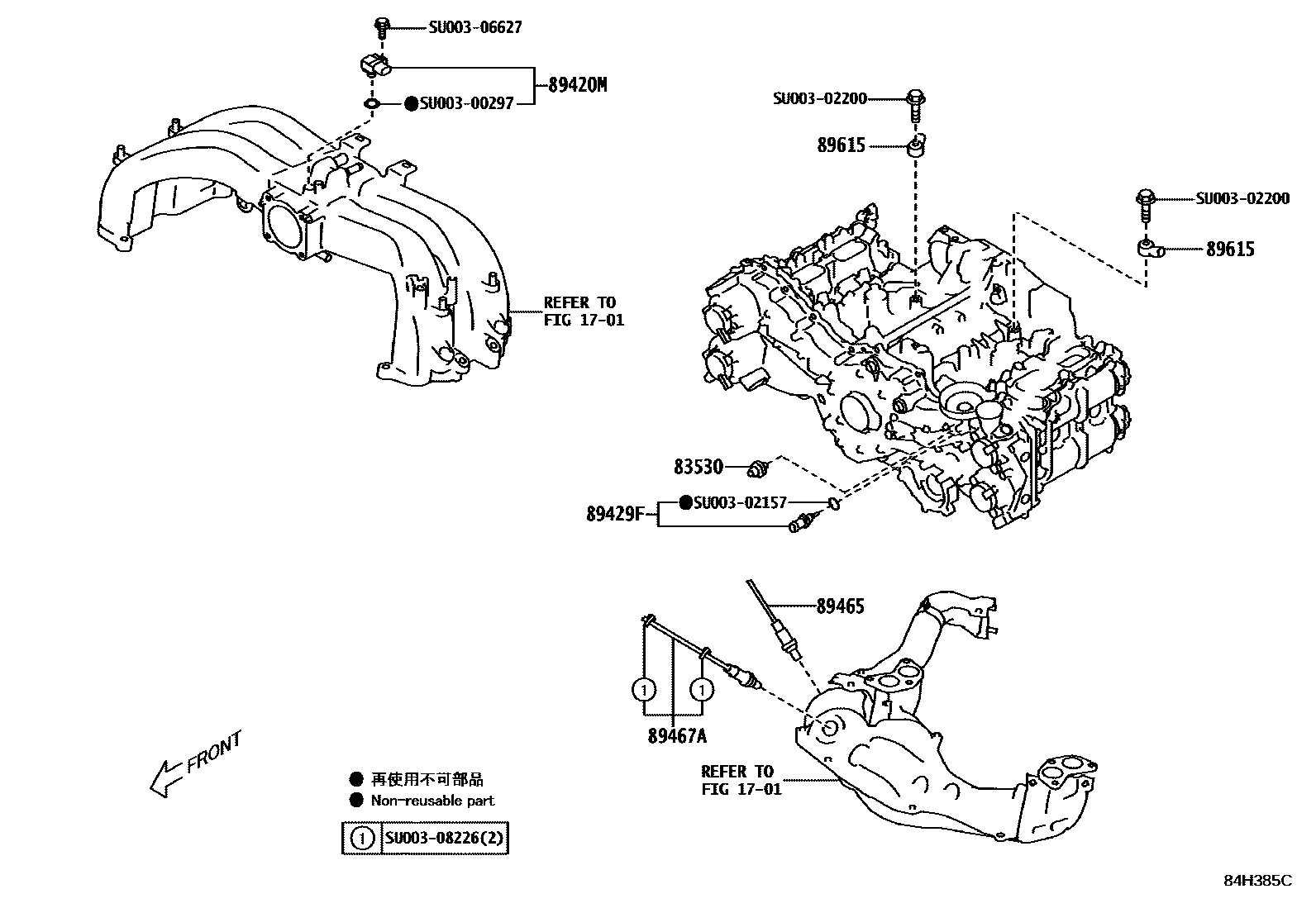

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

mainSU00306104iZN6201607-201711

89420MSENSOR ASSY, AIR PRESSURE

mainSU00300419iZN6201807-201907

89429FSENSOR, TEMPERATURE

mainSU00304714iZN6201807-201907

89465SENSOR, OXYGEN

mainSU00300428iZN6201908-202012

89467ASENSOR, WIDE RANGE AIR FUEL RATIO

mainSU00300425iZN6201908-202012

89615SENSOR, KNOCK CONTROL

mainSU00306707×2iZN6201607-201711

SU00300297

mainSU003-00297

SU00302157

mainSU003-02157

SU00302200

mainSU003-02200

SU00306627

mainSU003-06627

SU00308226

mainSU003-08226

12 parts on this diagram · 14 diagrams in section
