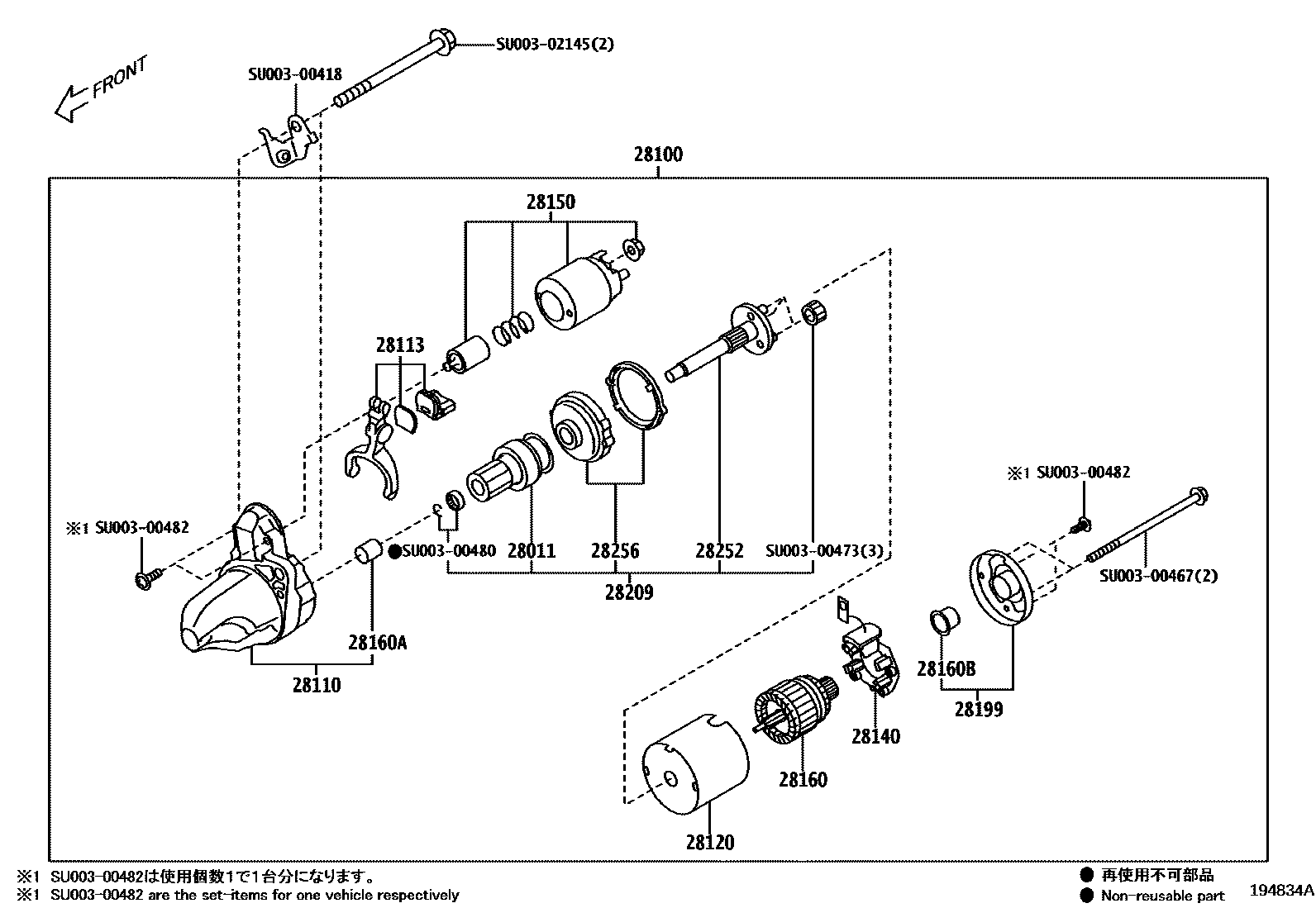

Toyota 86 — STARTER

0001 112V 1.0KW 0002 112V 1.6KW

28011CLUTCH SUB-ASSY, STARTER

mainSU00300456iFA20..ZN6..6F201607-201711

28100STARTER ASSY

mainSU00300450iFA20..ZN6..6FC201908-202012

12V 1.6KW

mainSU00300451iFA20..ZN6..6F201807-201907

12V 1.0KW

28110HOUSING ASSY, STARTER DRIVE

mainSU00300457iFA20..ZN6..6F201807-201907

28113LEVER, STARTER PINION DRIVE

mainSU00300460iFA20..ZN6..6F201607-201711

28120YOKE ASSY, STARTER

mainSU00300452iFA20..ZN6..6F..F201711-201806

mainSU00300453iFA20..ZN6..6FC201807-201907

28140HOLDER ASSY, STARTER BRUSH

mainSU00300478iFA20..ZN6..6F201607-201711

28150SWITCH ASSY, MAGNET STARTER

mainSU00300471iFA20..ZN6..6F201607-201711

mainSU00300472iFA20..ZN6..6FC201908-202012

28160ARMATURE ASSY, STARTER

mainSU00300454iFA20..ZN6..6F201607-201711

mainSU00300455iFA20..ZN6..6FC201807-201906

mainSU00308275iFA20..ZN6..6FC201907-202012

28160ABEARING, STARTER ARMATURE

mainSU00300458iFA20..ZN6..6F..F201711-201806

28160BBEARING, STARTER ARMATURE, NO.2

mainSU00300459iFA20..ZN6..6F201908-202012

28199COVER, STARTER

mainSU00300465iFA20..ZN6..6F201607-201711

mainSU00300466iFA20..ZN6..6FC201908-202012

28209SHAFT SUB-ASSY, STARTER

mainSU00300461iFA20..ZN6..6F201607-201711

28252GEAR, STARTER IDLE

mainSU00300462iFA20..ZN6..6F201607-201711

28256GEAR, STARTER INTERNAL

mainSU00300464iFA20..ZN6..6F201607-201711

SU00300418

mainSU003-00418

SU00300467

mainSU003-00467

SU00300473

mainSU003-00473

SU00300480

mainSU003-00480

SU00300482

mainSU003-00482

SU00302145

mainSU003-02145

20 parts on this diagram · 2 diagrams in section
